Hitachi P-N23NA2 Service Manual

2 Unit installation
RPI(M) - Ducted indoor unit (0.6-6.0)FSN4E(-DU)
SMGB0099 rev.0 - 12/2016
48

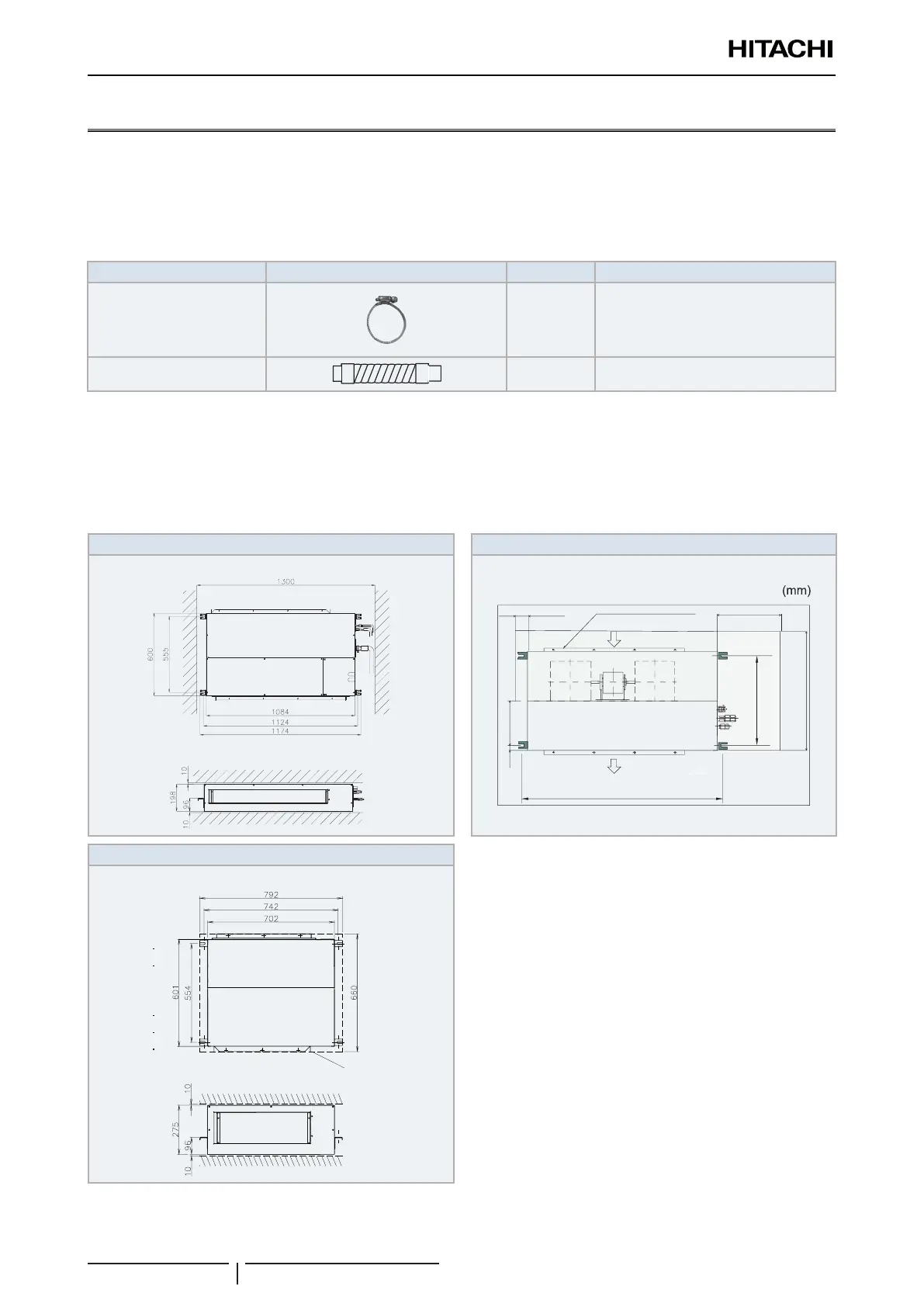

2.5 RPI(M) - Ducted indoor unit (0.6-6.0)FSN4E(-DU)
2.5.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Wire clamp 1
For the drain hose connection.
(only for RPI-(0.8-1.5)FSN4E)
Drain hose 1 For drain connection (only for RPIM)
2.5.2 Unit installation

Initial checks
Check that there is enough space around the unit. Consult the corresponding chapter of the Technical Manual for
information on the unit measurements.
RPI - Ducted indoor unit (0.6-1.5)FSN4E RPI - Ducted indoor unit (2.0-6.0)FSN4E
(mm)
(top view)
Service space of false ceiling
B
700
100 300
27535
A
RPIM - Ducted indoor unit (0.6-1.5)FSN4E(-DU)
Ceiling hole
(mm)
Ceiling hole
