2 Unit installation
RCI - 4-way cassette
SMGB0099 rev.0 - 12/2016
19
2
2.1 RCI - 4-way cassette

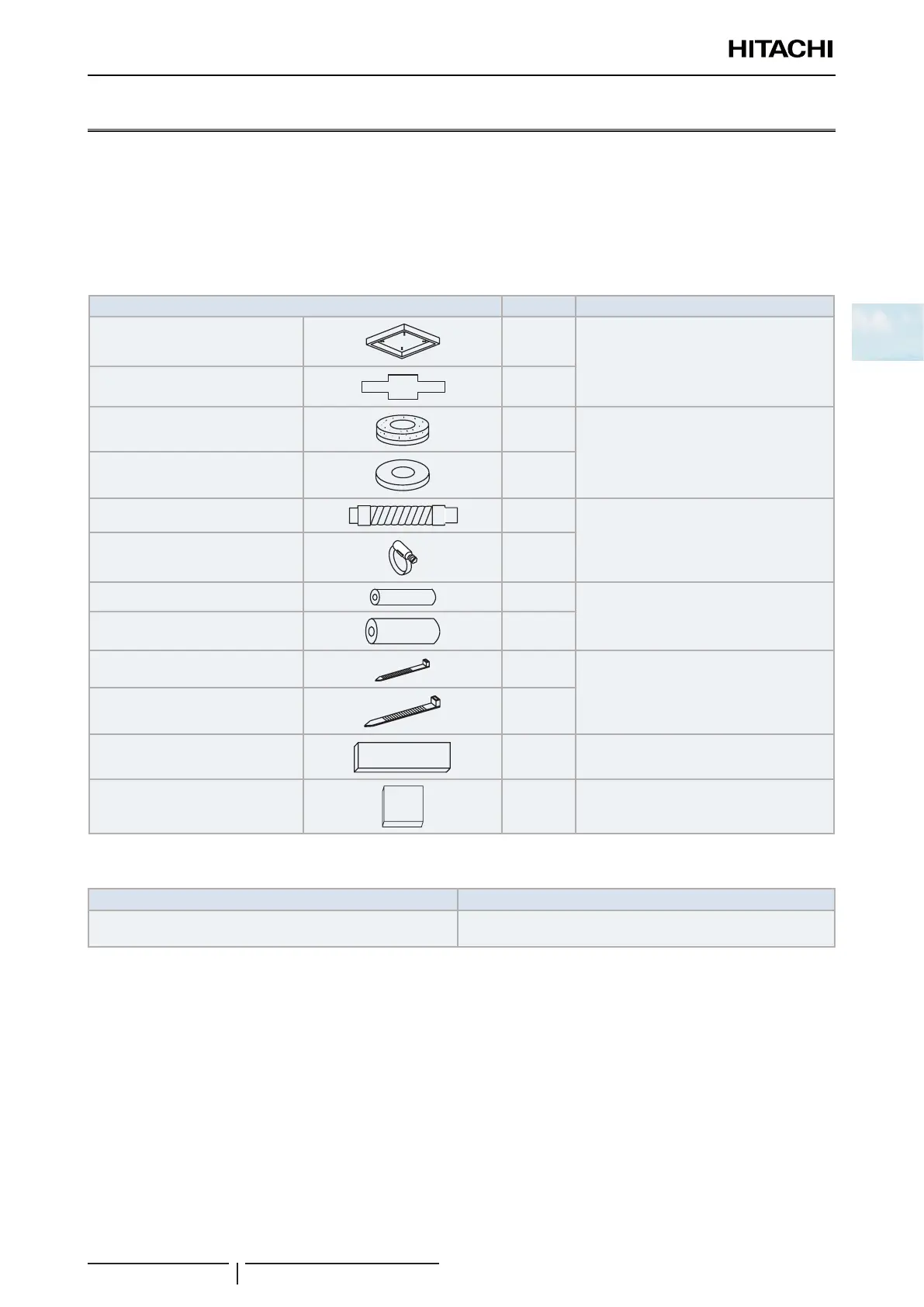

2.1.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
RCI-FSN4 indoor unit
Accessory Quantity Purpose
Pattern (Carton Board) 1
For adjusting space of false ceiling opening
and position of the unit
Checking pattern
(Cut out from the carton board)
1
Washer with insulation (M10) 4
For unit installation
Washer (M10) 4
Drain hose 1
For drain hose connection
Wire clamp 1
Pipe insulation 1
For refrigerant piping connection
Pipe insulation 1
Cord band 2
For xing remote control switch wiring,
louver sensor and insulation of piping
Cord band 6
Insulation (5Tx50x200) 1 For covering wiring connection
Insulation (5Tx270x270) 1 For covering drain connection
Applicable panel
Indoor unit Applicable panel
RCI-(1.0-6.0)FSN4
P-N23NA2
(without motion sensor)
To Next Page
