2 Unit installation
KPI energy and KPI active unit
SMGB0099 rev.0 - 12/2016
67
2
2.10 KPI energy and KPI active unit

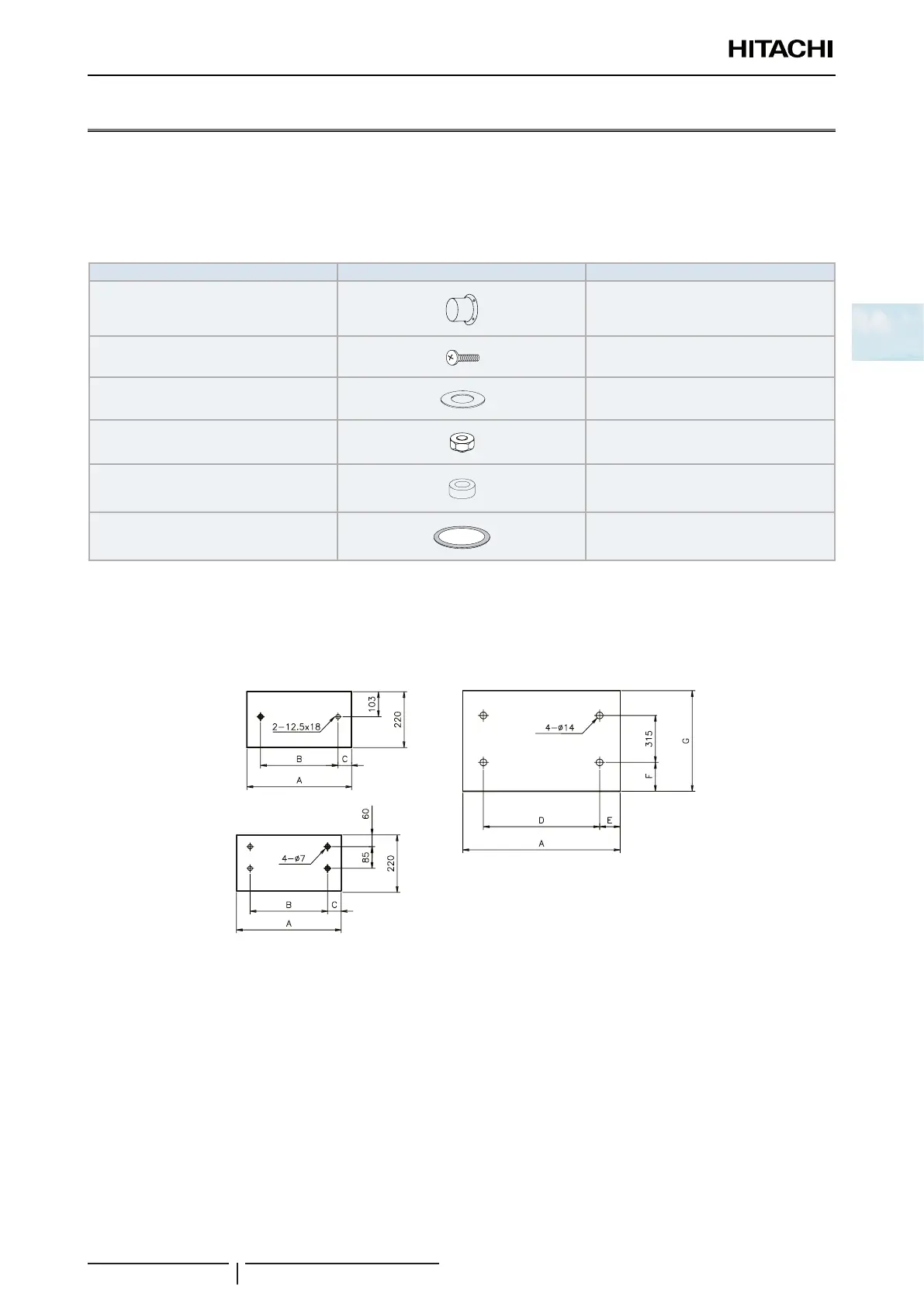

2.10.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accesory Appearance Quantity
Duct adapter 4
Screw 24
Washer 8
Nut 12
Vibration Abs.Rubber 4
Rubber duct joint 4
2.10.2 Unit installation

Initial checks
Fixing onto oor using wood screws
(2-M8) (View from top side)
Fixing onto wall
(View from front side)
Fixing onto oor using wood screws
(4-M5) (View from top side)
