Hitachi P-N23NA2 Service Manual

9 Servicing
RPK-FSN(H)3M - Wall mounted
SMGB0099 rev.0 - 12/2016
331
9

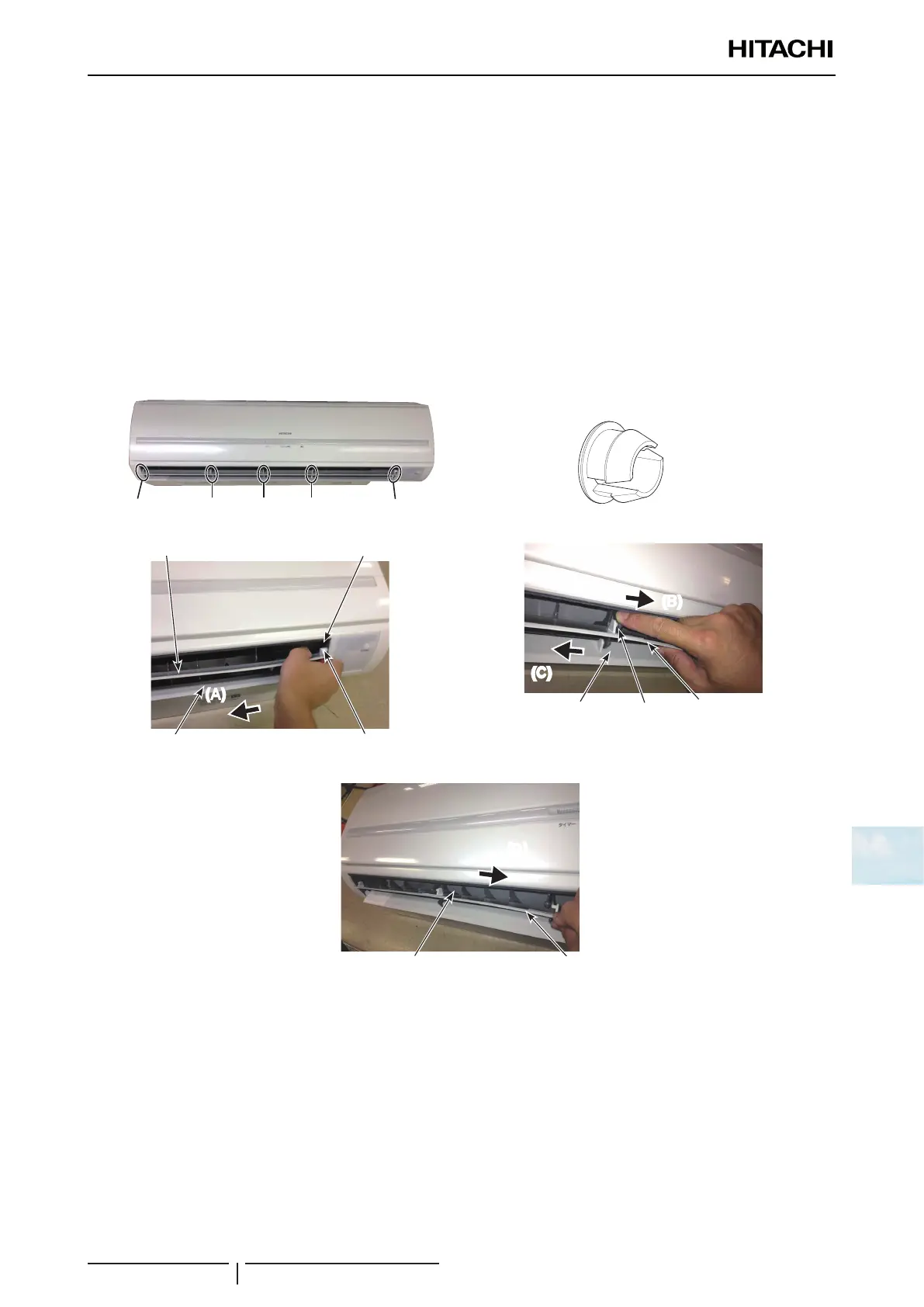

9.9.14 Removing Horizontal Louver

For RPK-(0.6-1.5)FSN(H)3M
Do not remove the horizontal louver when removing the drain pan. Removing the horizontal louver will result in
component failures.

For RPK-(2.0-4.0)FSN(H)3M
Do not lose the bearings for each shaft at the right, middle, left and far left.
1 Open the upper and lower horizontal louver slightly.
2 Slightly bend the upper horizontal louver and pull it in the direction of the arrow (A) to remove the shaft at the far right
from the drain pan.
3 As slightly bending the center pole at the right side of the drain pan in the direction of the arrow (B), pull the upper
horizontal louver in the direction of the arrow (C) to remove the shaft at the right from the drain pan.
Ꮐ┵ゲ Ꮐ஥ゲ ᄩゲ ฝ஥ゲ ฝ┵ゲ
Far Left
Shaft
Left
Shaft
Middle
Shaft
Right
Shaft
Far Right
Shaft
Far left
shaft
Far right
shaft
Right
shaft
Middle
shaft
Left
shaft
Bearing
Bearing
Upper Louver
Lower Louver
Drain Pan
Far Right Shaft
(A)
Far right shaftLower louver
Upper louver Drain pan
Lower Louver Upper Louver
Center Pole
at Right Side
of Drain Pan
(C)
(B)
Lower louver
Upper louver
Center pole
at right side of
drain pan
4 Pull out the upper horizontal louver in the direction of the arrow (D) to remove it.
Drain Pan Upper Louver
(D)
Upper louver
Drain pan
5 Remove the lower horizontal louver in the same procedure as the upper horizontal louver.
6 When mounting the horizontal louvers, mount the louvers in the reverse procedure.
? NOTE
When mounting the horizontal louvers, insert the D-cut portions at the far right shafts of the louvers into the AS Motor shafts.
