9.1.8 Removing Drain-Up Mechanism
1 Remove the drain pan according to the item “9.1.6 Removing Drain Pan”.
2 Remove the insulation which attaches the wires for oat switch and drain-up mechanism together.
3 Cut the plastic band xing the wires at the xing plate for oat switch.
4 Cut the hose band for drain hose by nipper, and remove the drain hose from the drain-up mechanism.
5 Remove two (2) xing screws for drain-up mechanism. When removing, hold the drain-up mechanism by hand in
order not to fall.
6 Remove the drain-up mechanism.
? NOTE
When reassembling, wrap up the wires for oat switch and drain-up mechanism together by the insulation Fix securely them to the
original position. When attaching the drain pan again, pay attention not to pull the wires strongly. Otherwise, the insulation attaching
at the cabinet may be peeled.

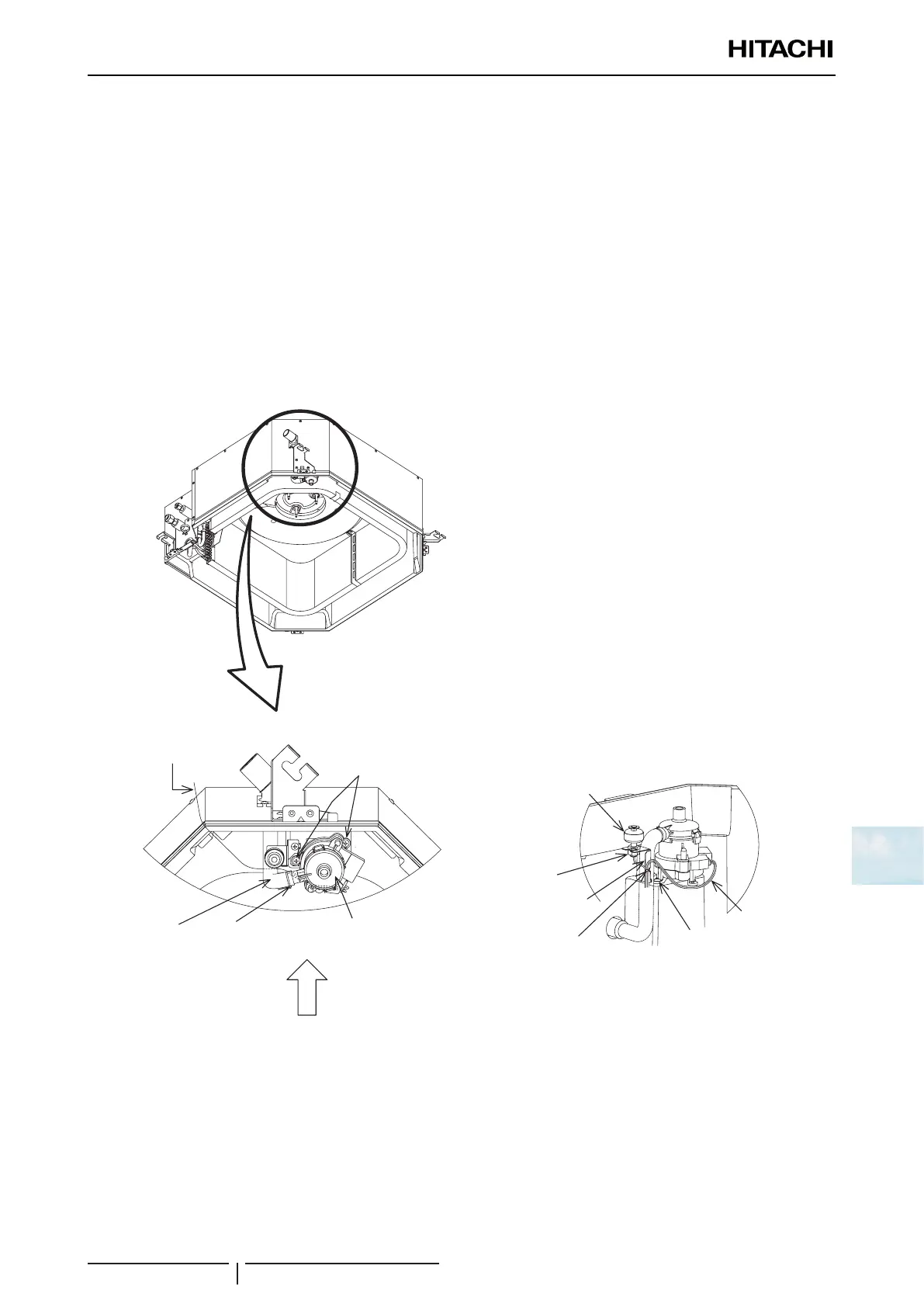

Wiring
Fixing screws
Float switch
Drain-up mechanism
Hose band
Drain hose
Nut
Fixing plate for
oat switch
Plastic band
Lead wires
Screw for xing
plate
VIEW FROM P
To Next Page
