2 Unit installation
Optional accessories
SMGB0099 rev.0 - 12/2016
93
2

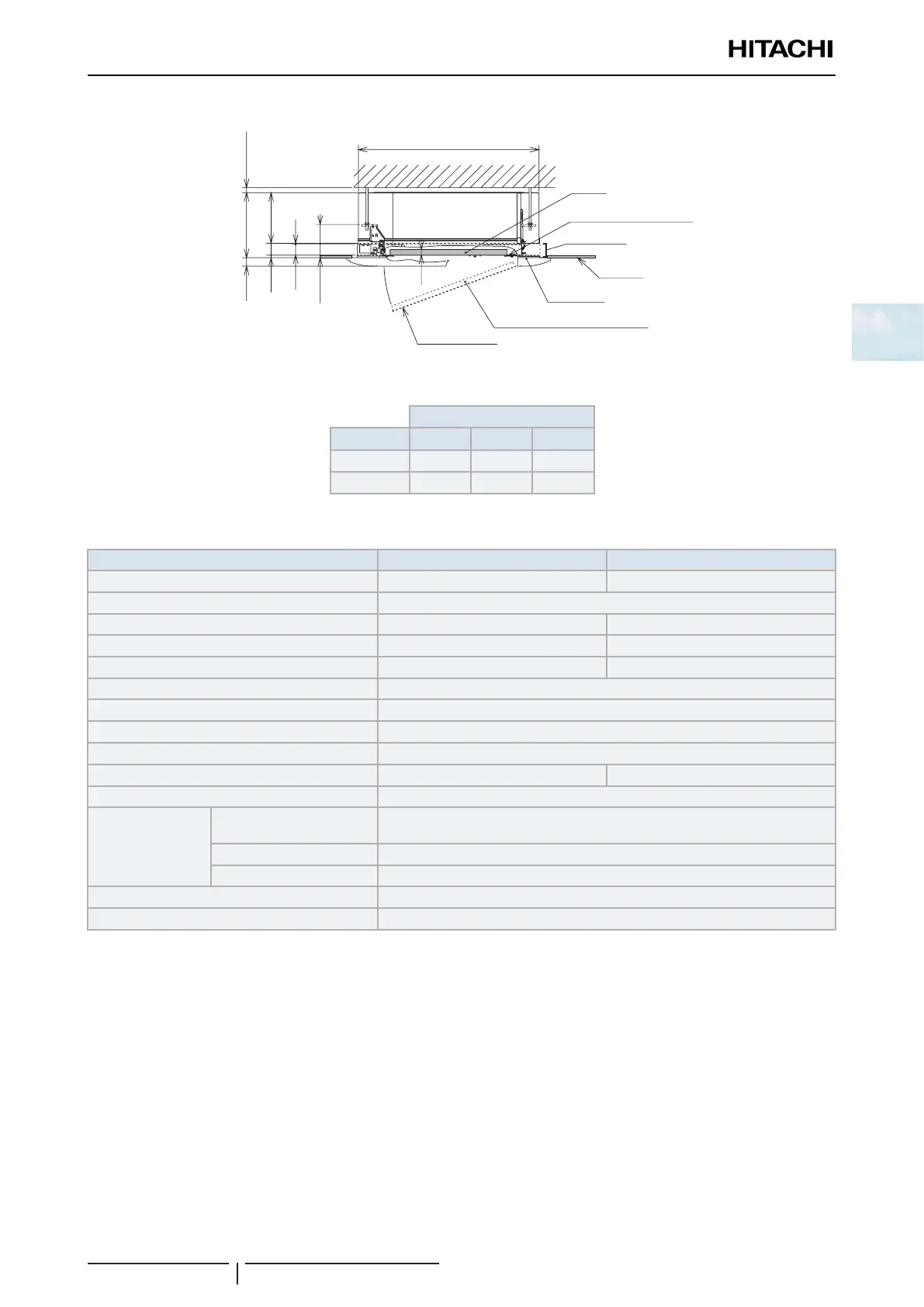

The position of the deodorising lter is shown below:
12 55 d
50 5
155
840
b
Filter
Filter holder (resin)*
Filter box
Ceiling
Air panel
Long life lter (F-160L-K)
Air inlet grille
Indoor unit
* Insert the air lter into the lter box 
and x the air lter by lter holder.
Dimension
Model b c d
1.0 - 2.5 25 303 236
3.0 - 6.0 45 353 286
Specications
Part F-71L-D1 F-160L-D1
Applicable indoor unit model 1.0 to 2.5 3.0 to 6.0
Dust collection efciency (%) 50 (gravimetric method)
Air ow rate (m
3
/min) 22.0 35.0
Initial pressure loss Pa 19.0 36.0
Final pressure loss Pa 48.0 78.0
Filter/frame colour Pink/Silver
Working life 3 years (with maintenance every 3-6 months)
Reuse Available (dried by sunlight)
(*1)
Cleaning Available (washed with water)
(*2)
Weight (kg) 0.8 1.2
Performance Absorbs smoke, body odour, etc.
Filter material
Antibacterial ber
Acrylate Fiber 1 (Absorbed ber for basic gas)
Acrylate Fiber 2 (Absorbed ber for acidic gas)
Reinforce net PP/PE
Reinforce sheet PP
Applicable lter box (option) B-160H2
Restrictions of use Washing with detergents is forbidden
(*1)
 This is the standard working life of the lter and its duration may vary depending on the conditions of use. Clean the 
lter with water or neutral detergent.
(*2)
 Wash the lter with water or neutral detergent to avoid reducing the absorption capacity.
