2 Unit installation
RCD - 2-way cassette
SMGB0099 rev.0 - 12/2016
35
2
2.3 RCD - 2-way cassette
2.3.1 Accessories supplied with the unit

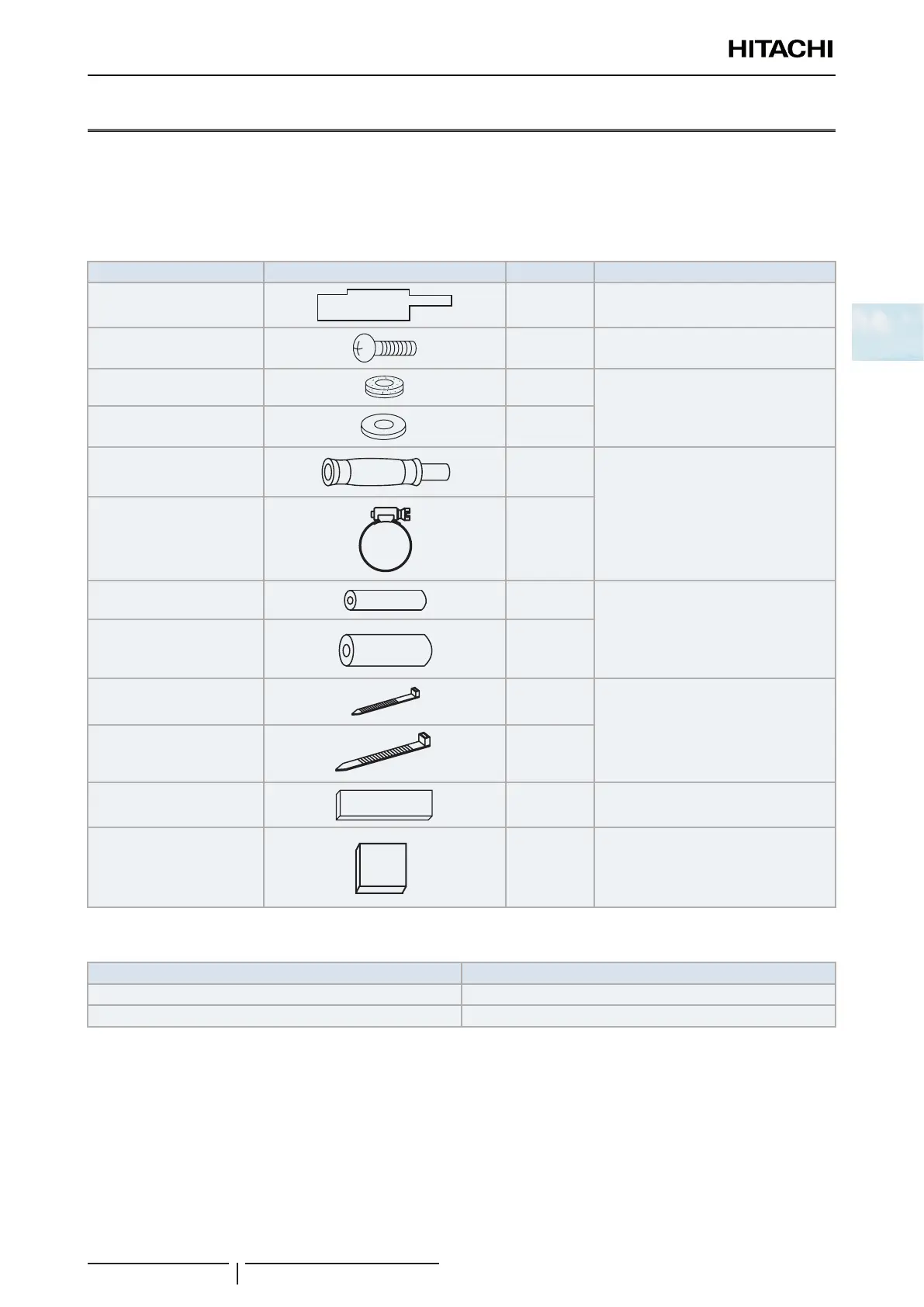

Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Pattern
(Carton board)
1
To adjust the space of false ceiling
opening and position of the unit.
Cross recessed head screws
(M6)
6 For tting paper pattern.
Washer with insulation
material (M10)
4
For Unit Installation.
Flat washer (M10) 4
Drain hose 1
For the Drain hose connection.
Hose clamp 1
Pipe Insulation 1
For the Refrigerant pipe connection.
Pipe Insulation 1
Cord clamp 2
To x the Remote control switch and 
refrigerant pipe insulation
Cord clamp 6
Insulation (5Tx50x200) 1 For covering wiring connection
Insulation (5Tx270x270) 1 For covering drain connection
Applicable air panel
Indoor unit Applicable air panel
RCD-(0.8-3.0) P-AP90DNA
RCD-(4.0-6.0) P-AP160DNA
