9 Servicing
RPC-(1.5-6.0)FSN3 - Ceiling type
SMGB0099 rev.0 - 12/2016
282

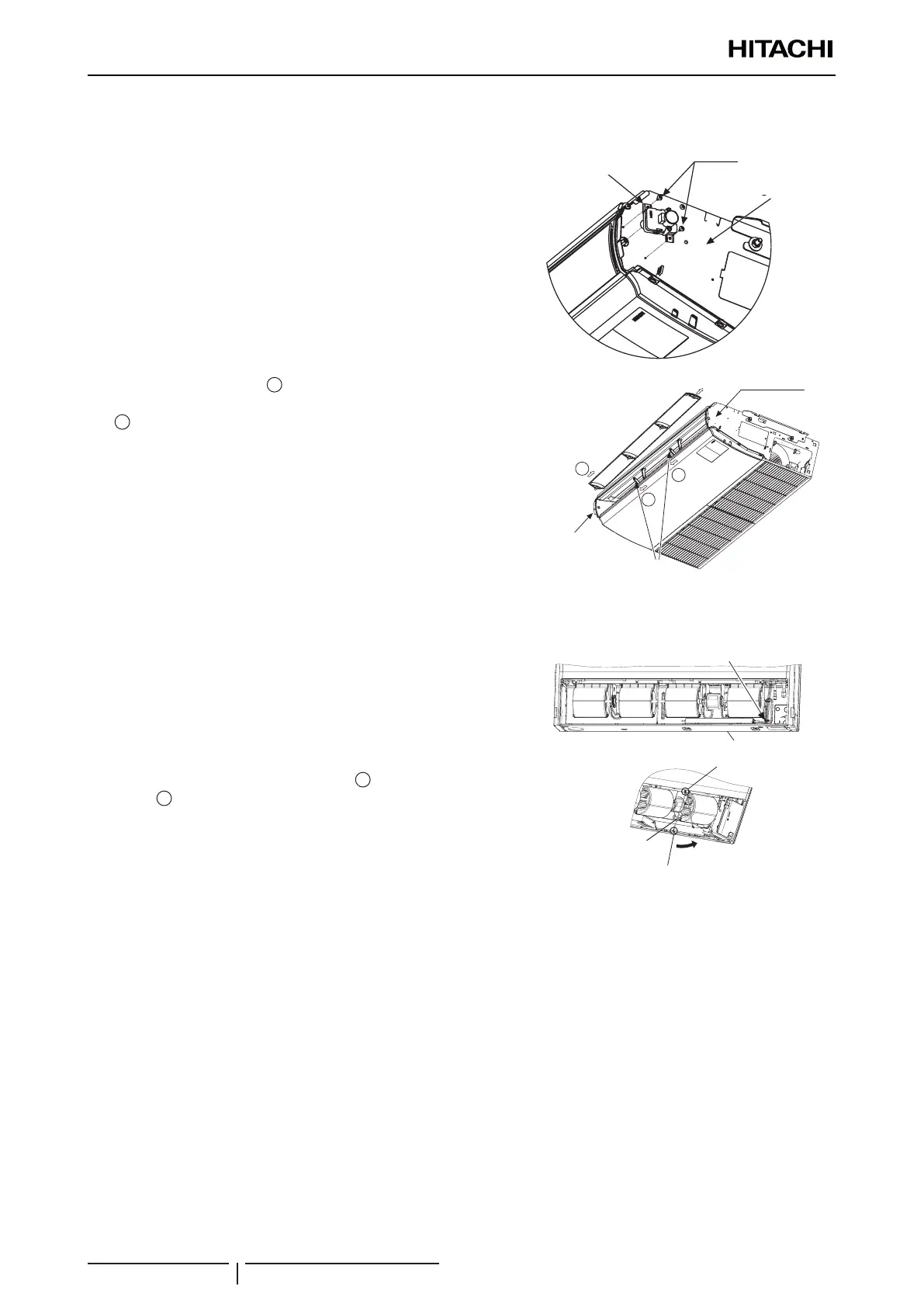

9.5.3 Removing Louver
1 Remove the side covers according to “9.5.2 Removing Side
Cover”.
2 Remove 2 screws xing AS motor assembly to the right side
plate.
? NOTE
The louver includes the linkage brackets.
AS Motor Assembly
Screws
Right Side Plate
Right side plate
Screws
AS motor assembly
3 Bend the louver support (
1
) slightly and remove the louver from
the louver support. Bend the louver in the direction of the arrow
(
2
). Remove the louver shaft on the opposite side of the AS
motor and then pull out the louver.
2
1
AS Motor Side
Opposite Side
of AS Motor
Louver Support
1
Louver support
AS motor side
Opposite side of
AS motor
9.5.4 Removal of the fan motor
1 Open the air inlet grille as indicated in chapter “9.4.1 Removal
of the air lter”.
2 Open the air inlet grille downward according to the item “9.5.1
Removing Air Filter and Air Inlet Grille”.
3 Remove the lead wires from the cord clamp on the plate
(1 portion). (Only for RPC-(2.5/3.0)FSN3)
4 Remove the xing screw for supporter (
1
) and loosen the xing
screw (
2
). Then rotate the supporter in the direction of the
arrow.
Cord Clamp
Plate
Supporter
Screw
1
2
Screw
Cord clamp
Plate
Screw 
Supporter
Screw 
