2 Unit installation
RPI - Ducted indoor unit (8/10)FSN3E(-f)
SMGB0099 rev.0 - 12/2016
53
2
2.6 RPI - Ducted indoor unit (8/10)FSN3E(-f)
2.6.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Piping adapter
(Ø19.05 x Ø25.4)
(For 8 HP only)
1
Reducer boss for refrigerant piping on
the indoor unit
Piping adapter
(Ø22.2 x Ø25.4)
(For 10 HP only)
Piping adapter
(Ø9.52 x Ø12.7)
(For 10 HP only)

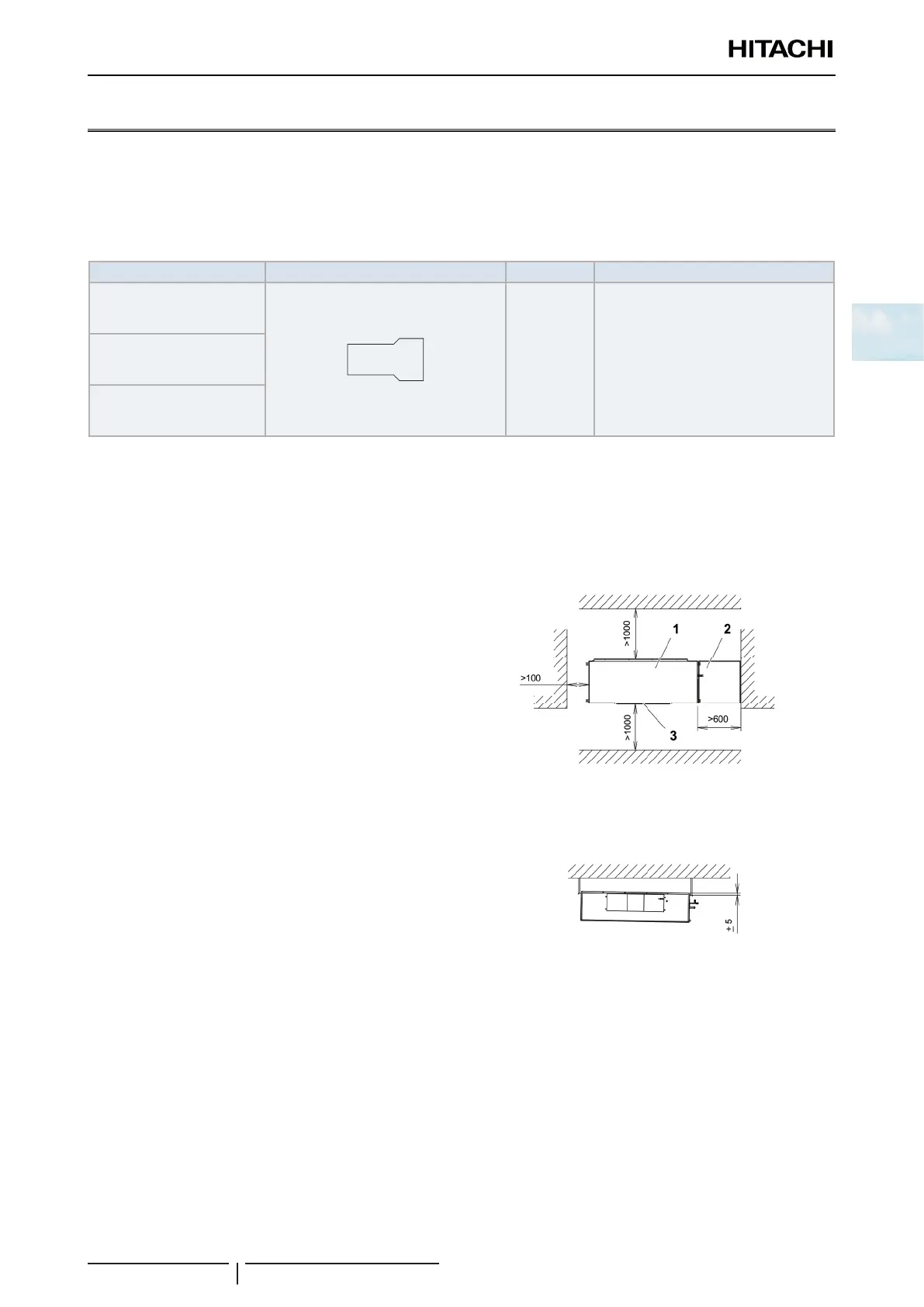

2.6.2 Unit installation
Initial checks
RPI - Ducted indoor unit (8.0/10.0)FSN3E(-f)
1 Rear.
2 Unit inspection and maintenance access.
3 Front side.
Check that there is enough space around the unit. Consult
the corresponding chapter of the Technical Catalogue for
information on the unit measurements.
Before starting installation, plan the direction of the pipes
and wiring required. Also bear in mind that there must
be enough space around the unit for installation and
maintenance.
Check that the ceiling surface where the unit is to be
installed is completely horizontal.
Check that the drain hose can be installed maintaining the
necessary down-slope.
