9 Servicing
RCIM-(0.6-2.5)FSN4(E) - 4-way cassette (compact)
SMGB0099 rev.0 - 12/2016
261
9

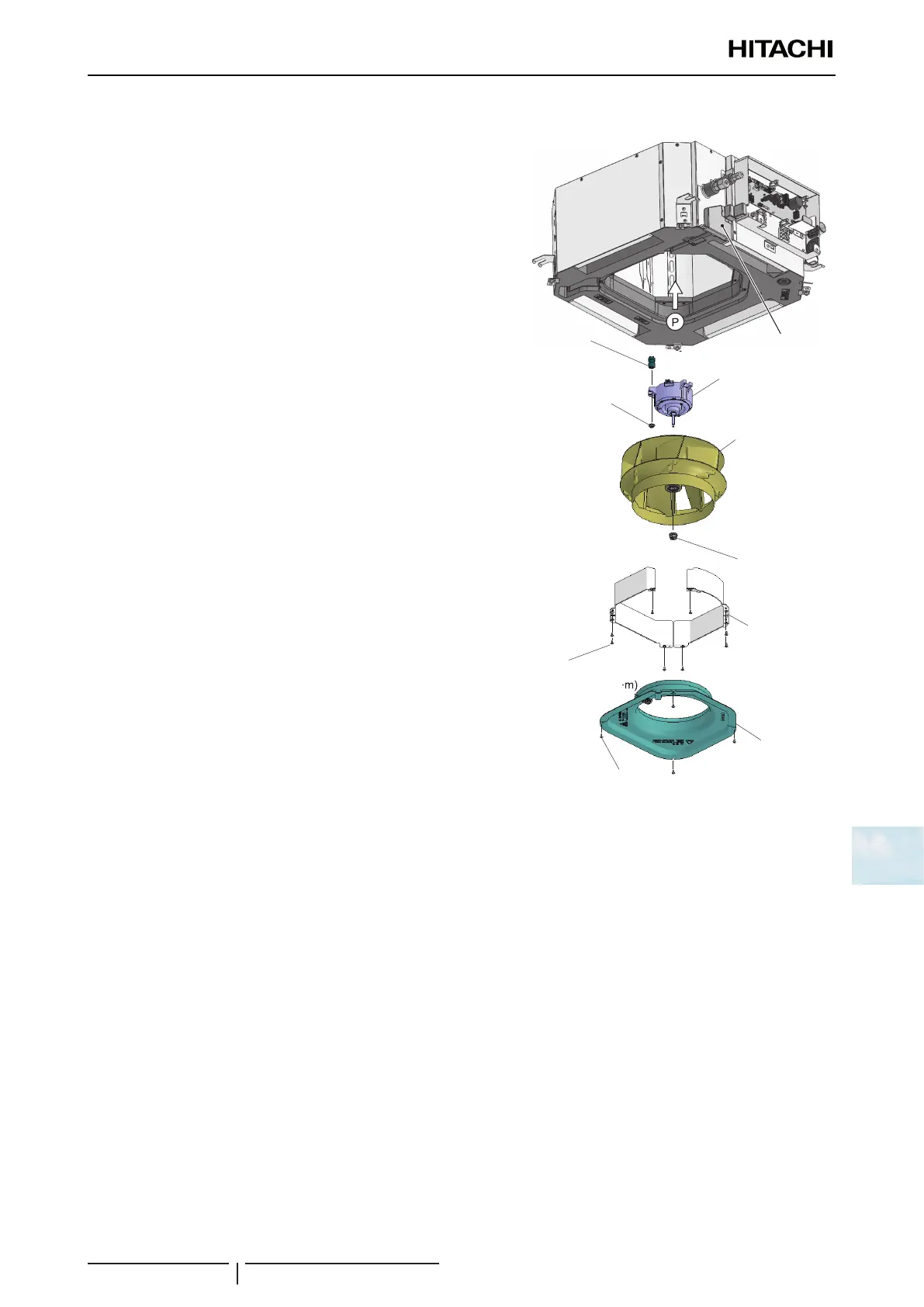

9.2.5 Removal of the fan runner and the fan motor
1 Remove the air inlet grille as indicated in “9.3.1 Removal of the
Air lter and the Air inlet grille”.
Vibration
absorver
(3 pcs.)
Fixing nut
(3 pcs.)
Fan motor
Fan runner
Bell-mouth
Fixing nut
Fan guide
Fixing screw (x8)
Fixing screw (x4)
Wire cover
2 Remove the bell-mouth. Remove the 4 xing screws attaching
the bell-mouth to the drain pan and remove the bell-mouth.
3 Removing the fan guide. Remove the 8 xing screws and
remove the drain pan.
4 Removing the Fan runner and the Fan Motor
a. Remove the nut and the washer xing the fan runner.
b. Remove 3 nuts xing the fan motor.
c. Then remove the fan motor.
? NOTE
When reassembling these parts, tighten the nuts with a tightening
torque of 8N-m.
To Next Page
