9 Servicing
RPI-(0.6-6.0)FSN4E - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
291
9

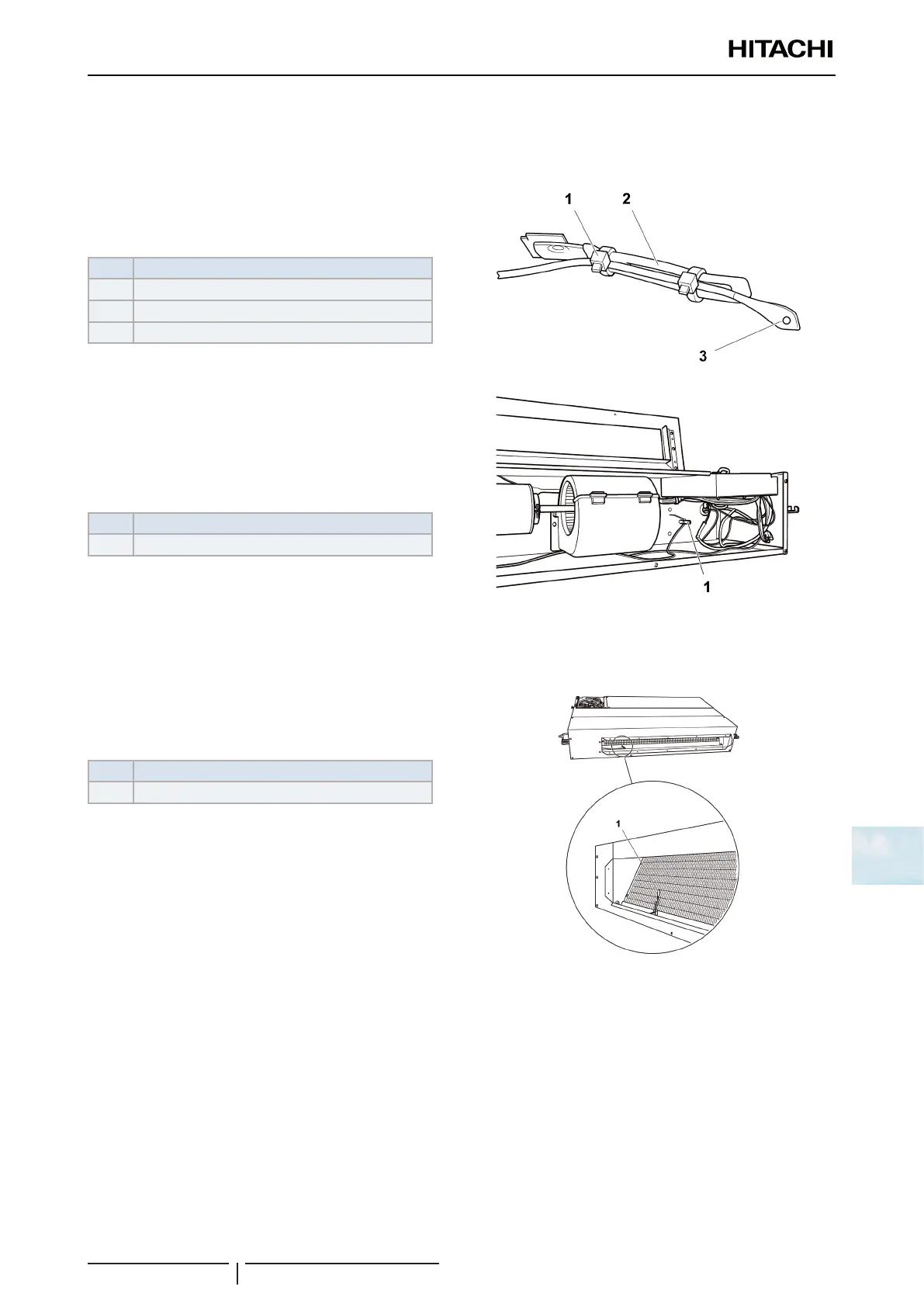

9.6.2 Removal of the inlet and outlet air thermistors
Inlet air thermistor
? NOTE
Disconnect and remove the thermistor. The thermistor is located on
the outlet side of the unit.
Nº Part
1 Tie
2 Cable clamp
3 Thermistor
? NOTE
To disconnect and remove the appropriate thermistor, previously
see the chapter corresponding to the wiring diagrams in this Manual.
1 Remove the screws securing the rear cover of the unit.
2 Disconnect and remove the thermistor.
Nº Part
1 Location of the air inlet thermistor
Outlet air thermistor
? NOTE
To disconnect and remove the appropriate thermistor, previously
see the chapter corresponding to the wiring diagrams in this Manual.
Nº Part
1 Air outlet thermistor
To Next Page
