9 Servicing
RPF(I)-(1.0-2.5)FSN2E - Floor and Floor concealed type
SMGB0099 rev.0 - 12/2016
333
9

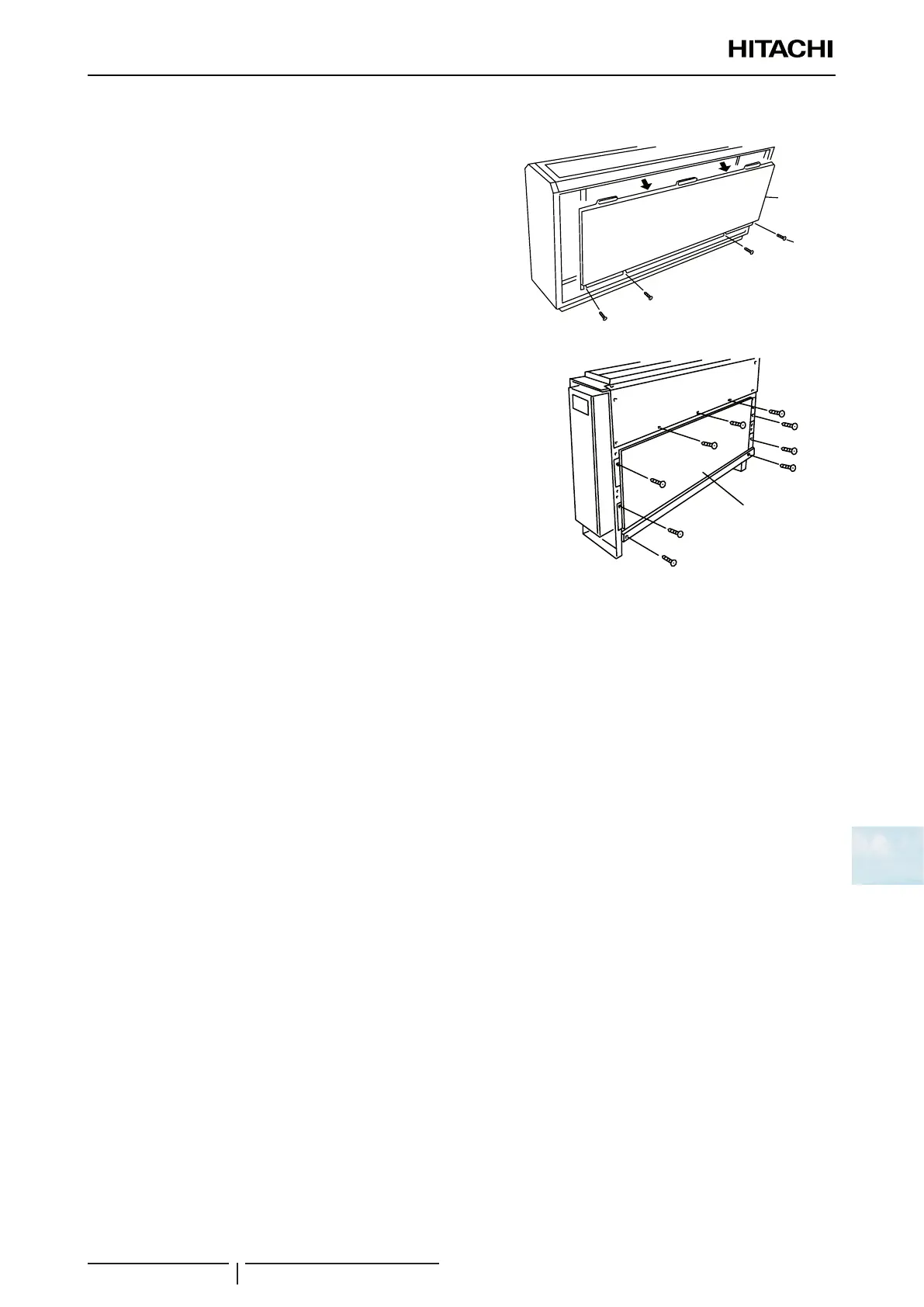

9.10.4 Removal of the front panel
1 Remove the central panel air lter in line with the instructions
given in chapter “9.10.2 Removal of the air lter”.
2 Remove the screws from the lower part of the front panel.
? NOTE
• RPF-(1.0-2.5)FSN2E: 4 screws.
• RPFI -1.0FSN2E: 9 screws.
• RPFI -1.5FSN2E: 10 screws.
Front
panel
Screw
Screw
3 Remove the 11 set screws and remove the front panel.
Front lower panel
9.10.5 Removal of the fan motor
1 Remove the air inlet grille as indicated in chapter “9.10.1 Removal of the air inlet grille”.
2 Remove the air lter as indicated in section “9.10.2 Removal of the air lter”.
3 Remove the four set screws from the fan motor assembly plate and remove it.
4 Disconnect the wiring from the fan motor connector. Remove the wiring board and the connector.
5 Remove the cover by pressing the four attachment points inwards.
6 Loosen the bolts using a wrench.
7 Remove the securing plate.
8 Remove the fan motor by sliding it backwards.
? NOTE
Be careful when releasing the fan motor, as it could fall.
