RPI-(8.0-20.0)FSN3(P)E(-f) - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
296
? NOTE
To disconnect and remove the appropriate thermistor, previously see the
chapter corresponding to the wiring diagrams in this Manual.
Nº Part
1 Tie
2 Cable clamp
3 Thermistor
Outlet air thermistor

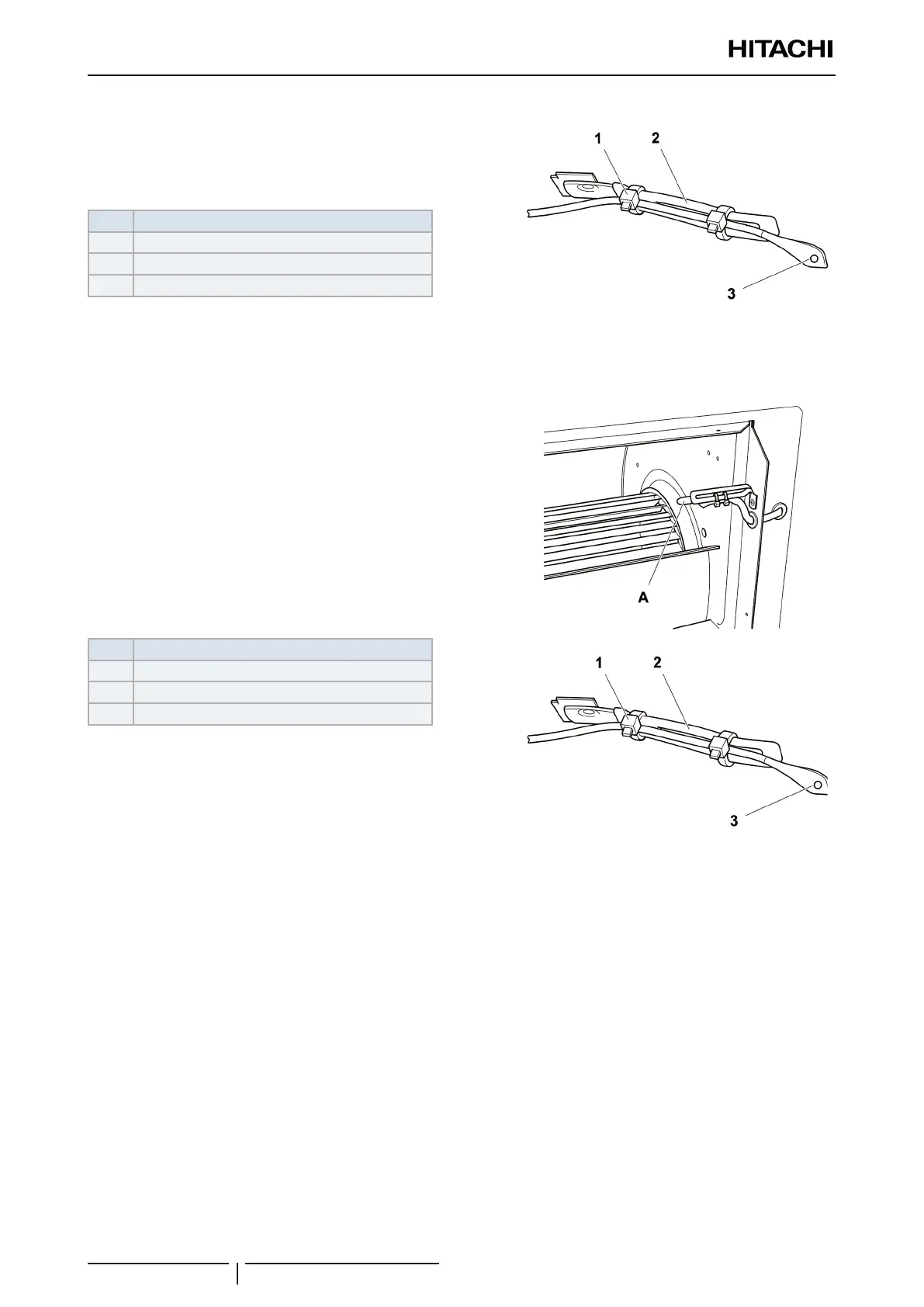

The outlet air thermistor -B- is located on the right-hand side of the
air outlet from the unit.
1 Remove the electrical box cover as indicated in chapter “9.7.1
Removal of the electrical box cover”.
2 Disconnect and remove the thermistor (x2 thermistors in RPI-
(16.0/20.0)FSN3PE(-f)).
? NOTE
To disconnect and remove the appropriate thermistor, previously see the
chapter corresponding to the wiring diagrams in this Manual.
Nº Part
1 Tie
2 Cable clamp
3 Thermistor
