9 Servicing
RPK-FSN(H)3M - Wall mounted
SMGB0099 rev.0 - 12/2016
323
9

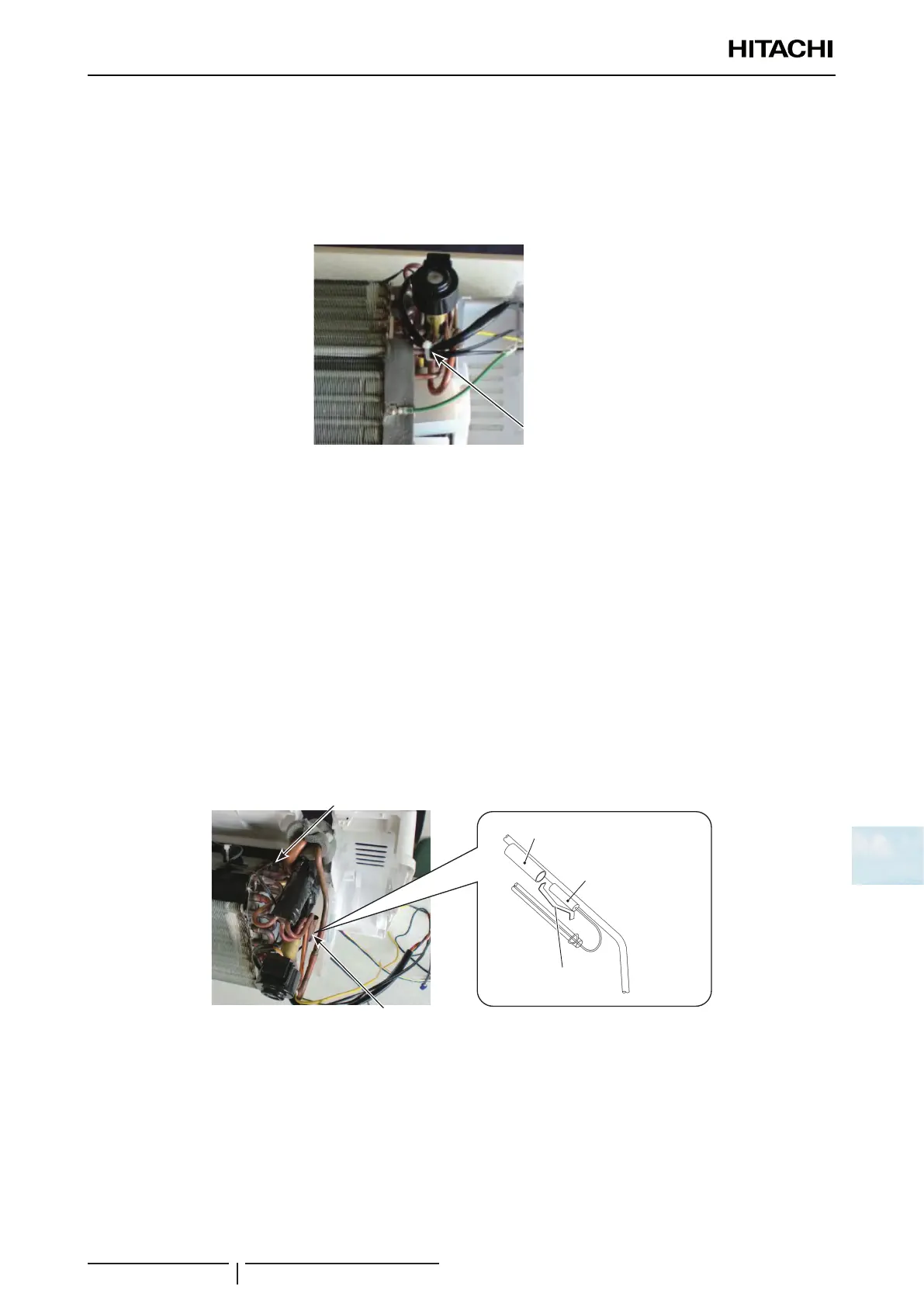

9.9.11 Removing Thermistors for Freeze Protection, Gas Pipe, Outlet Air and Inlet Air
For RPK-(0.6-1.5)FSN(H)3M
1 Remove the front panel according to the “9.9.2 Removal of the front panel” chapter.
2 Remove the electrical box according to the “9.9.7 Removing Electrical Box” chapter.
3 Remove the plastic band (A) clamping each thermistor.
Plastic band (A)
4 Removing Freeze Protection Thermistor
a. The freeze protection thermistor is xed by thermistor pipe with a thermo clip. Remove the thermistor from the
thermo clip.
b. When attaching the freeze protection thermistor, attach it in the reverse procedure. Insert the thermistor into the
thermistor pipe and x it with the thermo clip.
c. After attaching the thermistor, clamp the wirings for the expansion valve, freeze protection thermistor, gas pipe
thermistor and inlet air thermistor with one (1) plastic band.
5 Removing Gas Pipe Thermistor
a. The gas pipe thermistor is xed by the thermistor holder. Remove the thermistor holder from the thermistor. Then,
the gas pipe thermistor can be removed.
b. When attaching the gas pipe thermistor, attach it in the reverse procedure. Get the thermistor rmly attached to
the inside of the piping with the thermistor holder.
c. After attaching the thermistor, clamp the wirings for the expansion valve, freeze protection thermistor, gas pipe
thermistor and inlet air thermistor with one (1) plastic band.
Termo Clip
Termo clip
Gas pipe thermistor (left side of gas pipe)
Freeze protection thermistor
Thermistor pipe
Freeze protection
thermistor
To Next Page
