2 Unit installation
RPI(M) - Ducted indoor unit (0.6-6.0)FSN4E(-DU)
SMGB0099 rev.0 - 12/2016
51
2

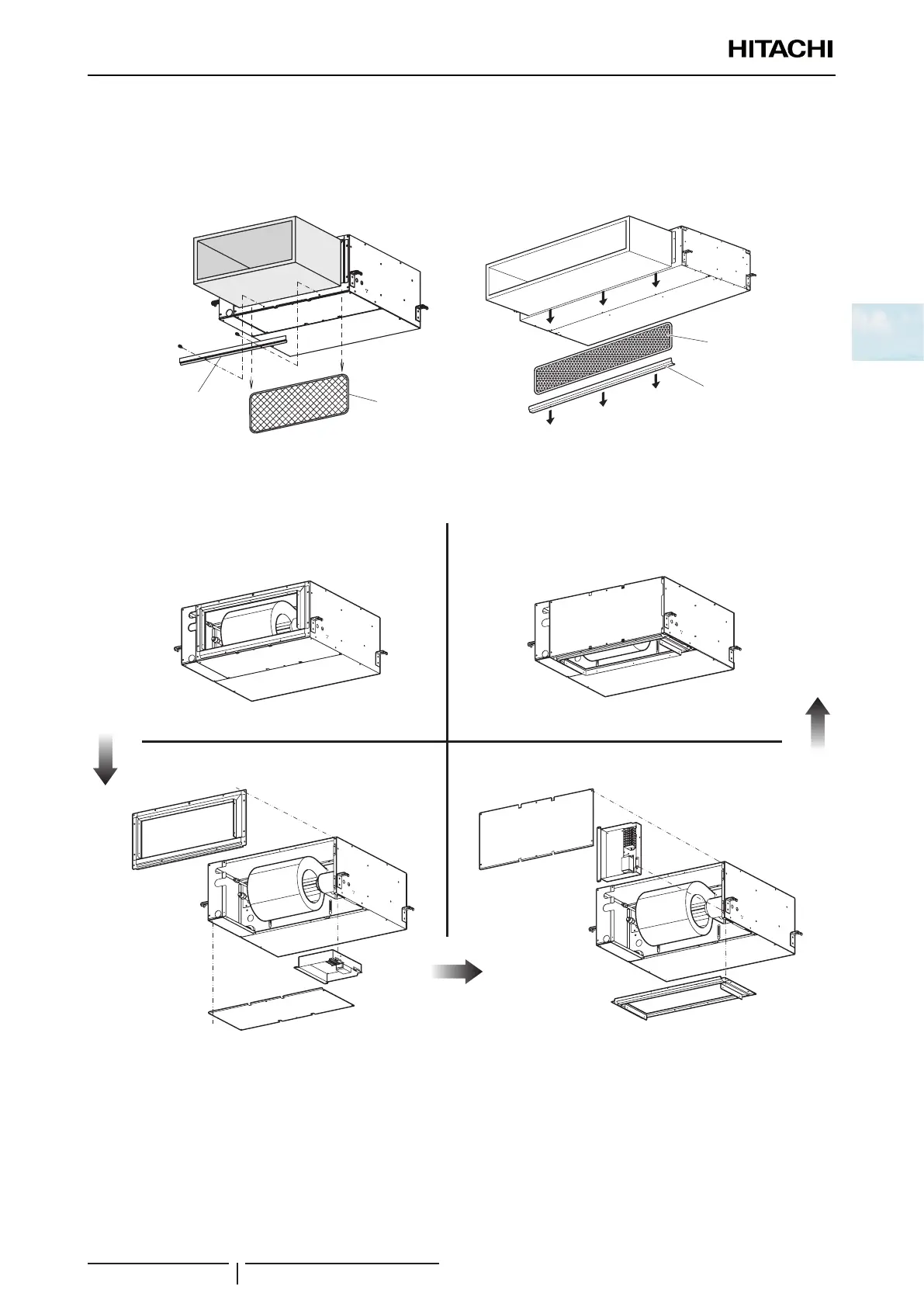

2.5.4 Maintenance of the suction air lter
Simply remove the set screws from the bar -1- (RPIM units: 2 screws, RPI units: 3 screws) and remove it to pull the lter 
downwards.
RPIM RPI
2
1
Change in the air suction direction RPIM-(0.6-1.5)FSN4E (-DU)
Change in position of the air inlet on RPIM-(0.6-1.5)FSN4E(-DU) models: the position of the air inlet and, therefore, its
direction can be modied by changing the position of the rear cover, as shown in the illustrations.
1
2
4
3
1 Initial position of the air inlet (factory-supplied).
2 Remove the front and rear covers and the electrical box from the unit.
3 Switch the position of the front and rear covers. Change the position of the electrical box on the unit as indicated in
the illustration.
4 Final position of the air inlet.
