2 Unit installation
RPI(M) - Ducted indoor unit (0.6-6.0)FSN4E(-DU)
SMGB0099 rev.0 - 12/2016
52
RPI-(2.0-6.0)FSN4E

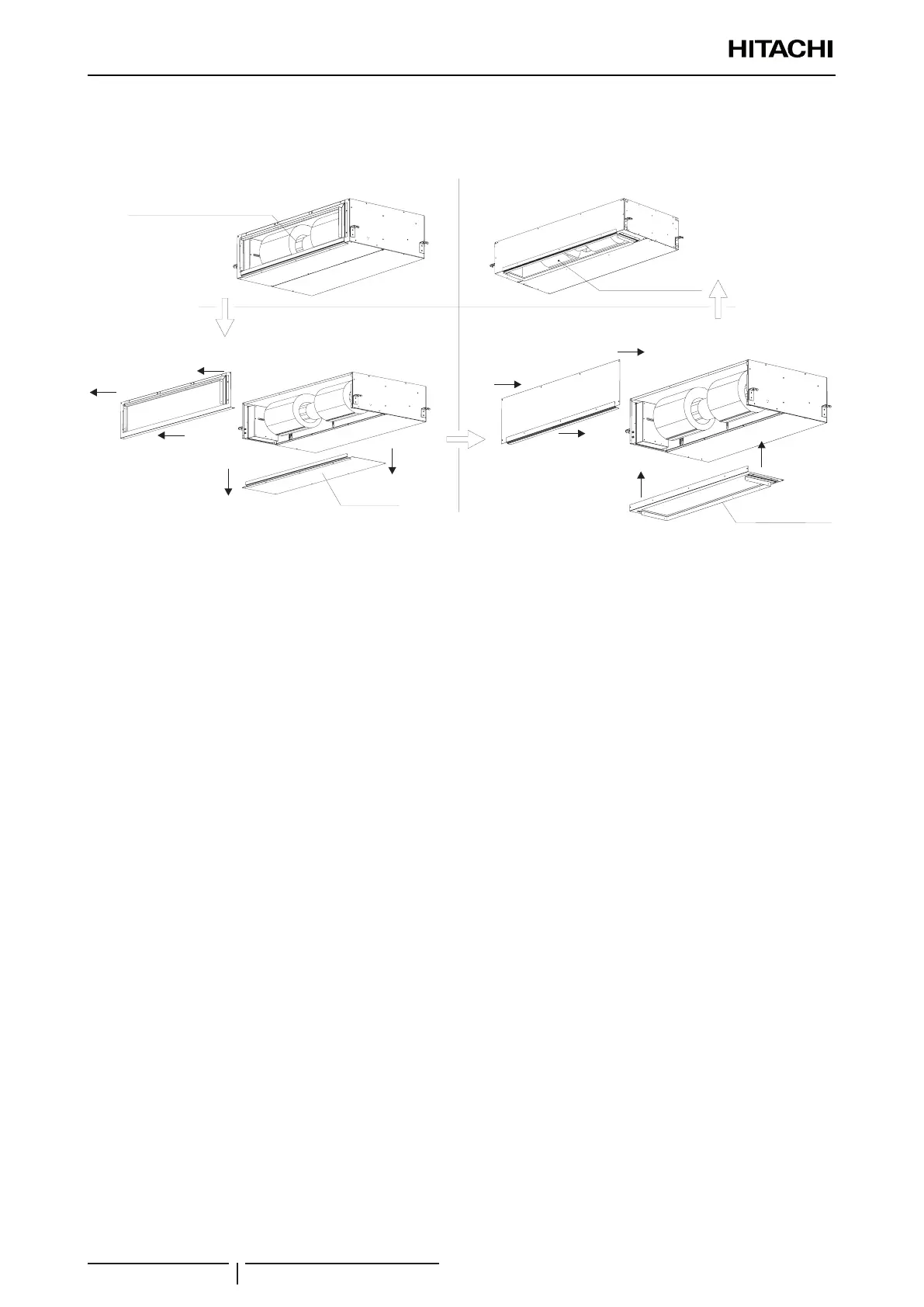

Change in position of the air inlet on RPI-(2.0-6.0)FSN4E models: the position of the air inlet and, therefore, its direction
can be modied by changing the position of the rear cover, as shown in the illustrations.
1
A
2
B
3
4
1 Initial position -A- of the air inlet (factory-supplied).
2 Air inlet and bottom cover away from the unit.
3 Interchange air inlet and cover position.
4 Final position -B- of the air inlet.
