9 Servicing
RPI-(0.6-6.0)FSN4E - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
294

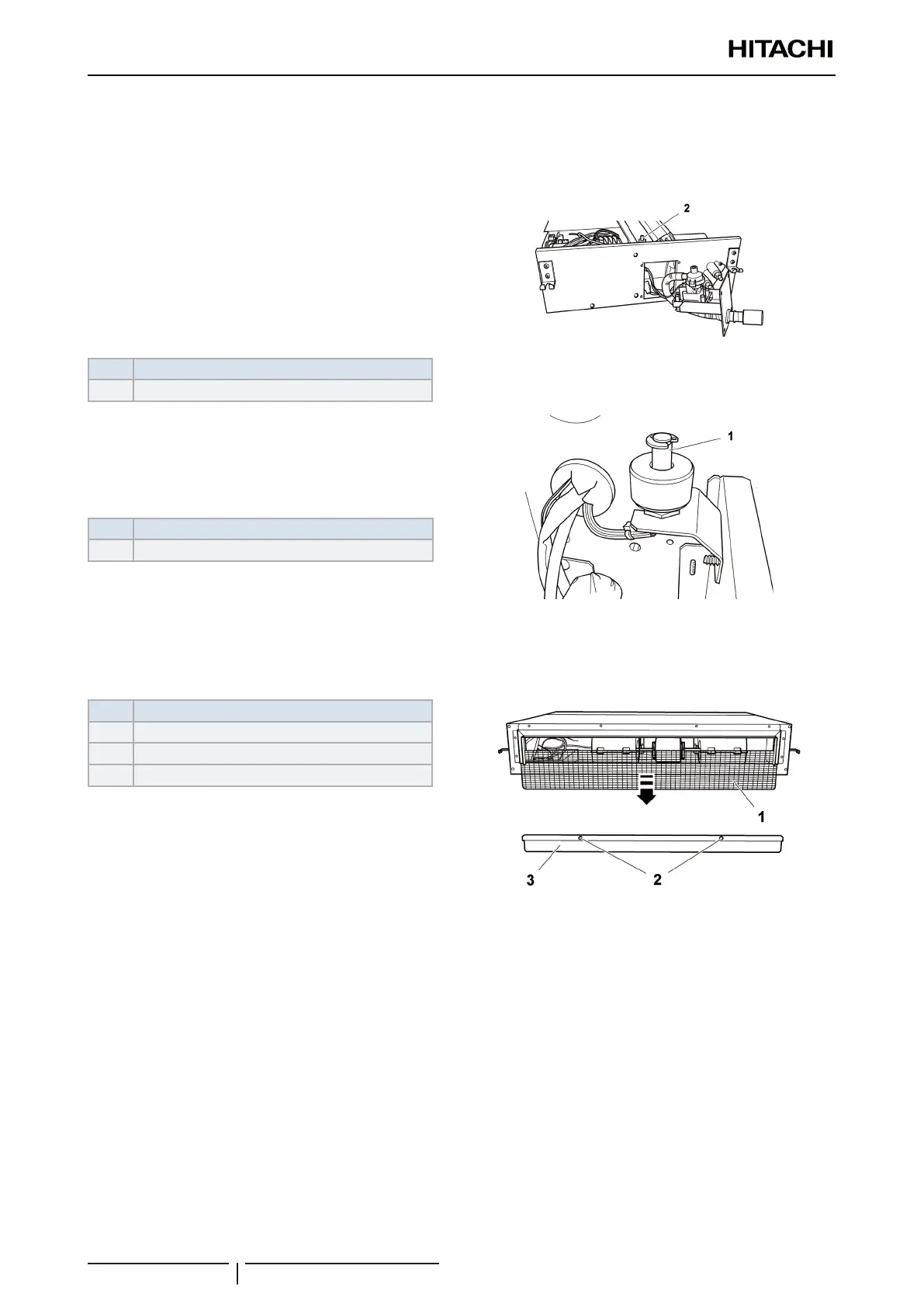

9.6.6 Removal of the oat switch
? NOTE
To disconnect and remove the oat switch, previously see the chapter
corresponding to the wiring diagrams in this Manual.
1 Remove the drain pump support screws and remove it.
2 Loosen the screws securing the oat switch to the
support.
3 Loosen the resin nut securing the oat switch and
remove it.
Nº Part
1 Float switch position
? NOTE
The torque value of the resin nut is 0.3 - 0.4 Nm. If the torque value
is higher, the nut will be damaged.
Nº Part
1 Float switch
9.6.7 Removal of the air lter
Nº Part
1 Air lter
2 Screws
3 Air lter xture bar
