9 Servicing
KPI-(252-2002)(E/X)4E - Energy recovery and active energy recovery ventilation units
SMGB0099 rev.0 - 12/2016
340

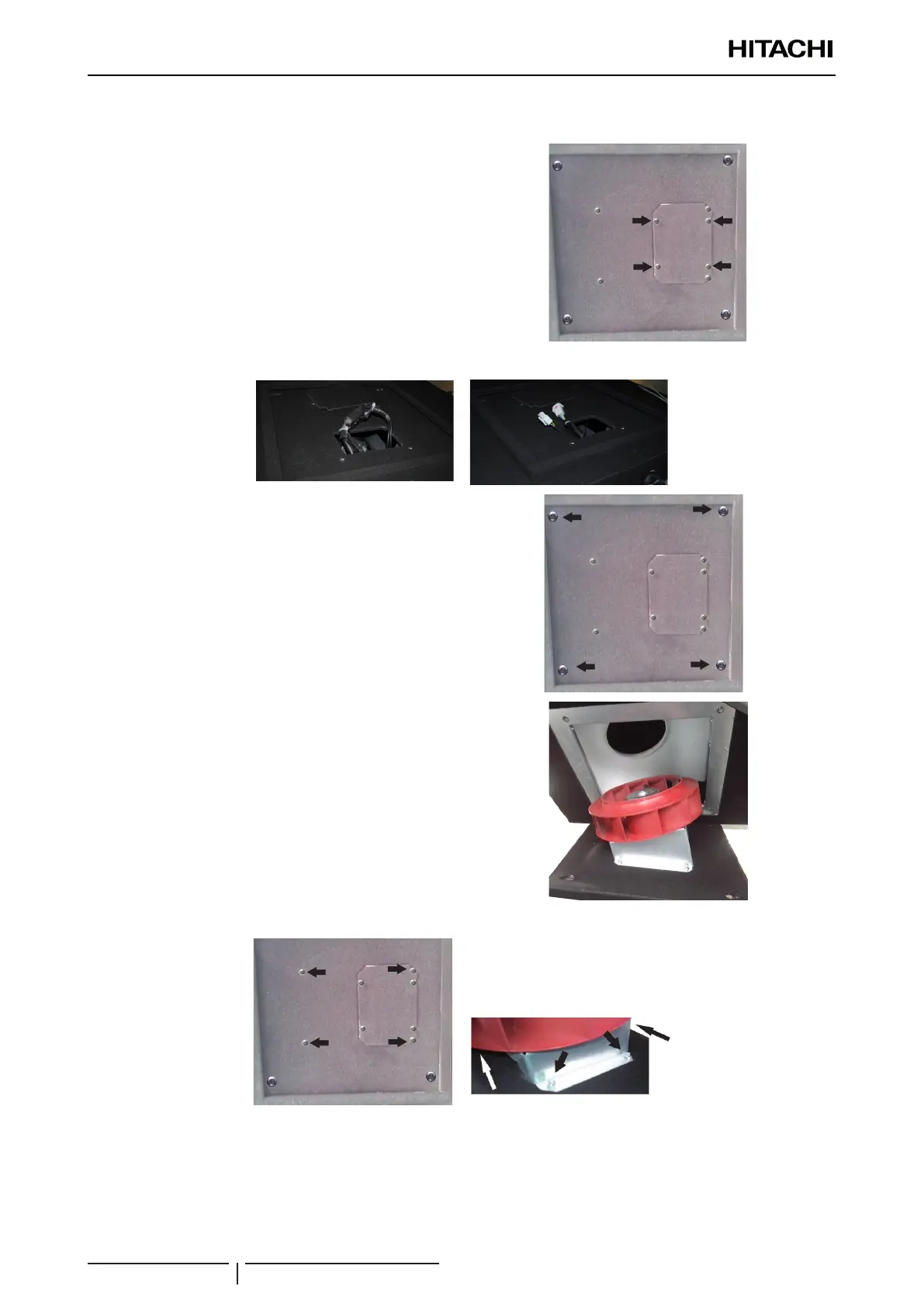

9.11.10 Removal of the fan motor
1 Remove all 4 screws from the fan service cover (d)
2 Unplug the connector that is inside the protection cap
3 Remove all 4 screws from the fan assy (e)
? NOTE
Use a 5 mm allen key (hexagon key)
4 Remove the fan with the assembled cover
! CAUTION
The fan kit is not îš¿xed, pay attention when all 4 screws are
removed, the fan can fall.
In order to remove de cover from the fan, unscrew all 4 screws.
