7 Commissioning
Test procedure using the wireless remote control
SMGB0099 rev.0 - 12/2016
237
7
7.2 Test procedure using the wireless remote control
7.2.1 PC-AWR wireless remote control
!
CAUTION
Test running by the controller can not be performed in case that the wired remote control switch is used together; in case that multiple
units are operated simultaneously (SET-FREE and UTOPIA series). In such cases, perform the test running by the wired remote control
switch.
1 Perform the test run after the installation work is completed.
a. Set the batteries for the controller.
b. Turn ON the power supply for the indoor and outdoor units.
c. “ ” lamp (yellow) on the receiver of the indoor unit ashes (0.25 seconds ON 0.25 seconds OFF), and then
turns OFF. While the lamp is ashing, the unit will not operate because it is initializing.

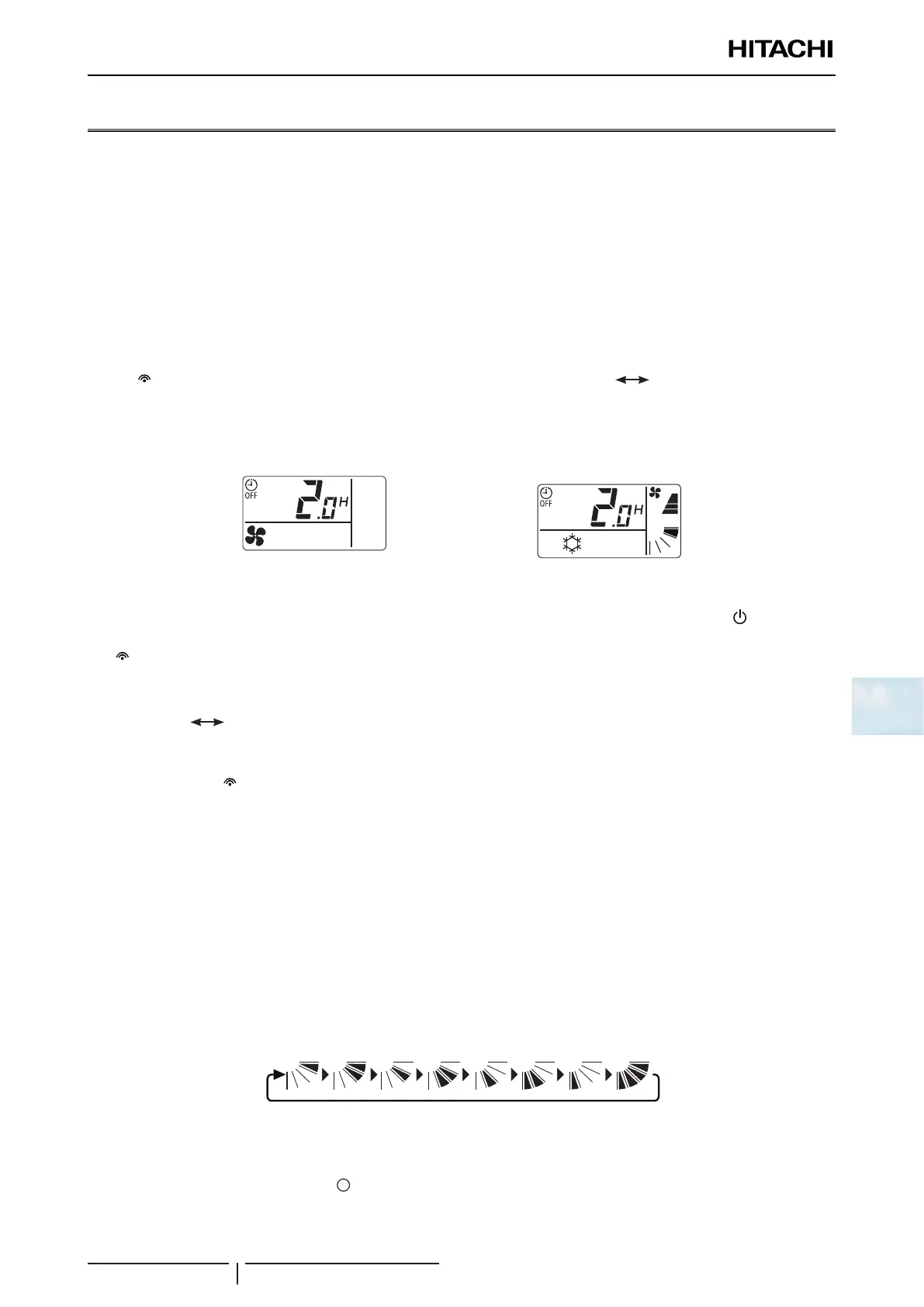

2 Set the test run mode by pressing “LOUVER” and “ON TIMER” switch simultaneously for more than 3 seconds. The
LCD should be as shown in the gure on the below.
3 Set the operation mode by pressing the “MODE” switch.
Test run mode is
under suspension
Test run mode is
under operating
4 Operate the test run by pointing the transmitter towards the receiver of the indoor unit and press the “ On” switch.
When the commands are received by the indoor unit, the
“ ” lamp (yellow) of the receiver will come on briey. Check the commands are received well and the mode selected
3) is set correctly.
In the test run mode, the red lamp (RUN) of the receiver is turned ON and the green lamp (TIMER) ashes (0.5
seconds ON 0.5 seconds OFF) (*2). And then set off timer for 2 hours.
? NOTE
• In the case that the “ ” lamp (yellow) does not turn ON, the controls may not have reached the receiver. Send the commands again.
• (*2) In the case of RPK model, “TIMER” lamp is turned ON without ashing.
5 Adjust the angle of the air louver as follows.
Check the commands are received correctly using the lamp and buzzer of the receiver kit. Use the wireless remote
controller pointing the transmitter toward the receiver.
!
CAUTION
The air louver has a mechanism for the auto-swing function. Do not move the louver by hand forcefully.
a.
Select the FAN mode by pressing the ‘MODE’ switch.
b.
Set the louver angle by pressing the ‘LOUVER’ switch. The louver direction is changed as follows. (For heating
and fan operation).
LCD Indication
6
Stop the test run
a.
Test run is stopped after 2 hours automatically.
b.
Test run is stopped by pressing “ Off” switch.
After Test Run is nished, check that the red lamp (RUN) and the green lamp (TIMER) are turned OFF.
