9 Servicing
RPIM-(0.6-1.5)FSN4E - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
303
9

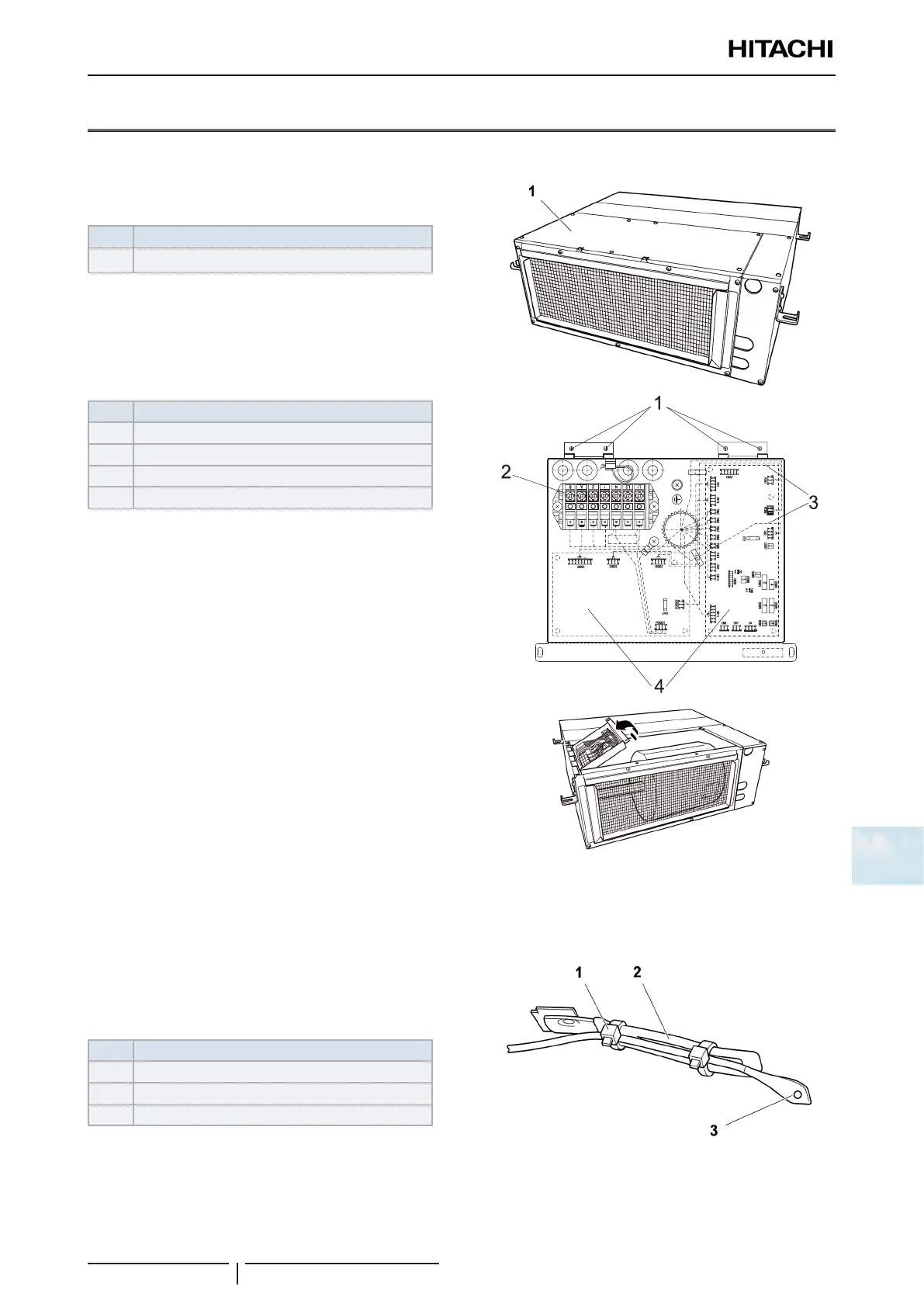

9.8 RPIM-(0.6-1.5)FSN4E - Ducted indoor unit
9.8.1 Removal of the electrical box
1 Remove the electrical box cover to access the electrical
components.
Nº Part
1 Location of the electrical box cover
Nº Part
1 Set screws
2 Terminal board
3 Transformer
4 PCB
2 Remove the set screws and remove the electrical box from
the unit.
? NOTE
The electrical box is îš¿tted with a hinge.
9.8.2 Removal of the inlet and outlet air thermistors
Inlet air thermistor
? NOTE
To disconnect and remove the appropriate thermistor, previously see the
chapter corresponding to the wiring diagrams in this Manual.
Nº Part
1 Tie
2 Cable clamp
3 Thermistor
