9 Servicing
RCIM-(0.6-2.5)FSN4(E) - 4-way cassette (compact)
SMGB0099 rev.0 - 12/2016
259
9

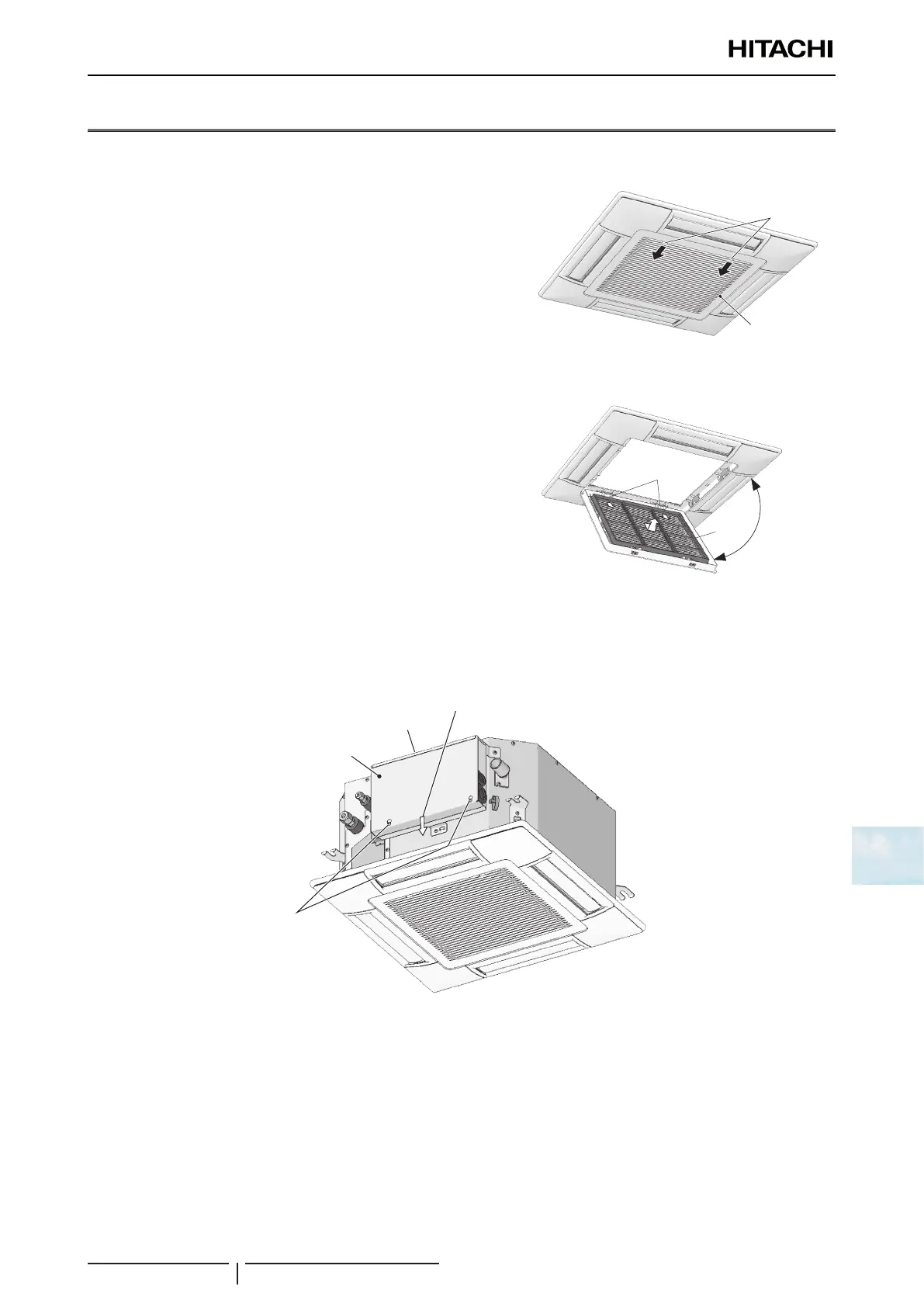

9.2 RCIM-(0.6-2.5)FSN4(E) - 4-way cassette (compact)
9.2.1 Removal of the air lter
1 The long-lasting lter is located inside the air inlet grille.
2 Press the knobs in the direction indicated by the arrows and open 
the air inlet grille.
3 Remove the lter from the grille by holding onto the lower part of 
the grille and the lter and detaching the blocked part.
Knob
Air inlet grille
9.2.2 Removal of the air inlet grille
1 Lift the grille approximately 45° angle from the air panel surface..
2 Tilt the air inlet grille, lift it up to draw it forward
? NOTE
• If the louvers are to be moved, for example for cleaning purposes, select
automatic swing mode to move the four louvers to the same position.
Filter catches
Air lter
Aprox. 45º
9.2.3 Removal of the electrical box cover
1 The electrical box can be removed by opening the air inlet grille.
2 Loosen 2 xing screws from the electrical box cover and remove it.
Electrical
box cover
Electrical box
Slide the electrical
box cover downward
to remove
Fixing screws
? NOTE
The electrical box is placed outside the unit. Access to the electrical box must be by the hatch close to the indoor unit.
