9 Servicing
RCD-(0.8-6.0)FSN3 - 2-way cassette
SMGB0099 rev.0 - 12/2016
275
9

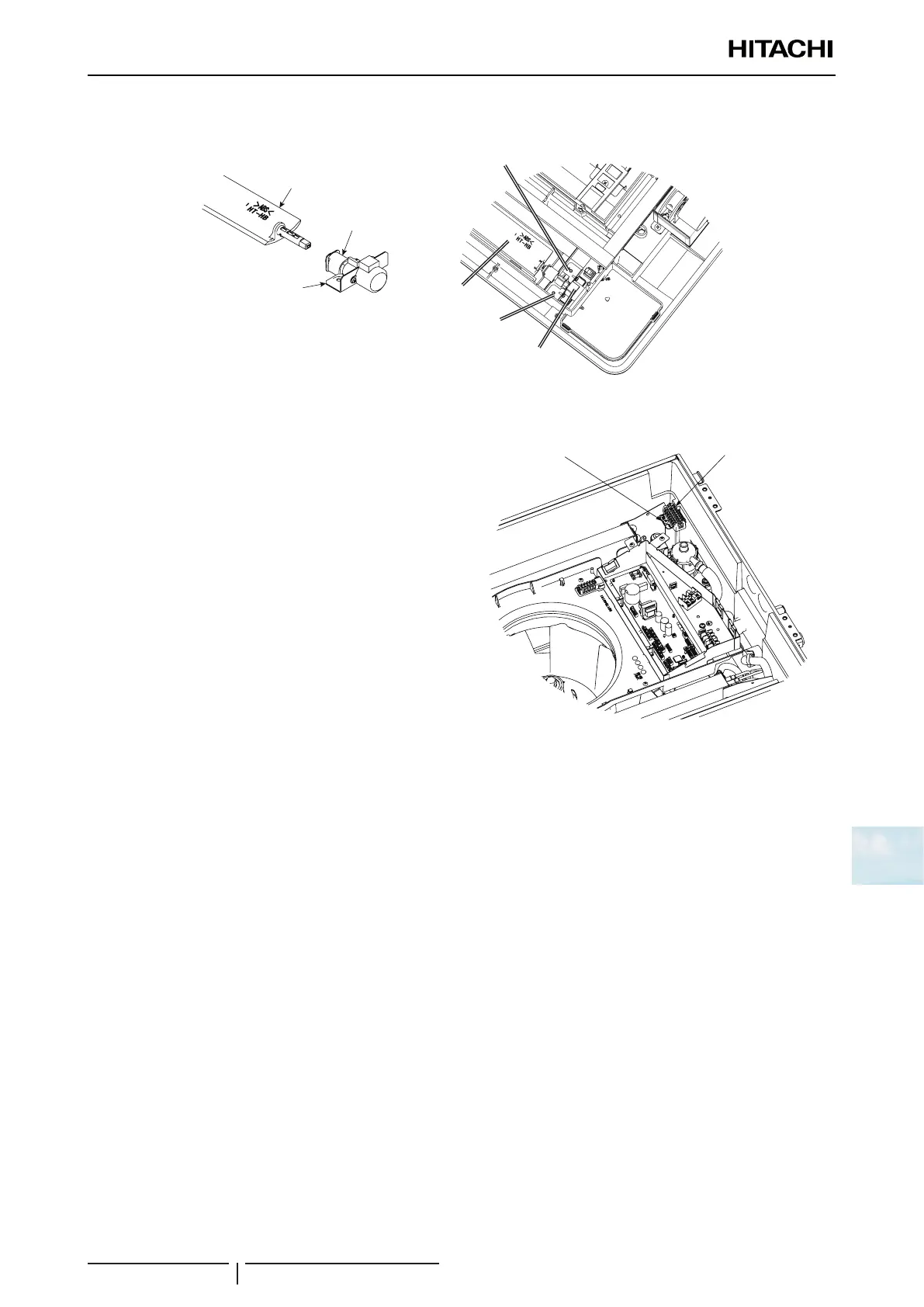

5 Remove two xing screws for AS motor from the air panel. Then remove the louver and AS motor form the air panel.
6 Remove the louver from the bearing for AS motor.
Louver
Bearing
AS Motor
Screw
Screw
AS Motor
Louver
9.3.12 Remove the Anti bacterial agent case
1 Remove the air panel according to the item “9.1.3
Removing Optional Air Panel”.
2 Remove the bell-mouth and turbo fan according to the
item “9.1.4 Removing turbo fan and fan motor”.
3 Remove the drain pan according to the item “9.1.6
Removing Drain Pan”.
4 Remove 1 screw for antibacterial agent case then
remove the antibacterial agent case.
Screw
Antibacterial
agent case
To Next Page
