2 Unit installation
RPC - Ceiling
SMGB0099 rev.0 - 12/2016
47
2
Continue for all installation types:

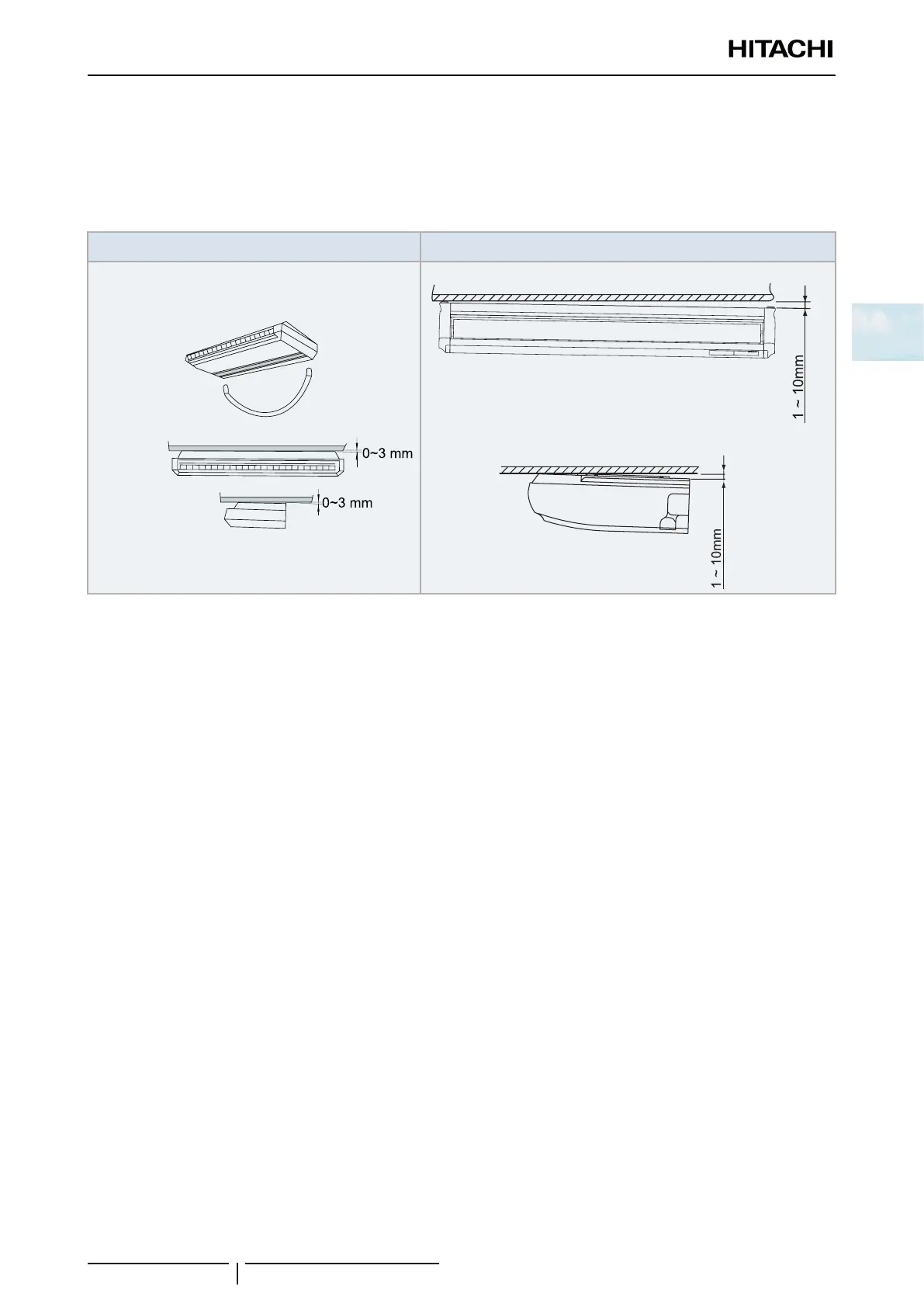

Check that the condensate discharge system in the indoor unit works correctly. To do so, check the level of the drain
pan using a spirit level or a clear exible pipe full of water. The rear of the unit where the drain hose is located must be
around 3 mm lower than the front side.
Secure the drain hose with the clamp and adhesive supplied.
RPC-FSN3E RPC-FSN3
Water level
Transparent plastic
tube containing
water
(Drain pipe connection)
from horizontal
View from front
View from right
from horizontal
Lower the indoor unit 10mm
when the optional drain-up
mechanism is installed.
To Next Page
