9 Servicing
RCD-(0.8-6.0)FSN3 - 2-way cassette
SMGB0099 rev.0 - 12/2016
270
4 Removing Turbo Fan and Fan Motor:
a. Hold the turbo fan and remove the xing nut then remove the turbo fan.
b. Remove the 2 screws from the plate holding the fan motor lead wire then remove the fan motor.
c. Remove the fan motor lead wire from 2 code clamp for evaporator partition plate.
d. Remove the xing nut and 3 vibration insulation rubber xing the fan motor then remove the fan motor.
e. For RCD-(4.0-6.0)FSN3, remove the fan motor lead wire from 1 code clamp for fan partition plate placed on the
centre of the indoor unit.
Remove the xing nut and 3 vibration rubber xing the fan motor the remove the fan motor.
f. For reassembling, x the bell-mouth to the drain pan with xing screws temporarily then x the fan motor lead wire 
to 2 code clamp for the evaporator partition plate.
For RCD-(4.0-6.0)FSN3, x the fan motor lead wire to 1 code clamp for the fan partition plate placed on the centre 
of the indoor unit.
g. Center the turbo fan and bell-mouth to get enough clearance then fasten the xing screws.

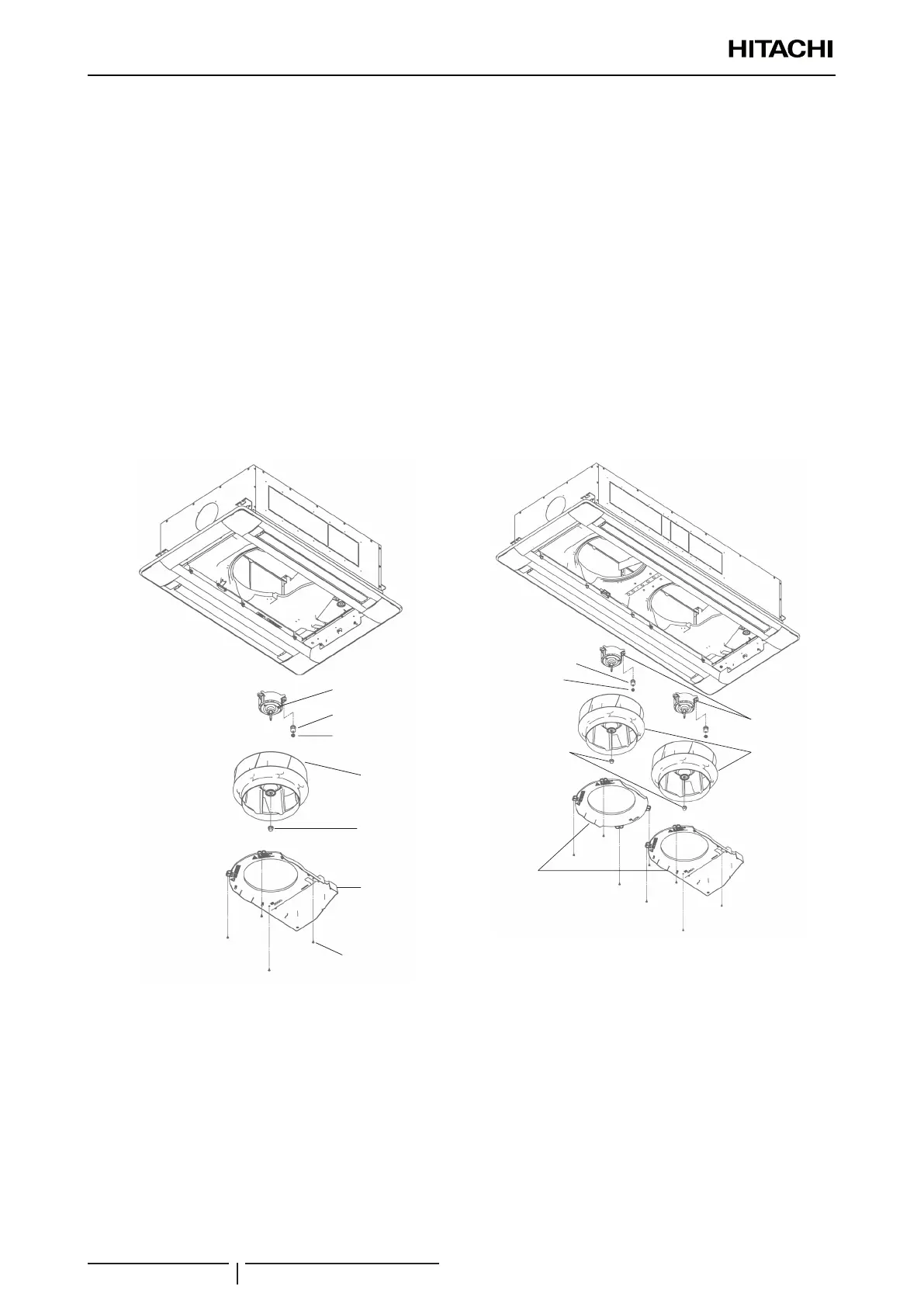

RCD-(0.8-3.0)FSN3 RCD-(4.0-6.0)FSN3
Fan motor
Fixing nut
Fixing nut
Bell-mouth
Vibration insulation rubber
Turbo fan
Fixing screw
Fan motor
Turbo fan
Fixing nut
Fixing nut
Vibration
insulation rubber
Bell-mouth
Fixing screw
To Next Page
