9 Servicing
RPI-(8.0-20.0)FSN3(P)E(-f) - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
300

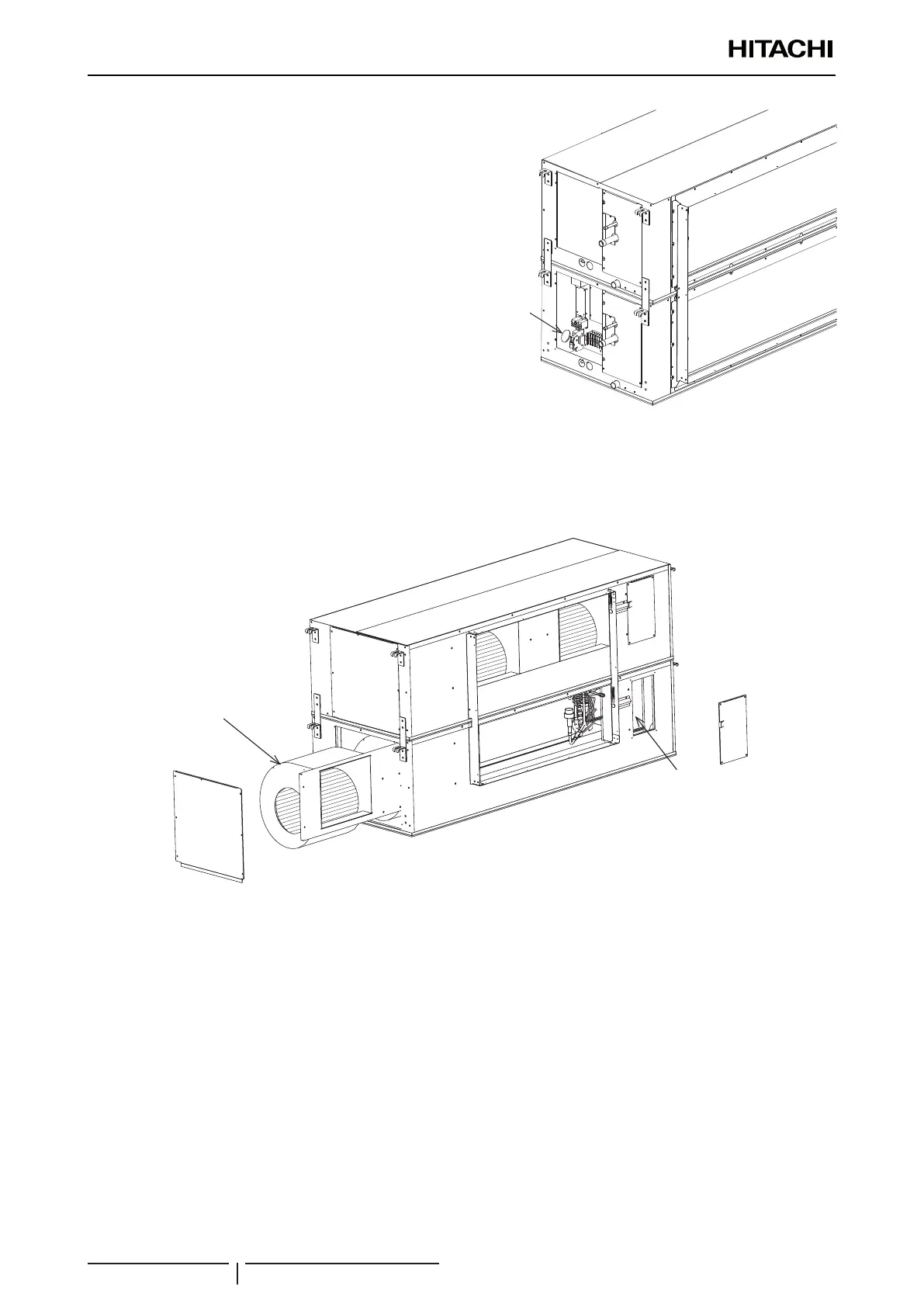

4 Once the fan motor group has been released, disconnect
the fan motor connector from the electrical box and pass
it through the electrical box hole.
! CAUTION
Loosen the clamp around the fan motor connector cable to ease
the release of fan motor group.
Pass the
fan motor
connector
through the
hole
5 Remove the fan motor group. One person shall push the fan motor group from the position of the front service cover,
while a second person is pulling from the position of the fan motor side service cover.
! CAUTION
The fan motor group has an approximate weight of 25 kg, and therefore removal operation shall be carried out by two persons at least.
Pull the fan motor
group here
Remove the motor
at this side
To Next Page
