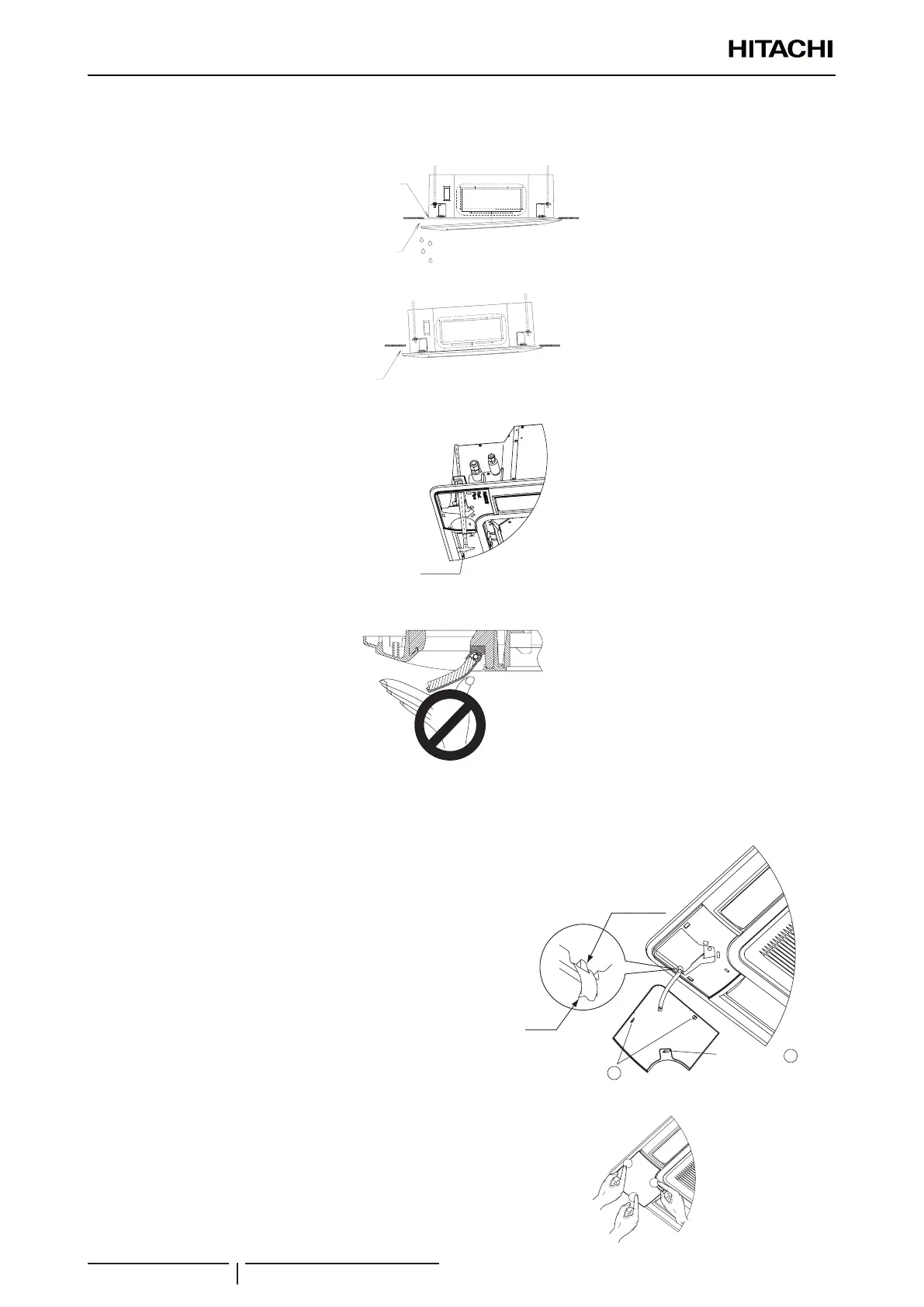

2 Unit installation
RCI - 4-way cassette
SMGB0099 rev.0 - 12/2016
24
! CAUTION
• If tighten long screws insufcient, may cause something wrong as below.
Air Leakage
Smudge
Dewing
• If any gap has even though tighten long screws sufcient, readjust the height of indoor unit.
No gap shall exist
• It’s able to adjust the indoor unit height by using wrench from the corner pocket.
Wrench
• Too considerable adjustment of height cause dewing from drain-pan.
• Do not turn the air louver by hand. If moved, the louver mechanism would be damaged.
Attachment of Corner Pocket Cover
Attach the corner pocket covers after the air panel is completely assembled.
1 Catch the band at the rear side of the corner pocket cover
onto the projection at the air panel as shown.
A
B
Projection
Fixing hook
Band
Fixing hook
2 Insert and push the xing hooks (2 portions) at Ⓐ to the
air panel and insert and push the xing hook (1 portion) at
Ⓑ to the air panel.
B
A
A
To Next Page
