2 Unit installation
RPC - Ceiling
SMGB0099 rev.0 - 12/2016
44

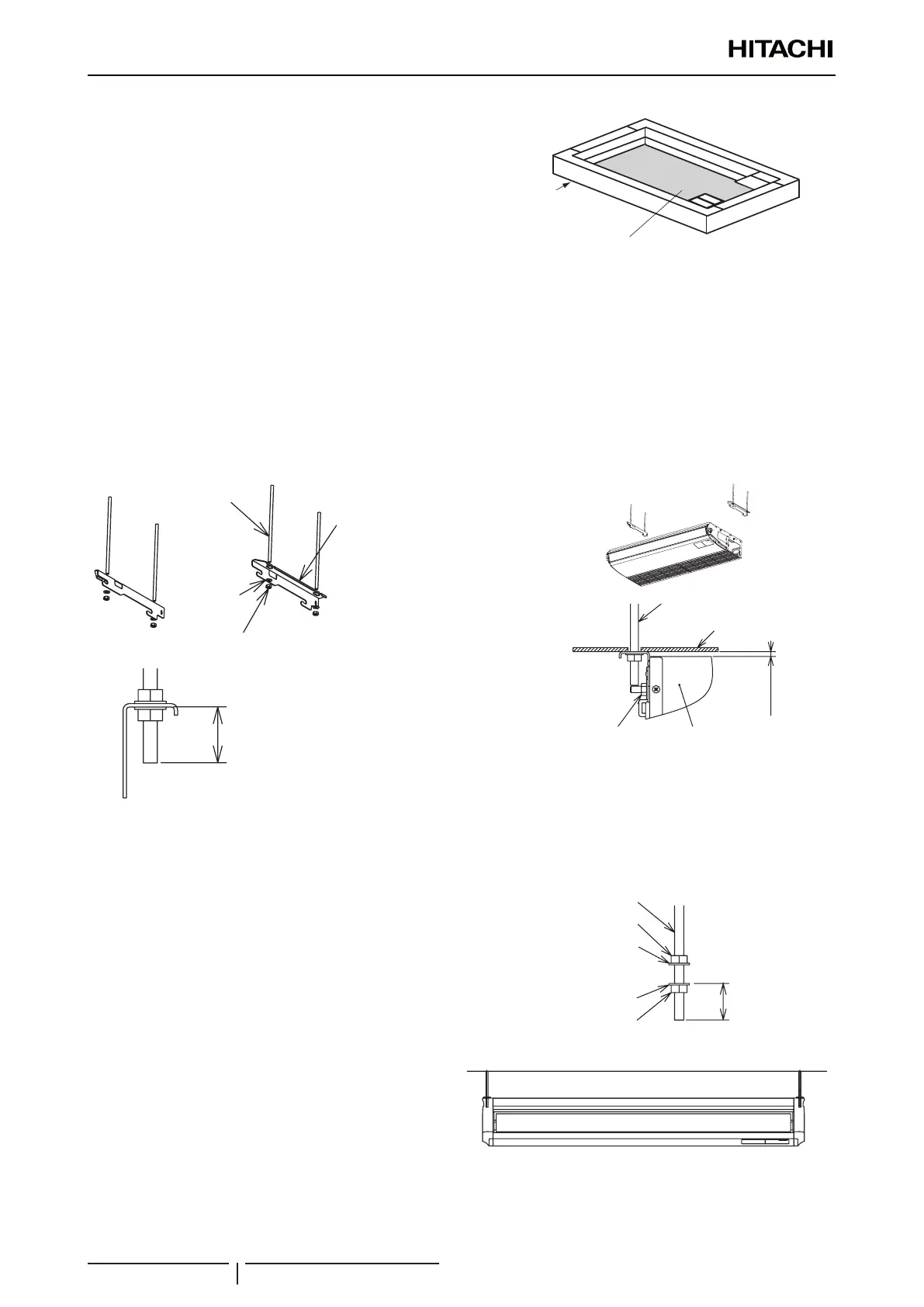

4 Pattern Board for Installation. The pattern board for
the installation is printed on the packing. When making
holes in wall and ceiling, the pattern board which hole
positions for suspension, refrigerant pipe and drain pipe
are printed shall be used.
Upper cap
The pattern board is attached in the upper cap.
5 Hanging indoor unit:
• Hanging indoor unit with suspension bracket
6 Make holes in the ceiling for suspension bolts.
a. Remove the side cover.
b. Remove the suspension brackets attached to the indoor unit.
c. Fix the suspension brackets to the suspension bolts (4 portions).
d. Mount the indoor unit to the suspension brackets.
e. Tighten the 4 nuts and the xing screw for suspension bracket.
Suspension bolt
Suspension
bracket
Washer
Nut
Suspension bolt
Max. 50 mm
Nut (accessory) Rear side
of indoor unit
(6mm)
Ceiling
Suspension bolt
Tighten accessory
4 nuts (M8)
• Hanging indoor unit without suspension bracket
If there is not enough service space between the ceiling and the indoor unit, hang the indoor unit by method Hanging
indoor unit with suspension bracket.
7 Determine the position to install the suspension bolt.
a. Fix the washer and nut to the suspension bolt.
b. Mount the indoor unit to the suspension bolts.
Suspension bolt (eld-supplied)
Nut (eld-supplied)
Washer (eld-supplied)
Suspension bolt
Max. 50mm
Washer (eld-supplied)
Nut (eld-supplied)
Ceiling
