Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide
198

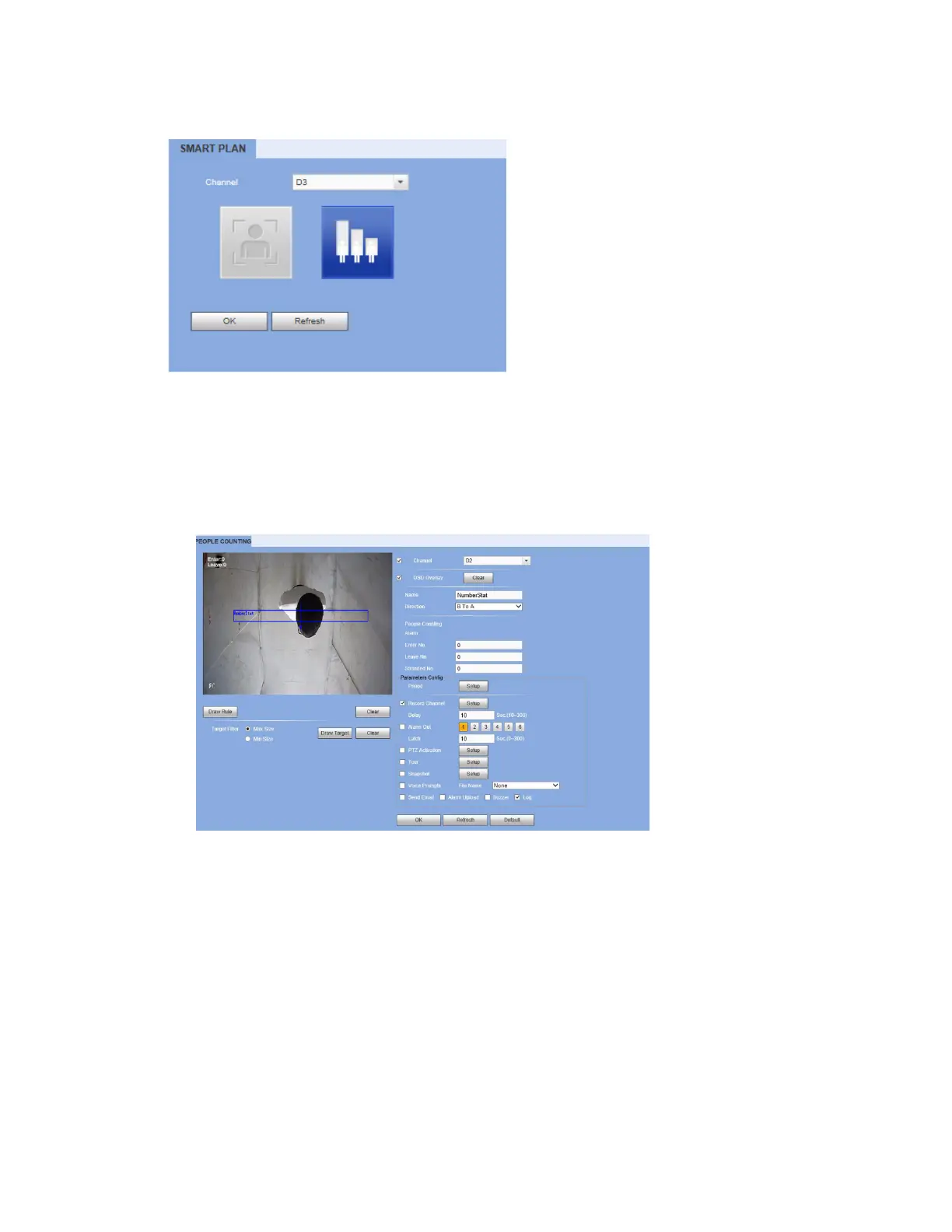

Figure 12-69 Smart Plan Configuration Interface
Configuring People Counting
The people counting feature analyzes the video to count the number of people that pass
through or appear in the video.
1. Go to Setup  Event People Counting.
Figure 8-20 People Counting Configuration Screen
2. Select a Channel to configure for people counting from the drop-down menu and check
the check box.
3. Click Draw Rule to set up an area for people counting. You can move or resize the area
using
your mouse. To move the area, drag one of the sides. To resize the area, drag one of
the
corner handles.
4. Click Draw Target to set up the target size. You can move or resize the area using
your
mouse. To move the area, drag one of the sides. To resize the area, drag one of the
corner
handles.
5. To enable OSD which displays the Enter and Leave numbers, check OSD Overlay. To clear
the overlay, click Clear.
6. In the Name field, enter the name of rule.

Honeywell Performance Series Specifications

General

IR Range	Up to 30m (98ft)
Weatherproof Rating	IP66
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, 12 VDC
Image Sensor	1/2.8" CMOS
Vandal Resistance	IK10
Video Compression	H.265/H.264/MJPEG
Storage	MicroSD card slot (up to 256GB)
Network Connectivity	10/100 Mbps Ethernet
