HP 1660 Series User Manual

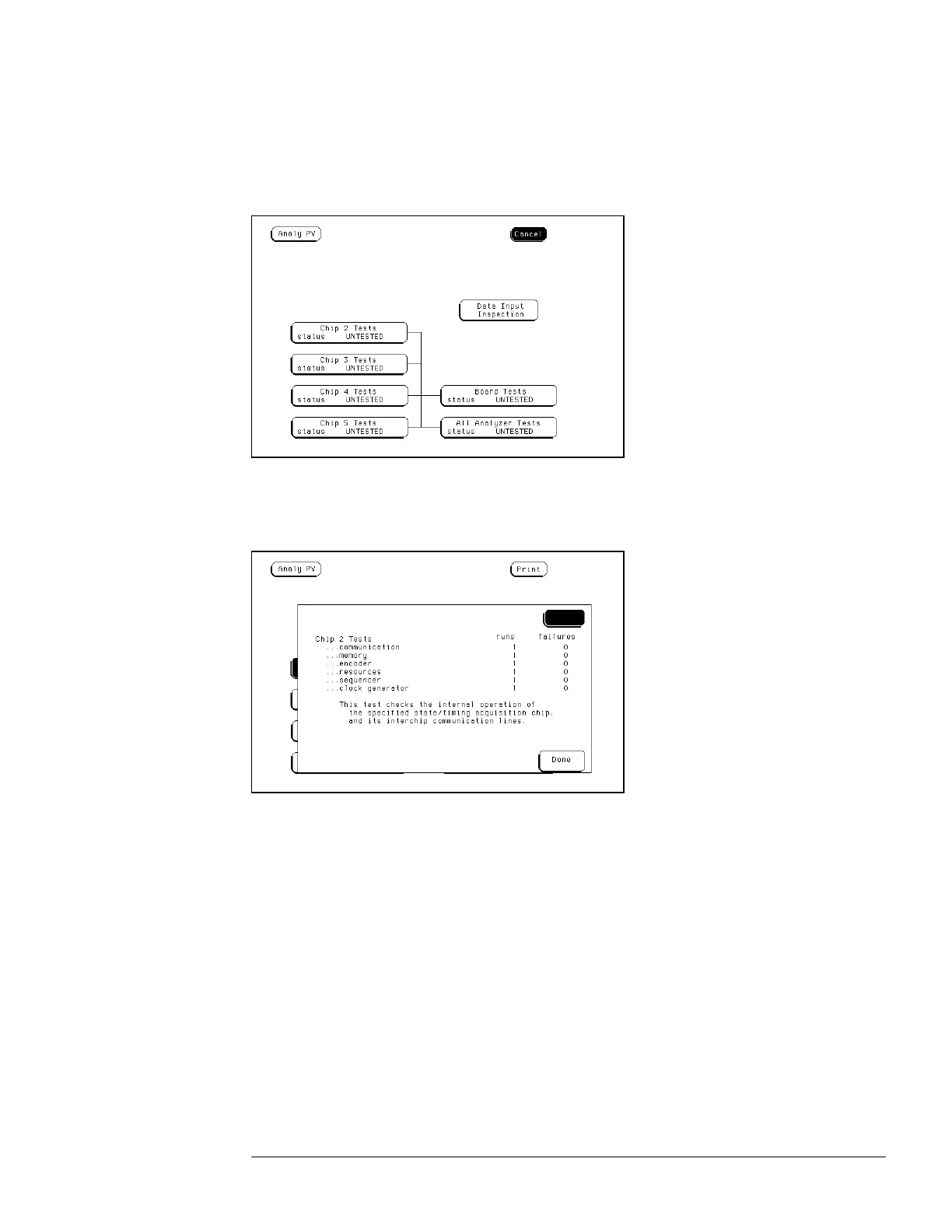

1111 Select Sys PV, then select Analy PV in the pop-up menu. Select Chip 2 Tests.
You can run all t he analyzer t ests at one t ime by select ing All Analyzer Test s. To see more
details about each test, you can run each test individually. This example shows how to run
Chip 2 Test s. Chip 3, 4, and 5 Test s operate t he same as Chip 2 Tests.
1212 In the Chip 2 Tests menu, select Run, then select Single. The test runs one time, then
the screen shows the results. When the test is finished, select Done. Then, perform
the other Chip Tests.
To run a test continuously, select Repetitive. Select Stop to halt a Run Repetitive.
Troubleshooting
To run the self-tests
5–19

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
