HP 1660 Series User Manual

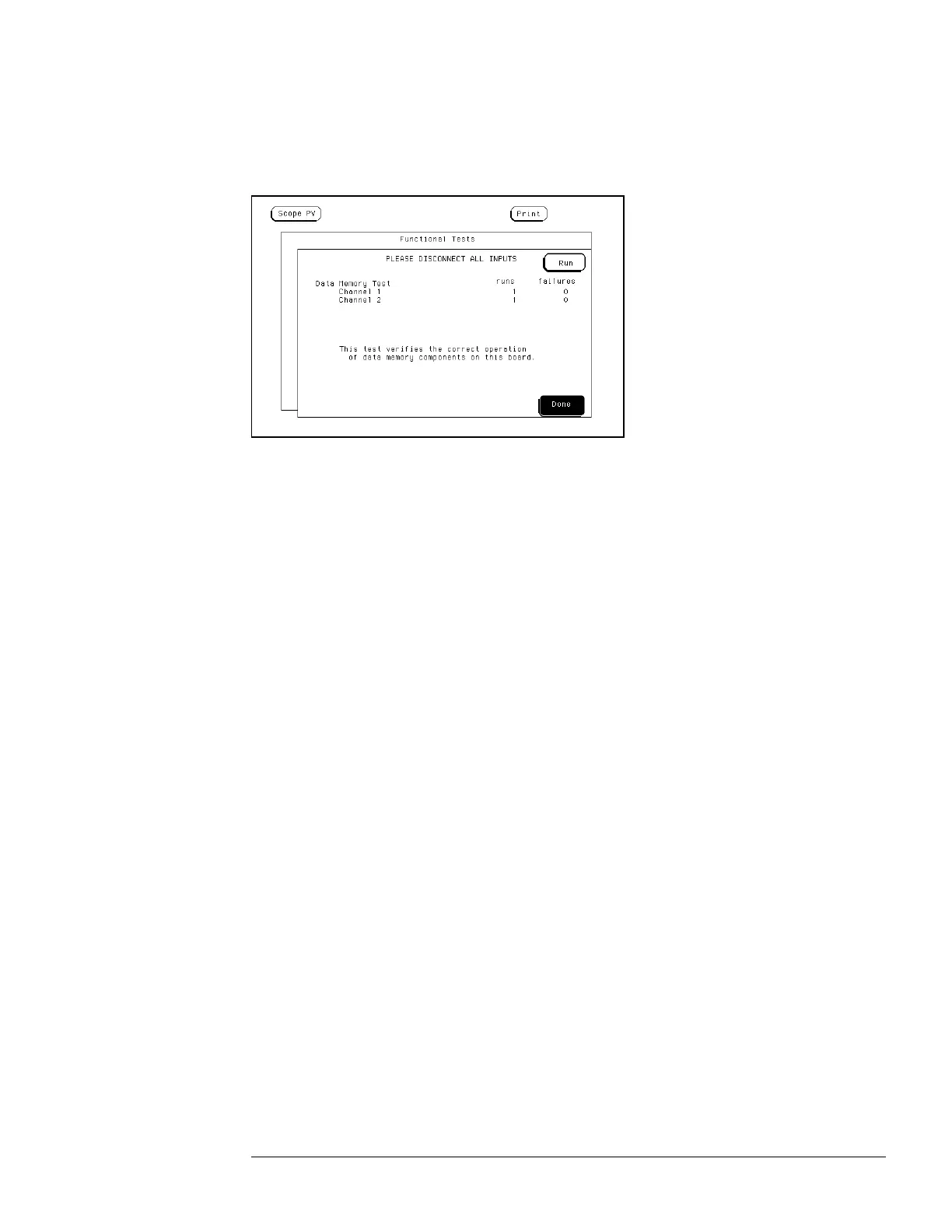

1717 In the Data Memory Test menu, select Run, then select Single. The test runs one
time, then the screen shows the results. When the test is finished, select Done.
To run a test continuously, select Repetitive. Select Stop to halt a Repetitive Run.
1818
To exit the tests, press the System key. Select the field to the right of the Sys PV
field.
1919 Remove the disk containing the performance verification test, then select the Exit
Test System.
If you are performing the self-tests as part of the troubleshooting flowchart, return to the
flowchart.
Troubleshooting
To run the self-tests
5–21

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
