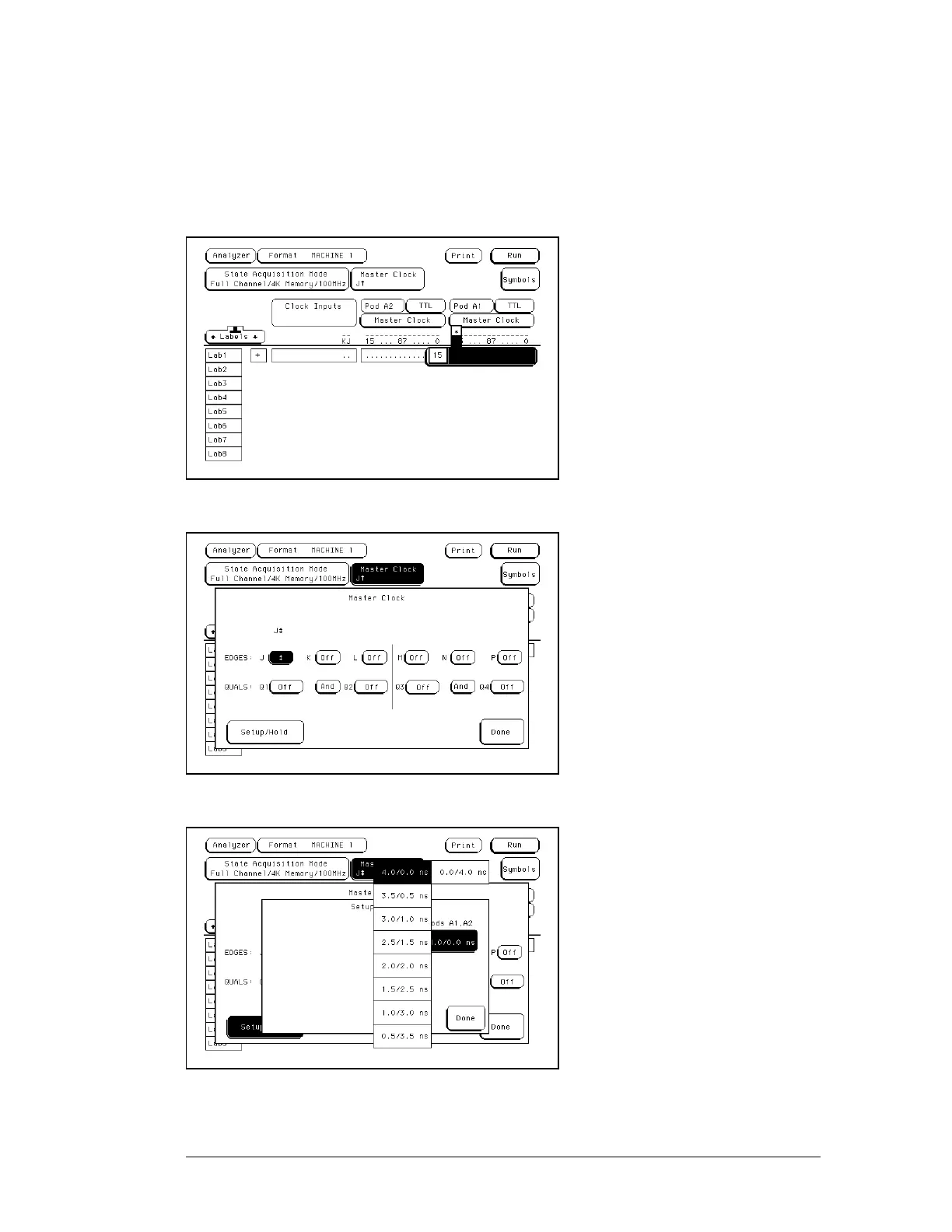

44 Set up the Format menu.

aa Press the Format key.

bb Move the cursor to the field showing the channel assignments for the pod under test.

Press the Clear Entry key until the pod channels are all assigned (all asterisks (*)).

Press the Done key.

cc Select Master Clock, then select a double edge for the clock of the pod under test.

Turn off the other clocks.

dd In the Master Clock menu, select Setup/Hold, then select 4.0/0.0 ns for the pod being

tested. Select Done. Select Done again to exit the Master Clock menu.

Troubleshooting

To test the logic analyzer probe cables

5–30
