2. Remove the slot cover on the PCI cage.
CAUTION:
Do not discard the slot cover. If the expansion board is removed in the future, the slot cover
must be reinstalled to maintain proper cooling.

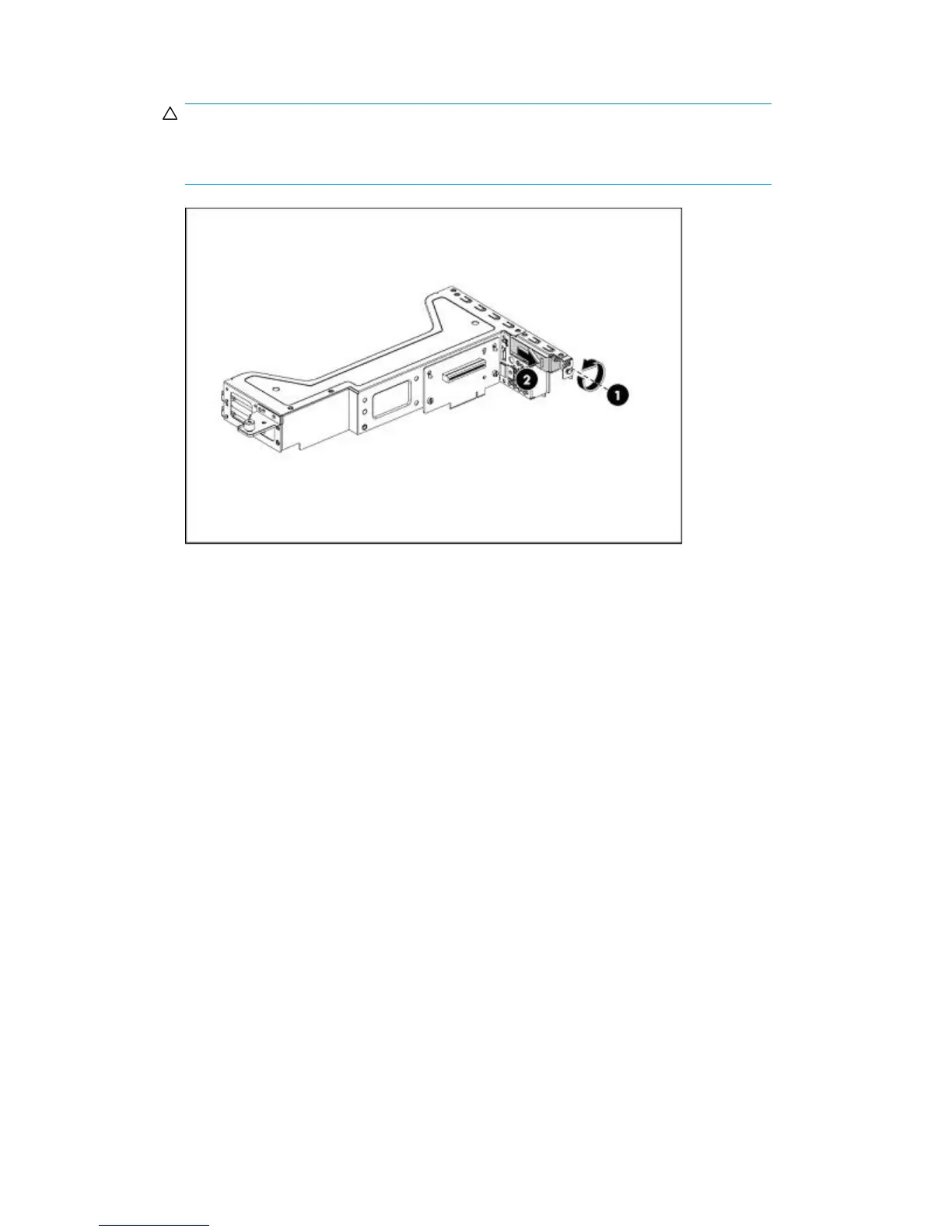

Figure 18 Removing the slot cover (low profile)
Installing the PCIe Card
1. Slide the expansion board into the slot, aligning the board with its matching connector. Firmly
press the board to seat it properly in the slot.
D2D Backup System HP D2D4112 49
