You can also use the Web Management Interface to modify these settings directly on the HP D2D
Backup System, as long as this is done before the infrastructure changes are made.
Once the network settings of the HP D2D Backup System have been changed, you must also change
the iSCSI Initiator for each host.
Using the console to discover the HP D2D Backup System (IPv4
and IPv6)
If you do not use the Installation Wizard or it fails, you can connect the system console directly to the
unit in order to find out the IP address.
To connect the system console
1. Connect the monitor cable to the VGA port on the rear of the unit.
2. Connect the keyboard cable to the PS/2 ports on the rear of the unit. Do not connect anything
to the USB ports.

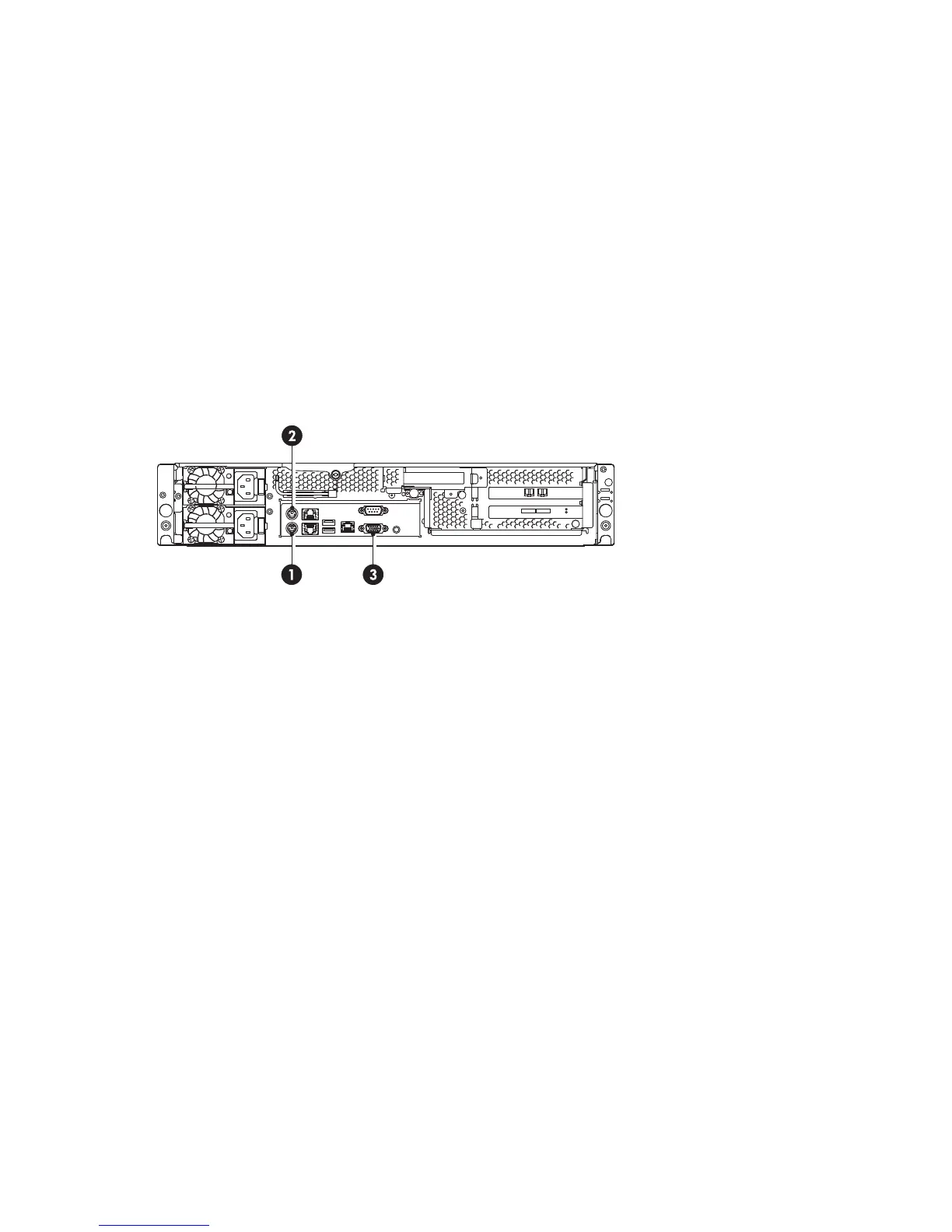

Figure 22 System console connections on the HP D2D
1 and 2. PS/2 ports for system console keyboard and mouse
3. VGA port for system console monitor
Advanced installation56
