61

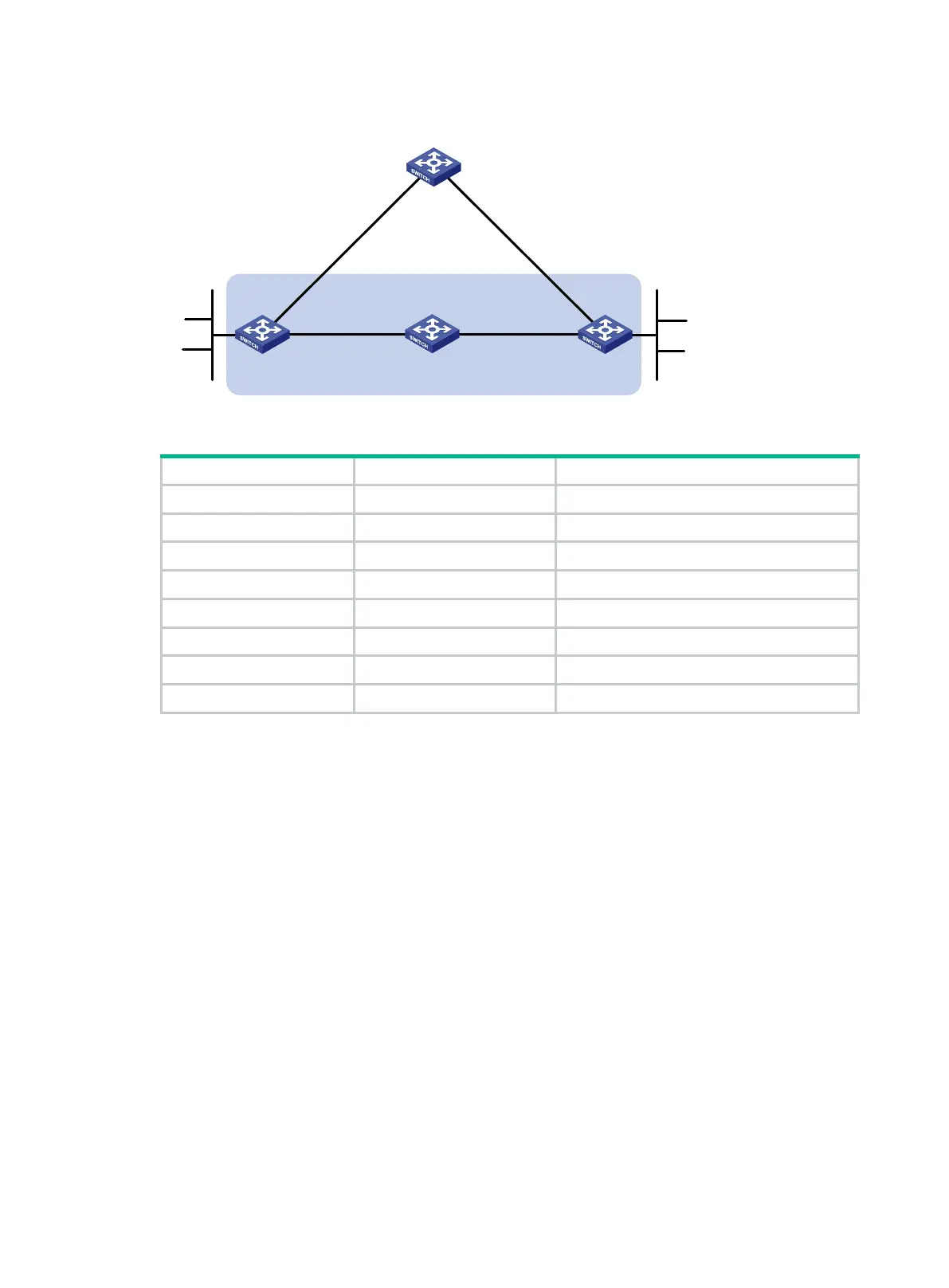

Figure 15 Network diagram
Table 7 Interface and IP address assignment
Switch A VLAN-interface 300 192.168.3.1/24
Switch A VLAN-interface 100 192.168.1.1/24
Switch B VLAN-interface 100 192.168.1.2/24
Switch B VLAN-interface 200 192.168.2.1/24
Switch C VLAN-interface 200 192.168.2.2/24
Switch C VLAN-interface 400 192.168.4.2/24
Switch D VLAN-interface 300 192.168.3.2/24
Switch D VLAN-interface 400 192.168.4.1/24
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure basic RIP and enable static route redistribution into RIP so Switch A and Switch C
have routes to send to each other:
# Configure Switch A.
<SwitchA> system-view
[SwitchA] rip 1
[SwitchA-rip-1] version 2
[SwitchA-rip-1] undo summary
[SwitchA-rip-1] network 192.168.1.0
[SwitchA-rip-1] network 101.1.1.0
[SwitchA-rip-1] peer 192.168.2.2
[SwitchA-rip-1] undo validate-source-address
[SwitchA-rip-1] import-route static
[SwitchA-rip-1] quit
[SwitchA] interface vlan-interface 100
[SwitchA-Vlan-interface100] rip bfd enable
[SwitchA-Vlan-interface100] quit
[SwitchA] rip 2
[SwitchA-rip-2] version 2
100.1.1.0/24
101.1.1.0/24
Switch C
Switch A
Vlan-int100
Vlan-int100
Switch B
Vlan-int200
BFD
Vlan-int200
Switch D
Vlan-int300
Vlan-int300
Vlan-int400
Vlan-int400
