The reinforcement must be inserted in the syringe before proceeding with the syringe
installation. The syringe installation must be executed following the instructions given in
paragraph 4 . 2 . 3 ” Syringe installation/ replacement (liquid mode)” , but before mounting the
syringe, it is necessary to apply the reinforcement on the syringe. The reinforcement must be
inserted from the needle side and it must slide along the syringe needle as shown in figure
below. Then proceed with the syringe installation in the syringe location and go ahead with the
syringe installation as shown in paragraph 4 . 2 . 3 ” Syringe installation/ replacement (liquid
mode)” .

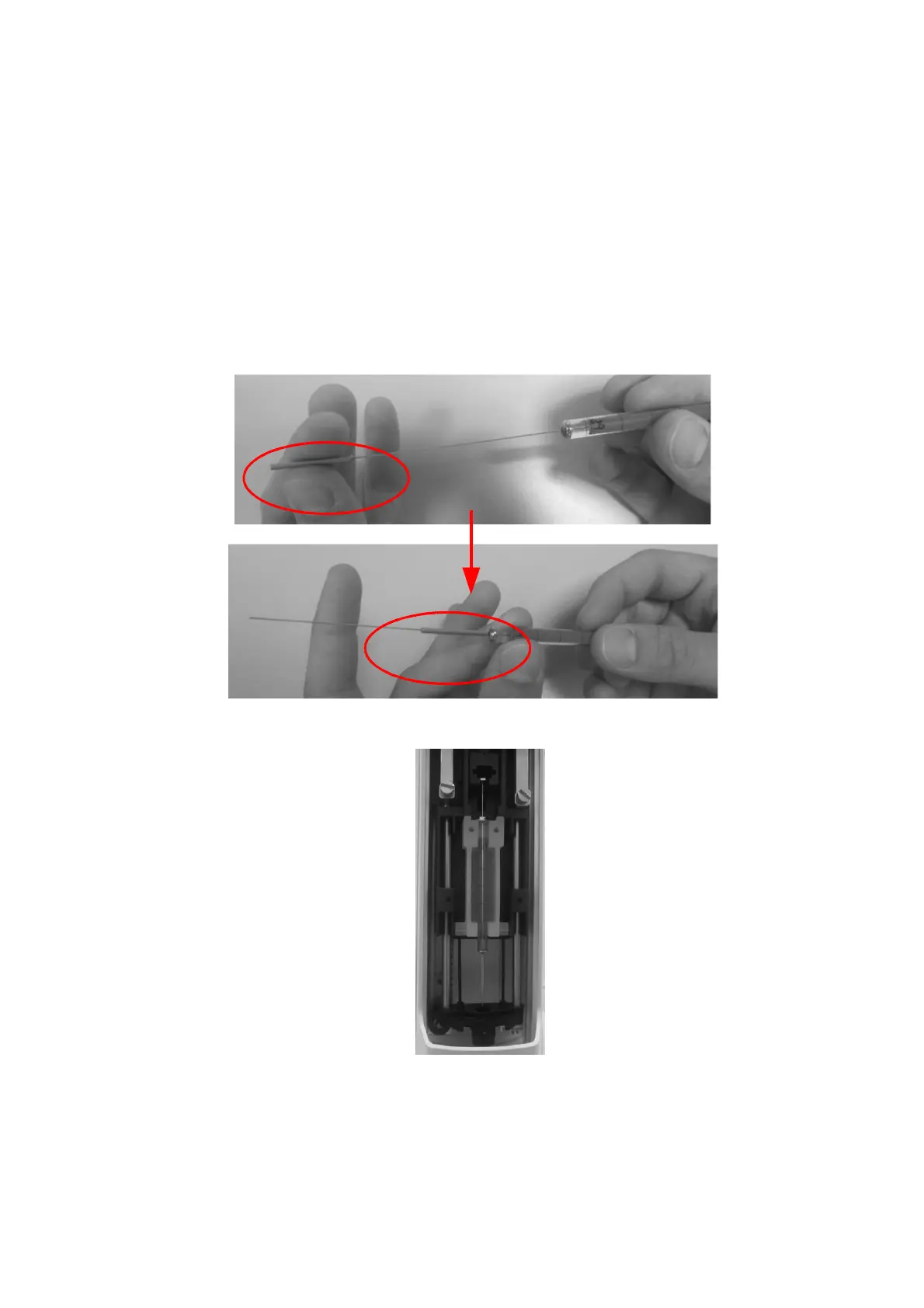

Figure 126: Reinforcement application on the syringe
Figure 127: Syringe with Reinforcement installation in the syringe location
