2.1.2 Syringe location

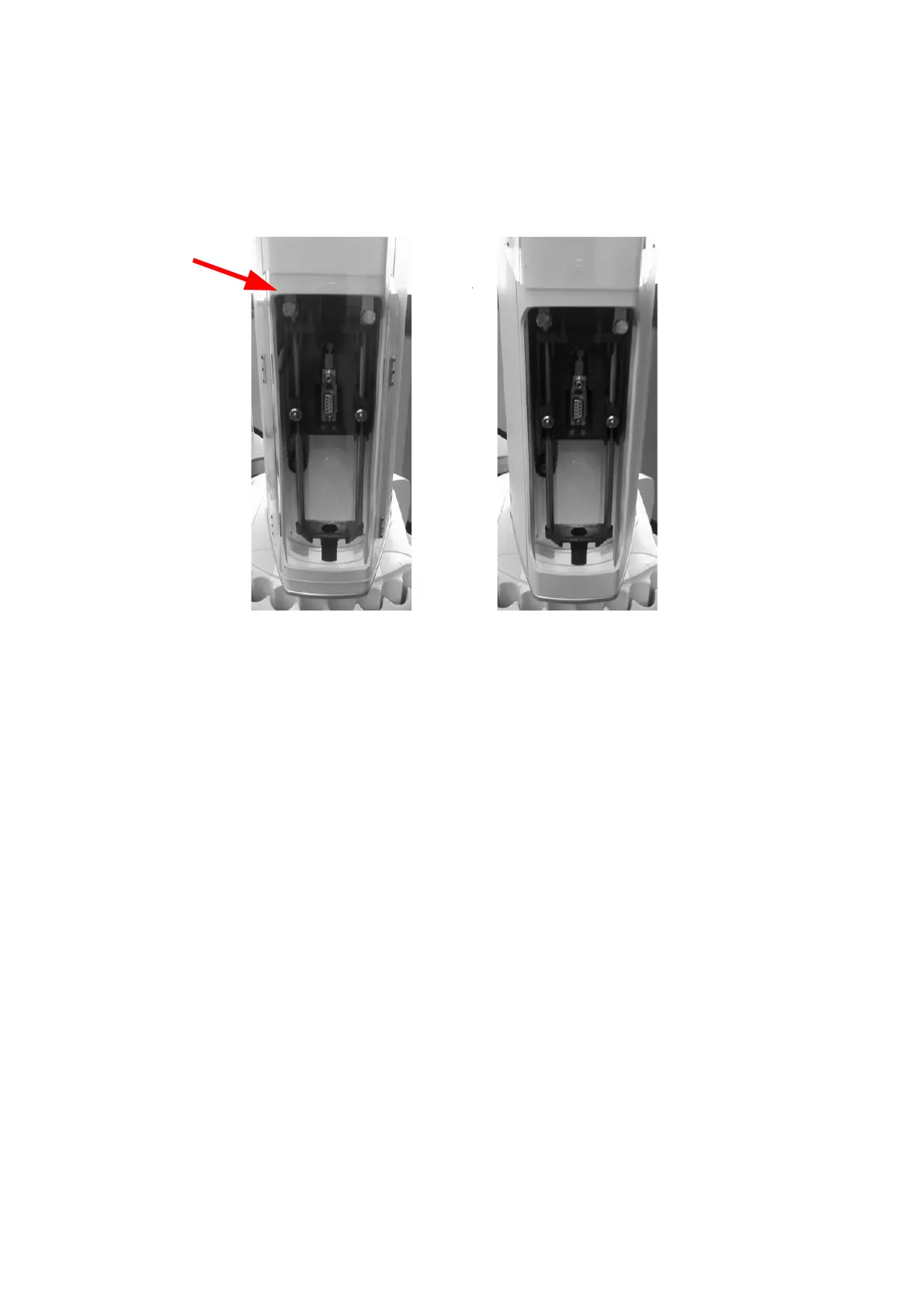

The syringe is located in the turret. To access the syringe, push up the sliding lid (red arrow in
the figure below).
Figure 9: Sliding lid down Figure 10: Sliding lid up
