HT2800T_en_c.doc Page 38 of 275

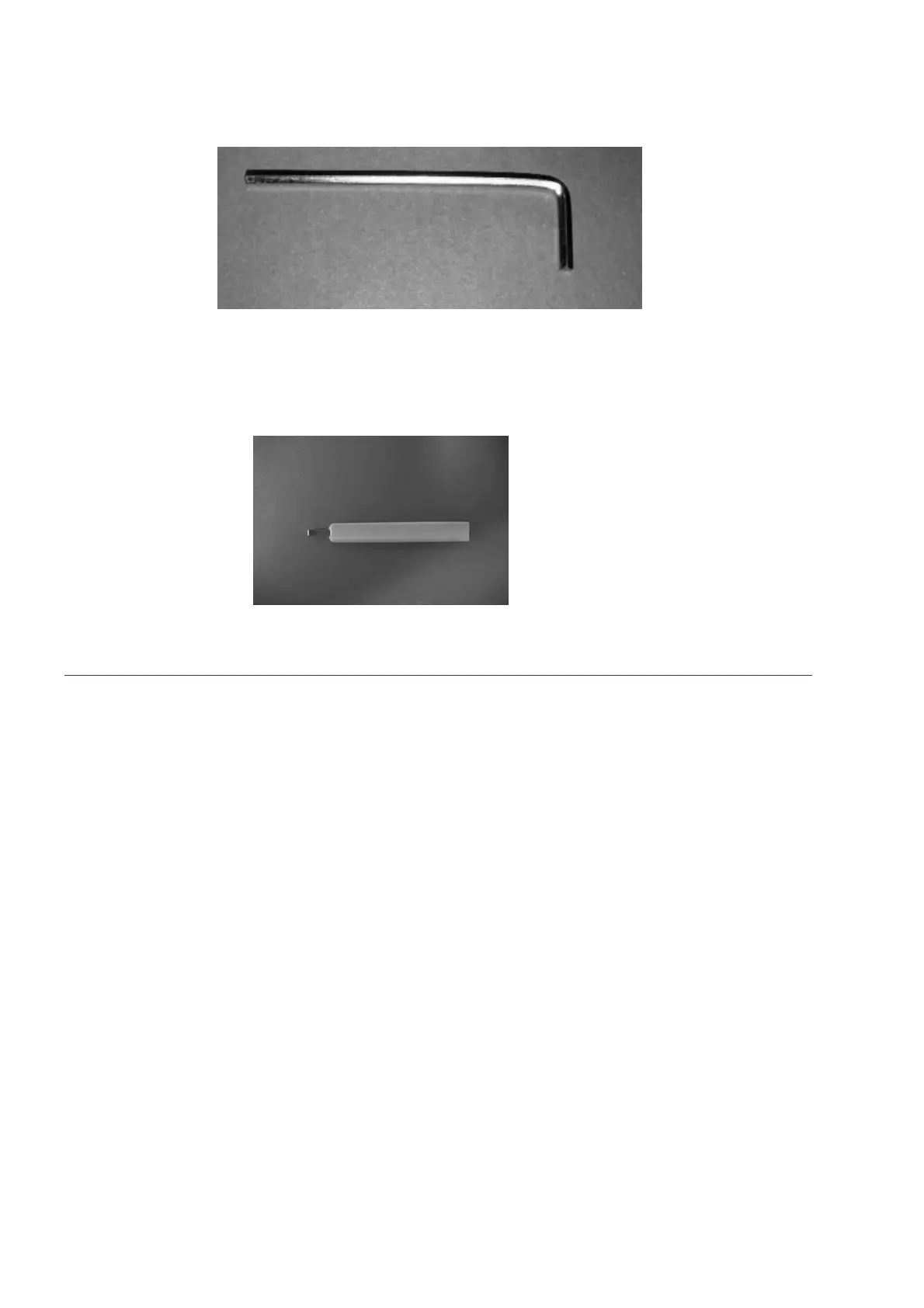

Figure 32: Allen key
3. Tweezers to extract the spacers from the oven (spacers for 6/10ml sample vials in
Headspace mode and spacers for solvent vial in Liquid mode):
Figure 33: Tweezer_type 2
2.4 Touch screen display description
2.4.1 Touchscreen use
HT2800T/HT2850T use touchscreen displays. These can be controlled using your finger tip or with a
dedicated stylus.
Only use a stylus approved by HTA as using any other stylus (or a pen or pencil), may scratch and
damage the touchscreen.
The touch screen recognizes the following actions:
•
single tap: gently press the area of interest to select a menu option or press any button area.
•
prolonged tap: gently keep the area of interest pressed for short time. It is used with the
increase/decrease buttons to increase/decrease the selected value faster.
In all the screens:
➢
the areas that can be tapped have a black background (tapping the other areas of the
screen will have no effect);
