HT2800T_en_c.doc Page 35 of 275
The plunger locker has two different faces in order to locate different kinds of syringe pistons. These
faces are indicated as “S side” and “B side”. When “S side” is required, please have “S side” facing
down; when “B side” is required, please have “B side” facing down.
In the SPME mode side B must be faced downward.

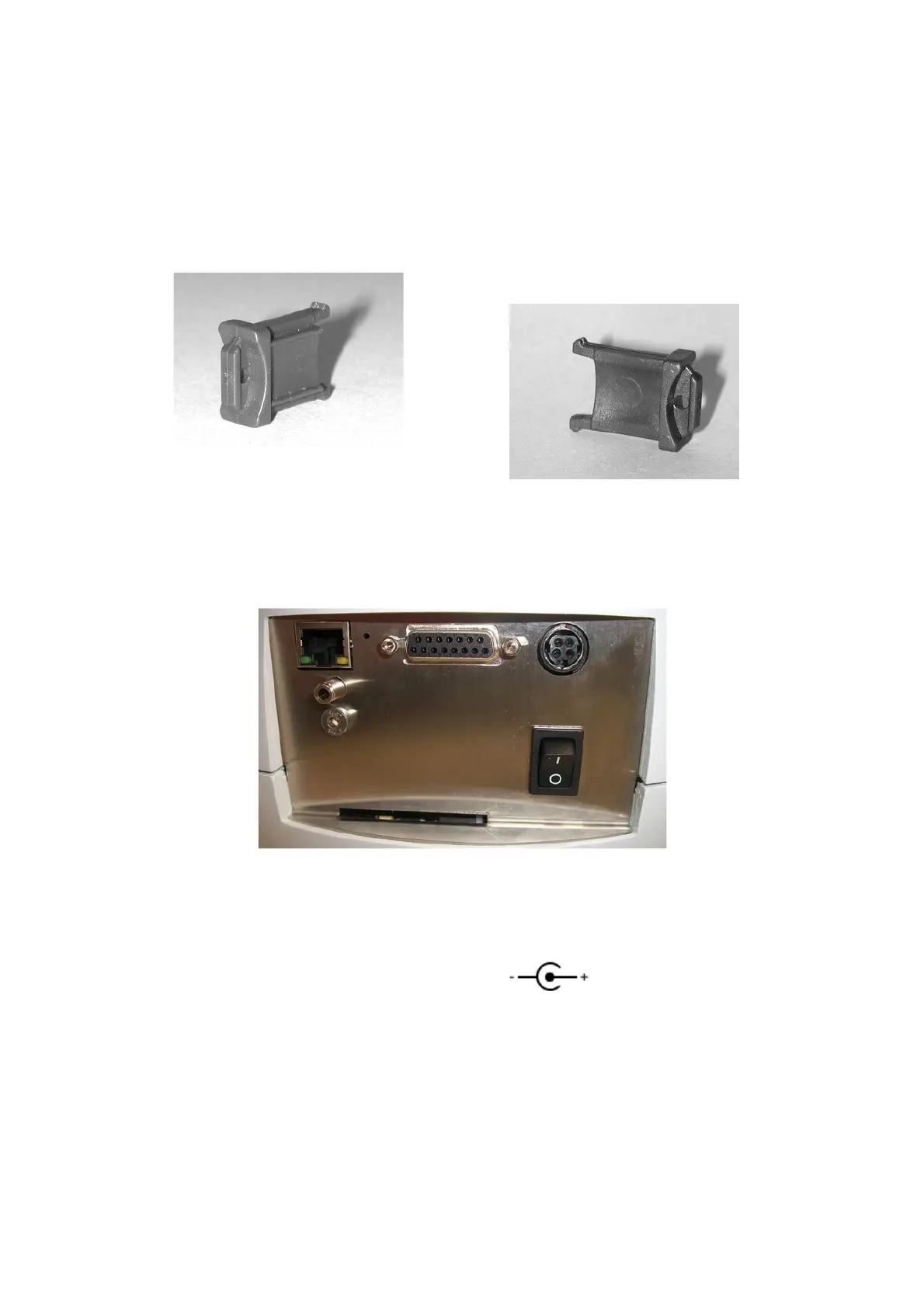

Figure 27: “S” side of the plunger locker Figure 28: “B” side of the syringe locker
2.1.3 Connection panel
On the rear of the autosampler there is the connection panel:
Figure 29: Connection panel
1 I/O: ON/OFF Power switch
2 Power cable socket: low voltage power connection (external power
supply)
3 RS232C connector: for remote control (serial connection, optional, not
present in this picture)
4 RJ45 10/100 auto-sensing connector: for remote control (Ethernet connection, standard)
5 GC connector: for other devices (GC, analyzer....)
