HTA HT2800T - Swagelok Adapter Installation (Only Forheadspace and SPME Mode)

HT2800T_en_c.doc Page 72 of 275

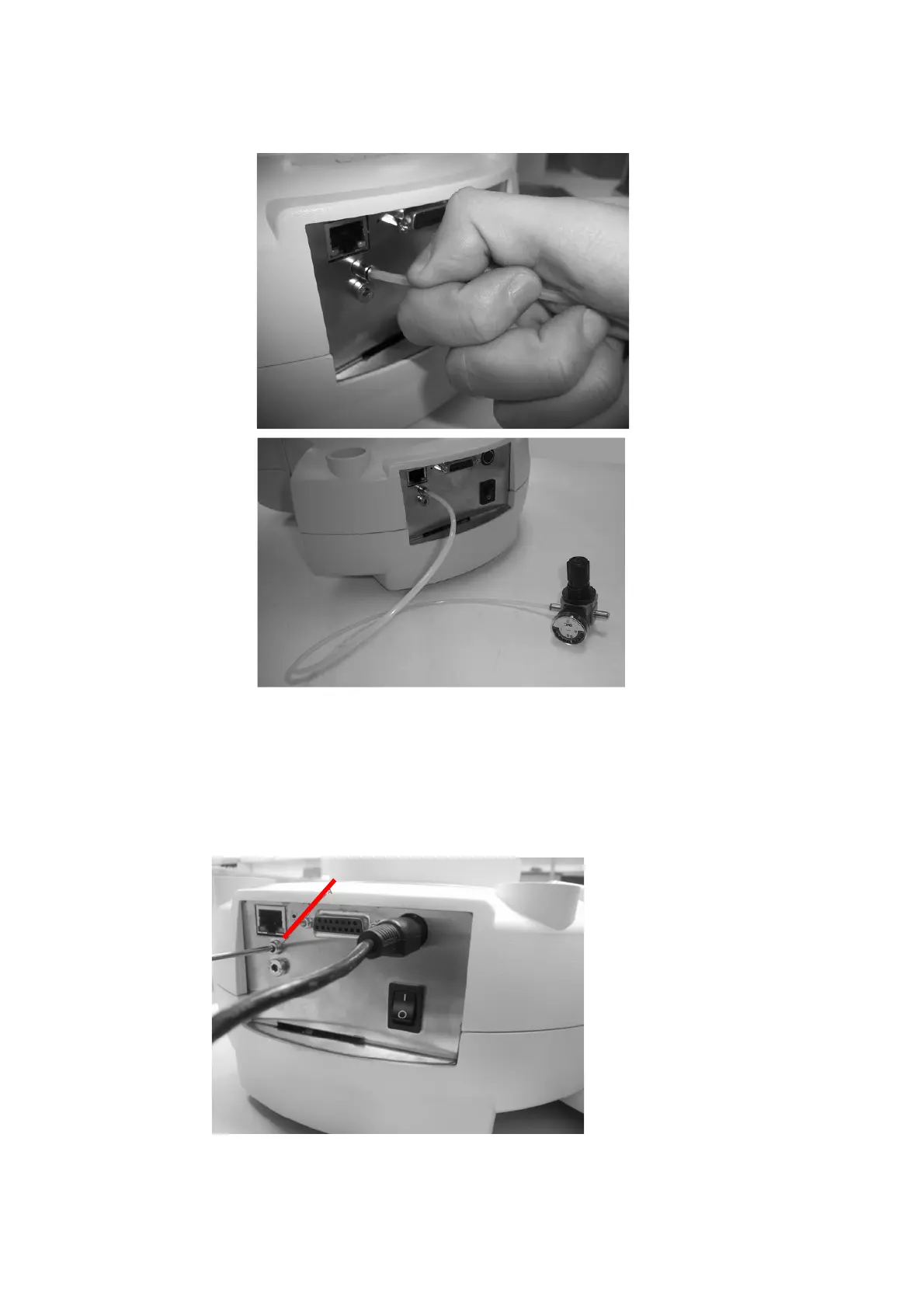

Figure 80: External pressure regulator connection
3.6.2 Swagelok Adapter installation (only forHeadspace and SPME mode)
1) Use a Hexagon key (2mm) to unscrew the Rapid fitting terminal (indicated with the letter A in the
figure below):
A
1
2
1
