HT2800T_en_c.doc Page 36 of 275
6 Service Ethernet reset: reserved for Service Representative
7 Service Emergency release: reserved for Service Representative
8 Gas connection for syringe purge: inlet 1/8”
N.B.: For further information on this purge line connection please refer to paragraph 3.3.4 “Purge
line connections (for Headspace and Fiber Cleaning Device)”.

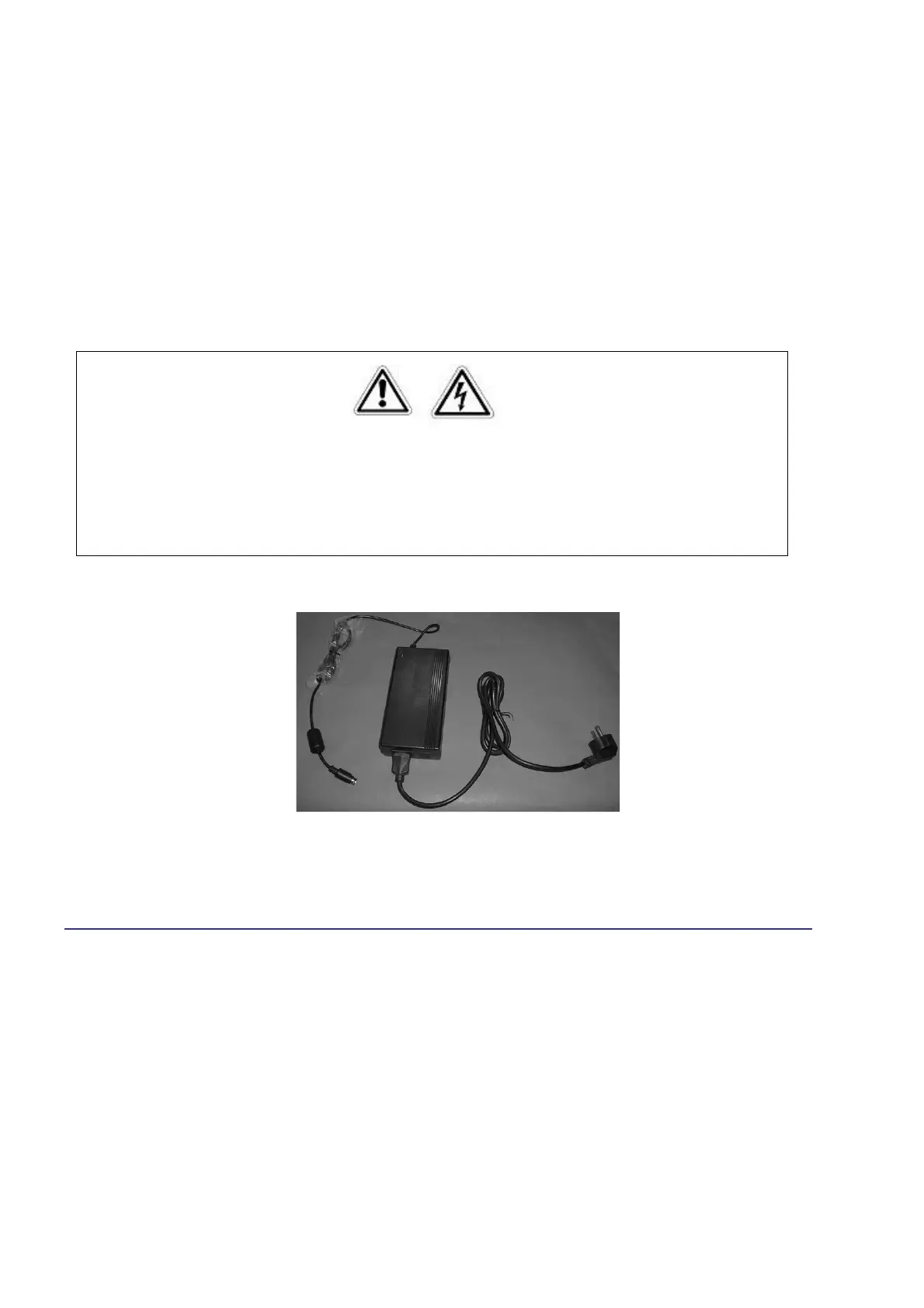

The autosampler is powered by an external power supply, as shown in the figure below:
Figure 30: External power supply
This external power supply has to be connected to socket number 2 in Figure 29.
2.2 Moving parts
These are the moving parts of the autosampler:
•
The turret can rotate 320°.
•
The needle location can move vertically by a maximum of 303mm.
•
The plunger can move by a maximum of 65mm inside the syringe.
•
The moving sample tray can be opened/closed (220mm of movement).
power
Warning
Use only the power supply system supplied with the autosampler. The use of different system
could cause damage to the equipment and/or compromise safety.
