HT2800T_en_c.doc Page 73 of 275
Figure 81: Swagelok adapter installation_1
2) Put the O.R. (indicated with the letter B in the figure below) on the new fitting (indicated with
the letter C in the figure below):

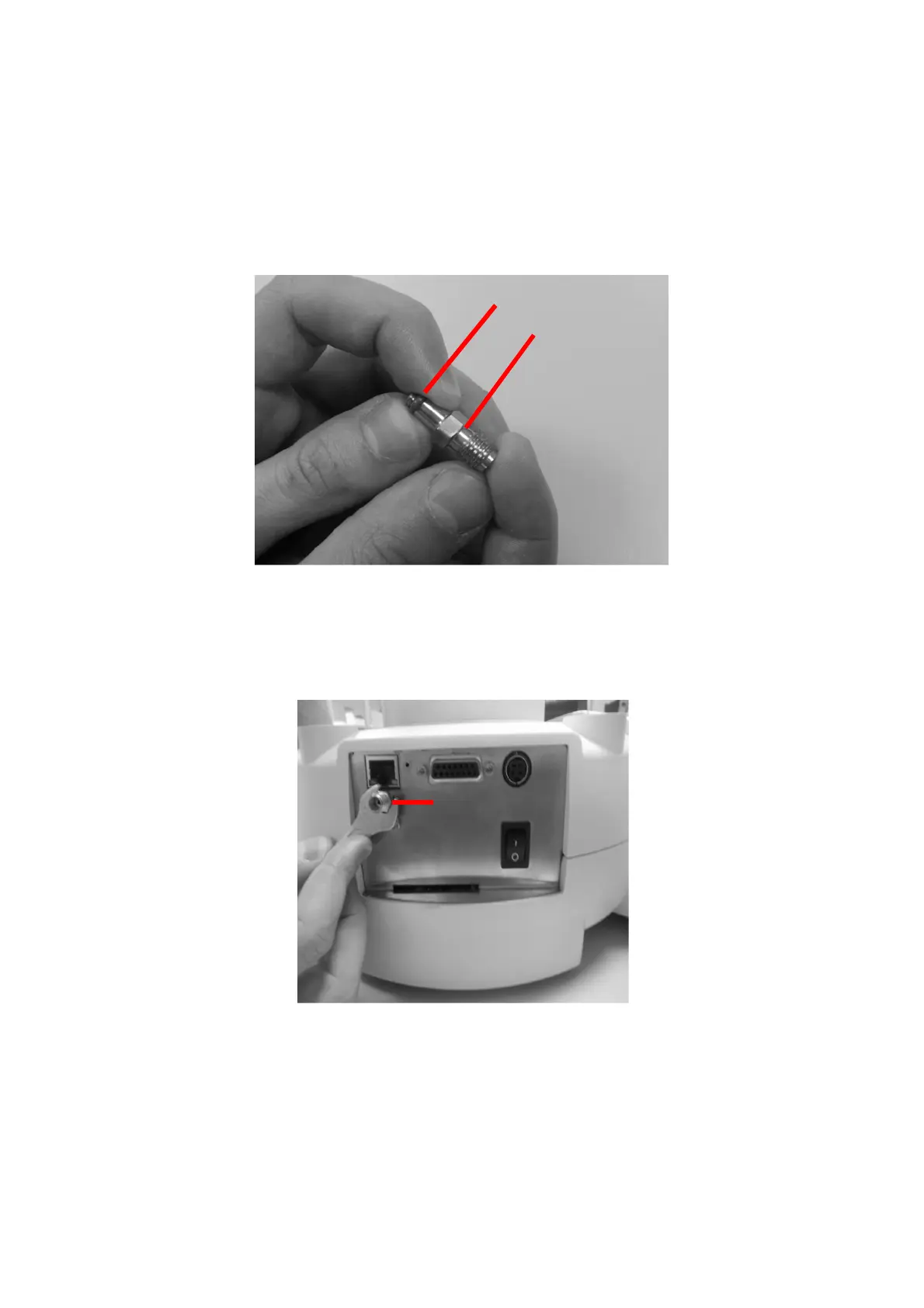

Figure 82: Swagelok adapter installation_2
3) Use an open-end wrench (8mm) to screw the fitting and the washer on the female adapter
(indicated with the letter D in the figure below):
Figure 83: Swagelok adapter installation_3
3.6.3 System integrity tool installation (only for Headspace mode)
This tool is included in the GLP Pack for HT2800T/HT2850T (see paragraph 1.7.2 “Options”).
