HTA HT2800T - Safety Lock Setting

HT2800T_en_c.doc Page 56 of 275
a b
c
2
2
1
2
3. Close the mounting plate locker, by pushing it in. The plate returns as shown in Figure
55.
3.3.2 Safety Lock setting

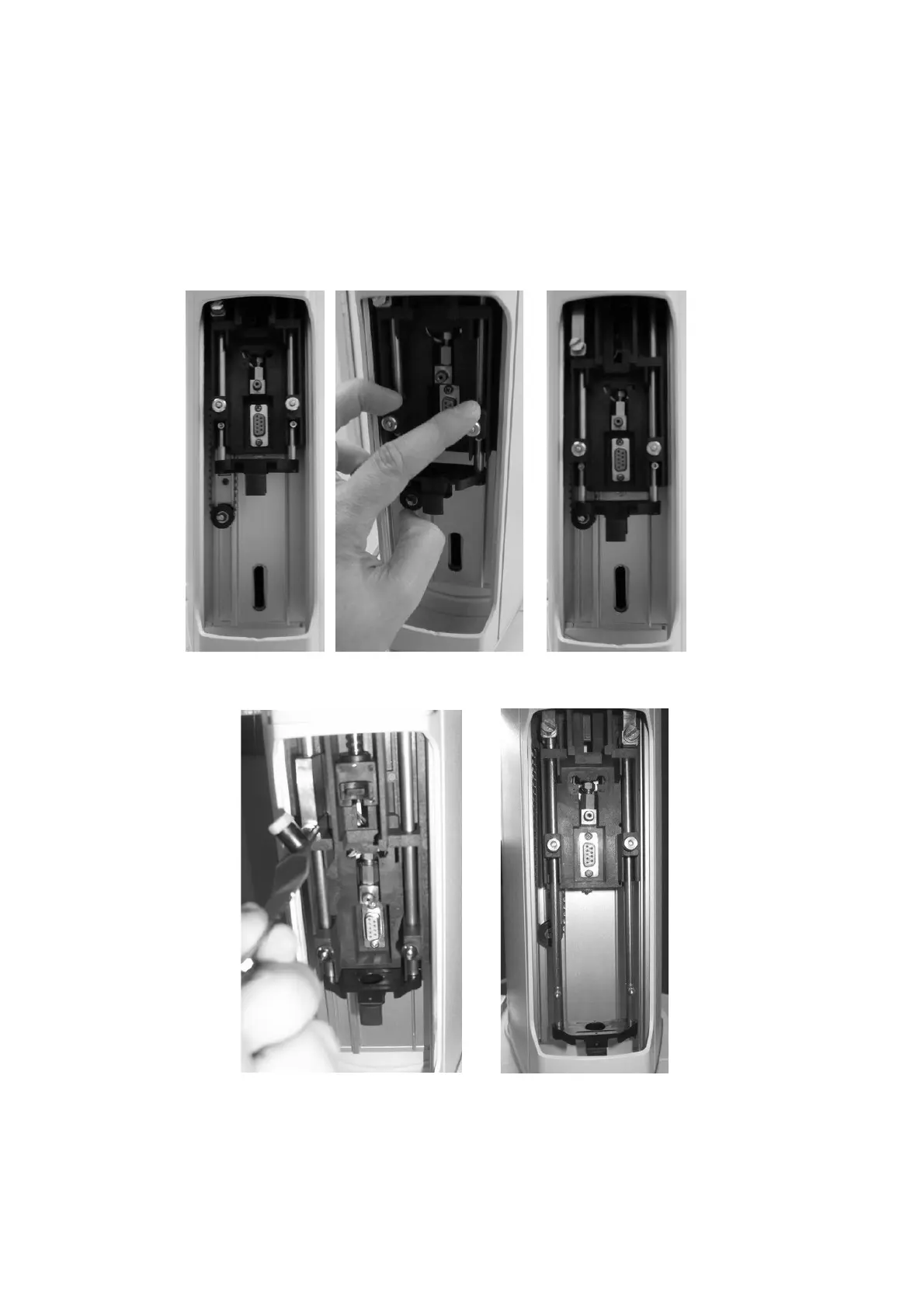

When shipped the autosampler has the safety lock as shown in the first of the following
pictures; to work correctly it should be set as shown in Figure 61:
Figure 60: Shipping position
Figure 61: Moving from shipping to operating position Figure 62: Operating position
