3.3.1.1 Unlock the autosampler from the mounting kit
1. Open the mounting plate locker, pulling it out using the syringe pointer shown in Figure
31. The opening procedure is shown in the figure below.

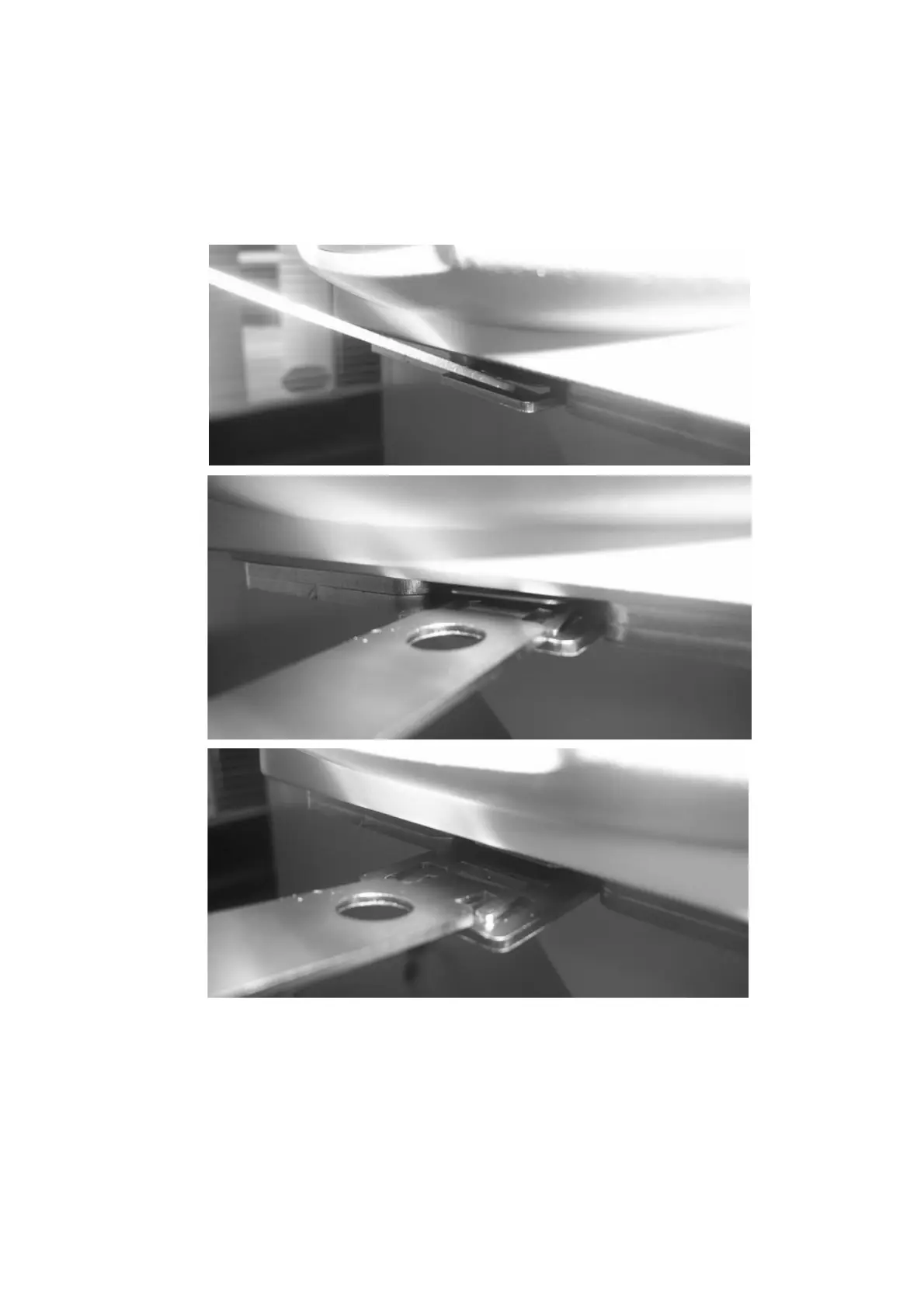

Figure 59: Mounting plate locker opening
2. Lift and remove the autosampler.
3
2
1
