4. Place the autosampler over the mounting plate, ensuring that the four rubber feet of the
autosampler (indicated with “X” in Figure 6) fit the four plate holes in Figure 55:

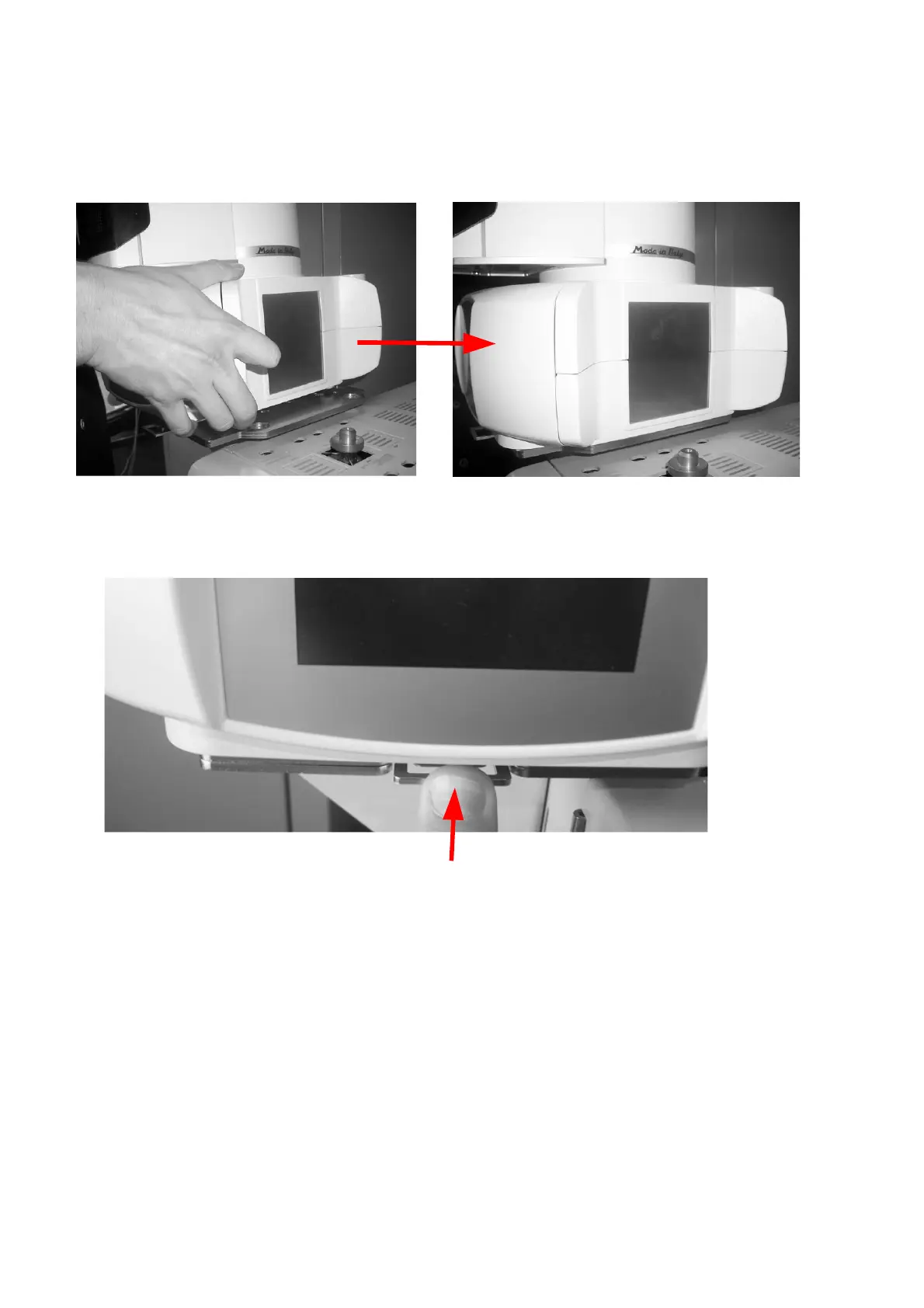

Figure 57: Autosampler mounting over the mounting plate
5. Fix the autosampler on the plate, closing the locker and pulling it in.
Figure 58: Mounting plate locker closing
