Figure 179: Syringe warmer assembly removal

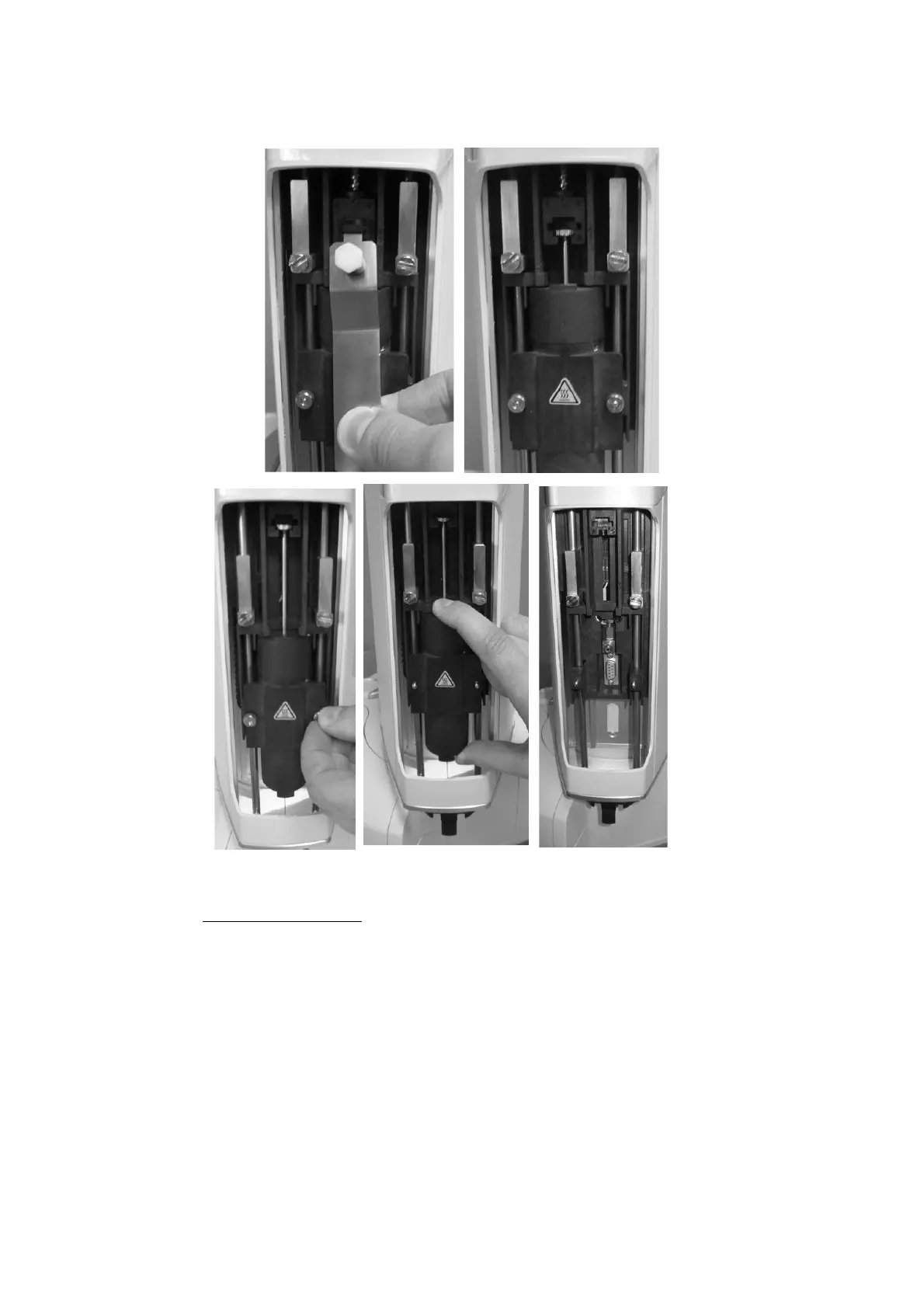

b) Install the Fiber holder. Fix the Fiber holder by aligning the holes of the Fiber holder
to the threaded inserts (figure below - a and b), then fix it with the nuts keeping the
holder pressed upwards (Figure 171 - c) and finally install the plunger locker (figure
below - d and e) ensuring that the appropriate face is used (if in doubt see 12
"Appendix B – Consumables“) .
e
d
c
b
a
