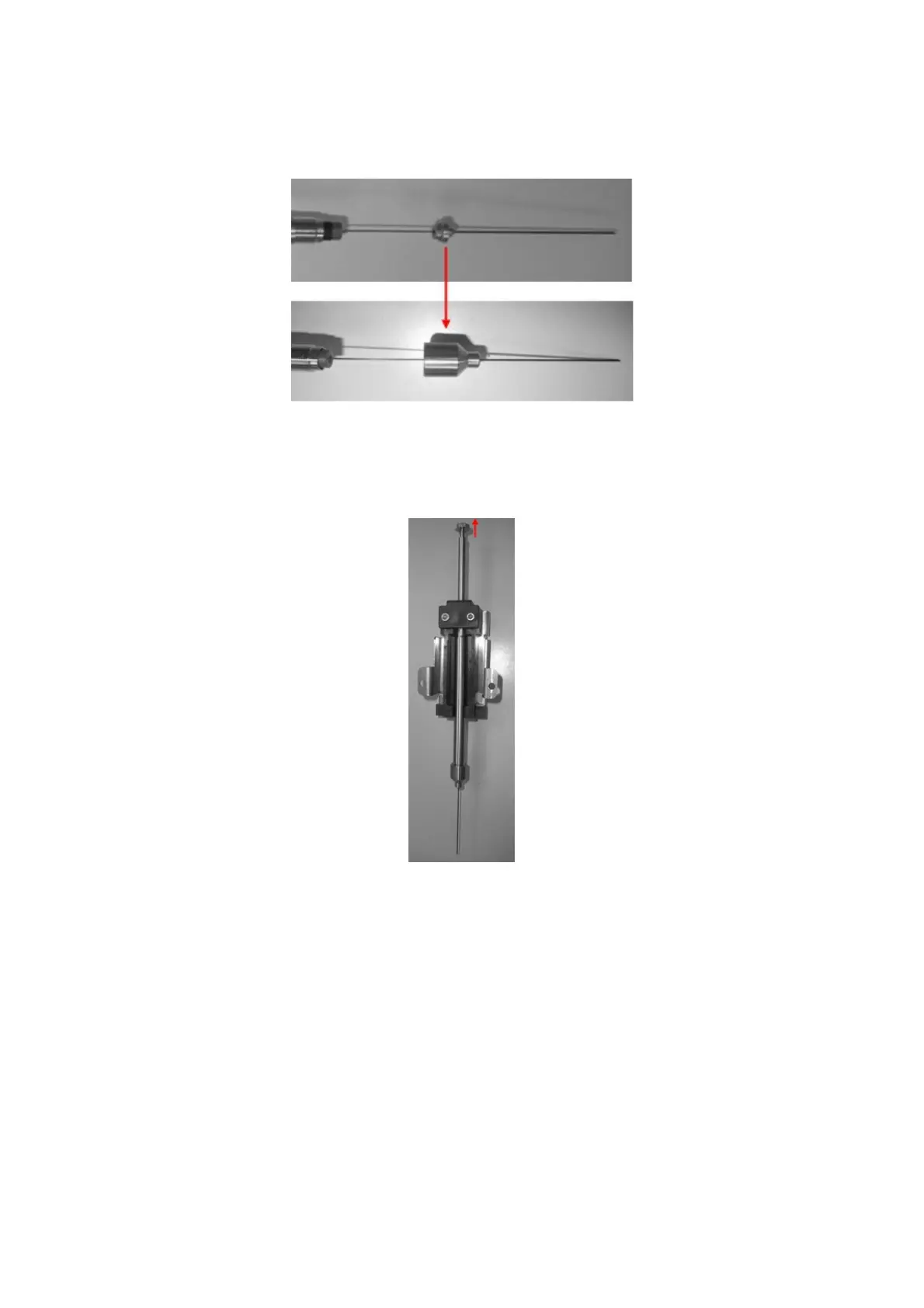

3) Replace the Fiber block in the position indicated in the figure below:
Figure 201: Fiber mounting in the Fiber holder_3
4) Raise the plunger until the Fiber block touches the Fiber holder:
Figure 202: Fiber mounting in the Fiber holder_4
5) At this point, tighten the Fiber block to the Fiber holder.
