The syringe warmer assembly and the vial locator are shown in detail in the figures below:

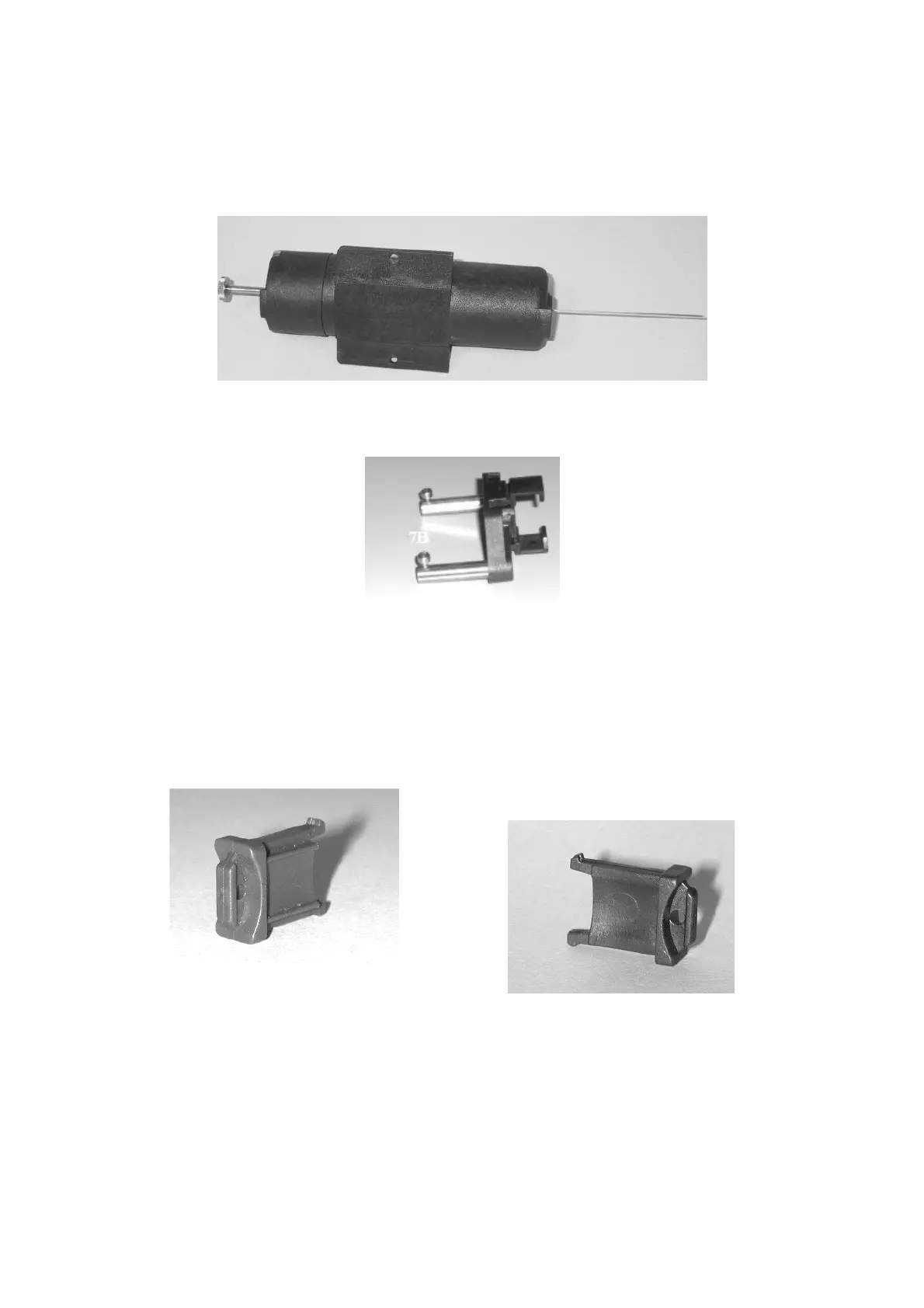

Figure 12: Syringe warmer assembly (Headspace mode)
Figure 13: Vial locator (Headspace ans SPME mode)
The plunger locker has two different faces in order to locate different kinds of syringe pistons.
These faces are indicated as “S side” and “B side”. When “S side” is required, please have “S
side” facing down; when “B side” is required, please have “B side” facing down.
In the Headspace mode side B must be faced downward.
Figure 14: “S” side of the plunger locker Figure 15: “B” side of the syringe locker
