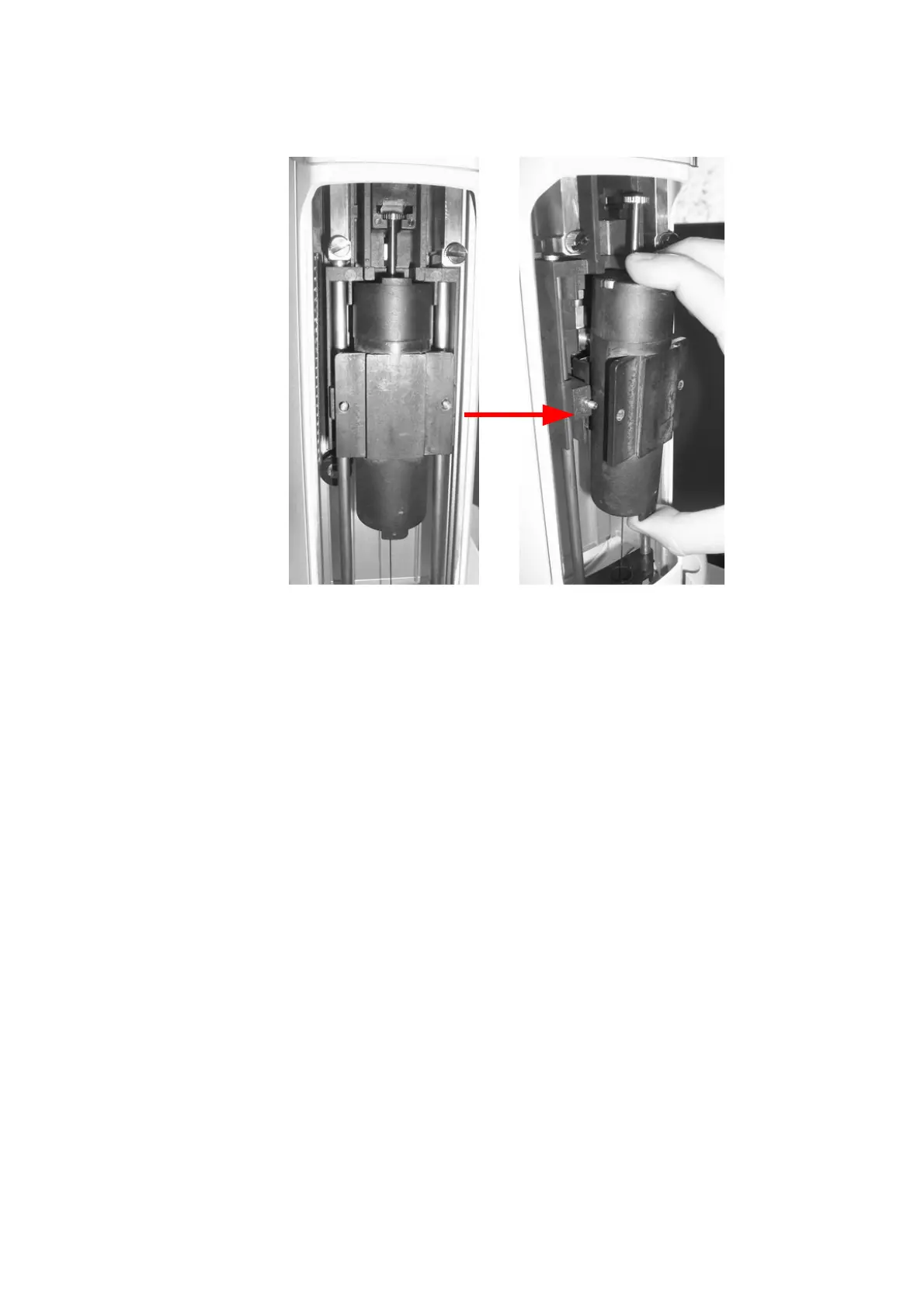

Figure 103: Syringe warmer assembly removal
Then proceed with the syringe replacement as described in paragraph 9.1 . 5
“Syringe replacement in the syringe warmer assembly (Headspace
mode)” and proceed to point “f)“.
f) Mount the syringe warmer assembly with the new syringe installed in the syringe
location. Take care to insert the needle inside the vial locator and then plug the syringe
warmer assembly into the D-shape connector (number 5 in Figure 11). Insert the plunger
in the plunger holder (number 2 in Figure 11).
