Table 1-4 Set/Delete VLAN description character string
Operation Command
Set the description character string for VLAN
description string
Restore the default description of current VLAN
undo description
By default, VLAN des cter string is VLAN ID of the VLAN, e.g. VLAN 0001.
1.3 Display and Debug VLAN
fter the above configuration, execute display command in any view to display the
running of the VLAN configuration, and to verify the effect of the configuration.
Table 1-5 Display and debug VLAN
cription chara
A
Operation Command
Display the related information about display vlan[ vlan_id | all | static |
VLAN dynamic ]
1.4 VLAN Configuration Example
I. N
Create VLAN2 and VLAN3. Add Ethernet port 0/1 and Ethernet port 0/2 to VLAN2 and
dd Ethernet 0/3 and Ethernet 0/4 to VLAN3.
etworking requirements
a
II. Networking diagram
VLAN3
Switch
E0/3E0/2
VLAN2
VLAN3
E0/4
E0/1
Switch
VLAN3
Switch
E0/3E0/2
VLAN2
VLAN3
E0/4
E0/1
Switch

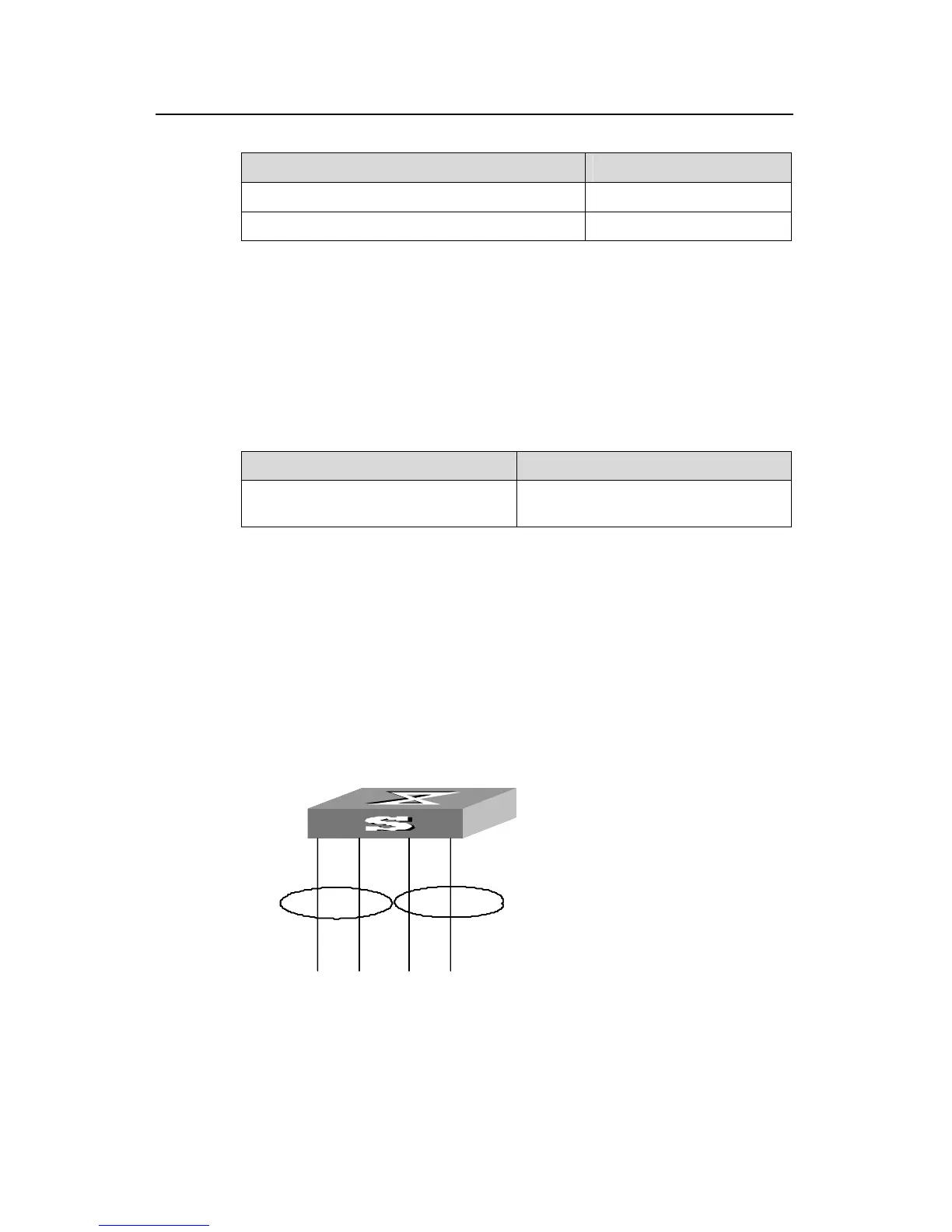

Figure 1-1 VLAN configuration example
III. Configuration procedure
# Create VLAN 2 and enters its view.
