l In a single homing scenario, an ONU is connected to one OLT. The OLT provides two
passive optical network (PON) ports. An ONU provides two PON ports for upstream
transmission, and the backbone fiber, optical splitter, and distribution fiber are configured
for redundancy backup. In this scenario, PON type C single-homing protection can be
configured to ensure service reliability.

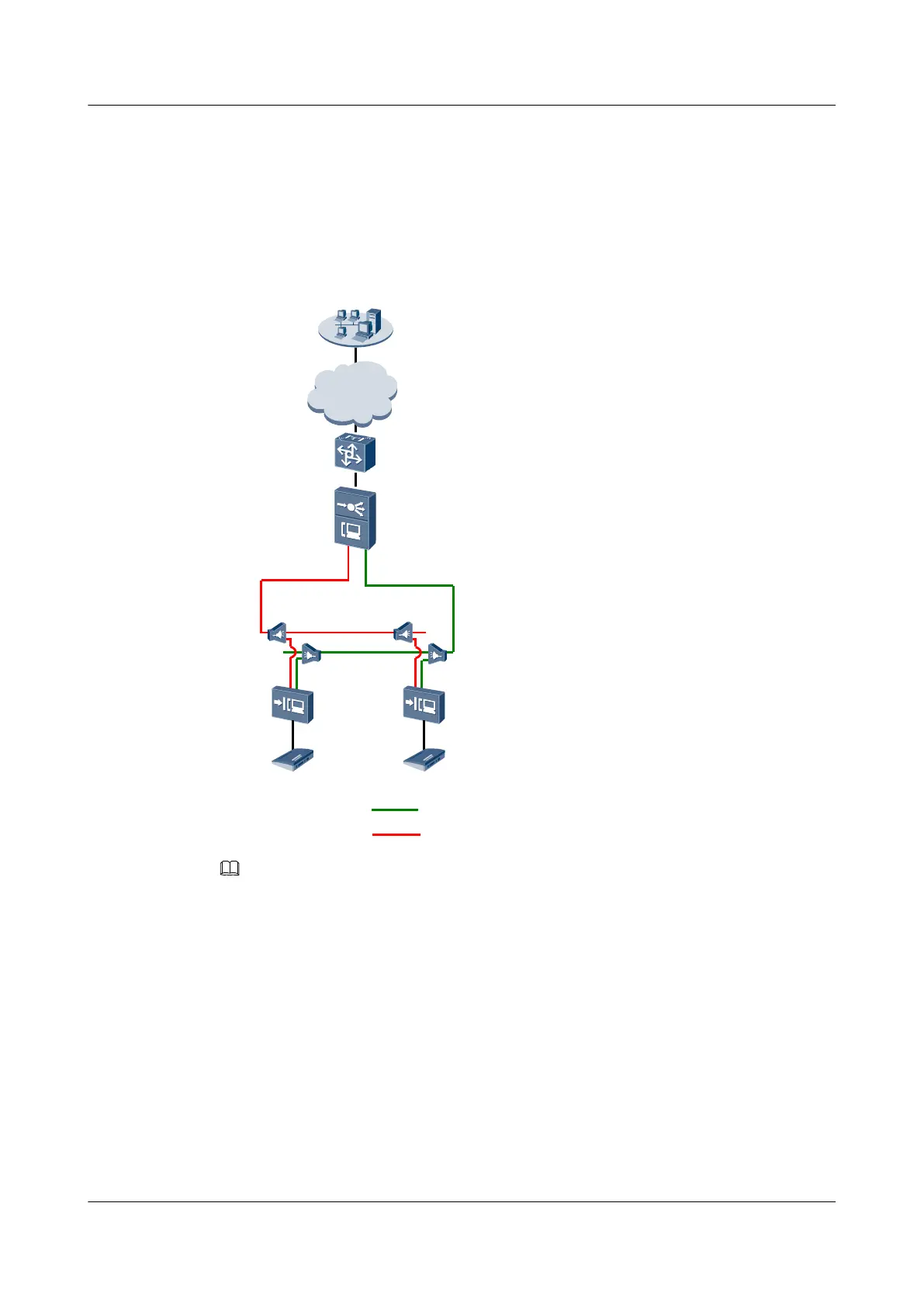

Figure 17-5 Example network for configuring automatic transmission of site information in the
electrical power system over Ethernet
Splitter
Active Link
Standby Link
OLT
ONU_A ONU_B
OSN/PTN
Master station system
Terminal unit A Terminal unit B
Transmission
NOTE
In this example, an MA5621 is used as the ONU.
Data Plan
Table 17-5 provides the OLT data plan, and Table 17-6 provides the ONU data plan.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
17 Electrical Service Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1816
